Saab 9000 - Low Fuel Level

64 Technical Description

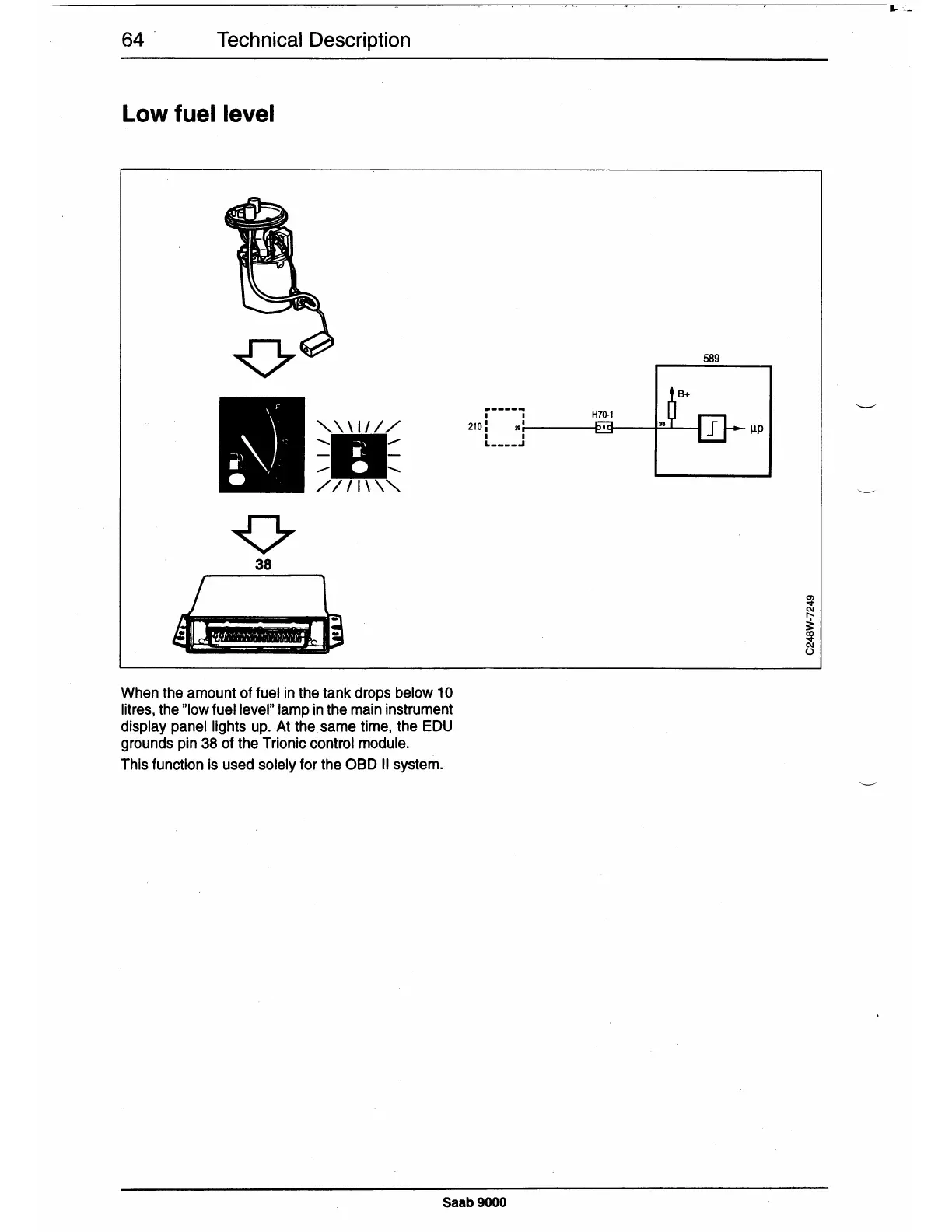

Low fuel level
::n', I//-:::
.,,,.. ........
///1\\"'-.
38
When the amount of fuel in the tank drops below 10
litres, the "low fuel level" lamp in the main instrument
display panel lights up. At the. same time, the EDU
grounds pin 38 of the Trionic control module.
This function is used solely for the 080 II system.
i----i
210: 29.-
1
----D q..----t~--t
I I
L----J
Saab9000
589
µp
