Saab 9000 - ECM Power Supply

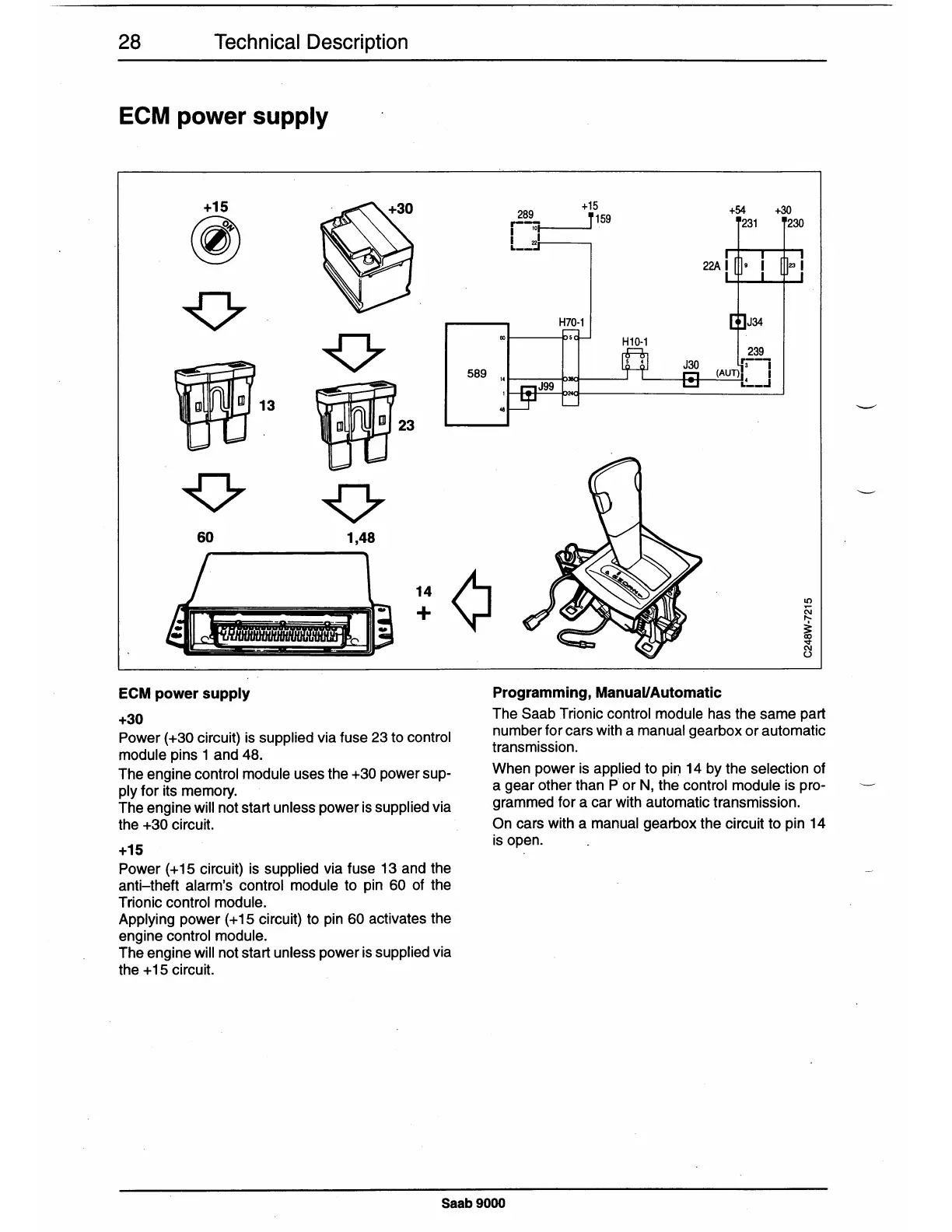

28 Technical Description
ECM power supply
+15
@)
◊
◊
ffl§1
13
~23
589
◊ ◊
60
1,48
14
+
¢
ECM power supply
+30
Power (+30 circuit) is supplied via fuse 23 to control
module pins 1 and 48.
The engine control module uses the +30 power sup-
ply for its memory.
The engine will not start unless power is supplied via
the +30 circuit.
+15
Power ( + 15 circuit) is supplied via fuse 13 and the
anti-theft alarm's control module to pin 60 of the
Trionic control module.
Applying power (+15 circuit) to pin 60 activates the
engine control module.
The engine will not start unless power is supplied via
the
+ 15 circuit.
289 +
15
r-------1f159
I ,01
l__22---•--
H70-1
H10-1
Programming, Manual/ Automatic
+54
231
+30
230
The Saab Trionic control module has the same part
number for cars with a manual gearbox or automatic
transmission.
When power is applied to pirJ 14 by the selection of
a gear other than P or N, the control module is pro-
grammed for a car with automatic transmission.
On cars with a manual gearbox the circuit to pin 14
is open.
Saab 9000
