Saab 9000 - Diagnostic Trouble Codes P0110, P0112, P0113

Fault diagnosis 105

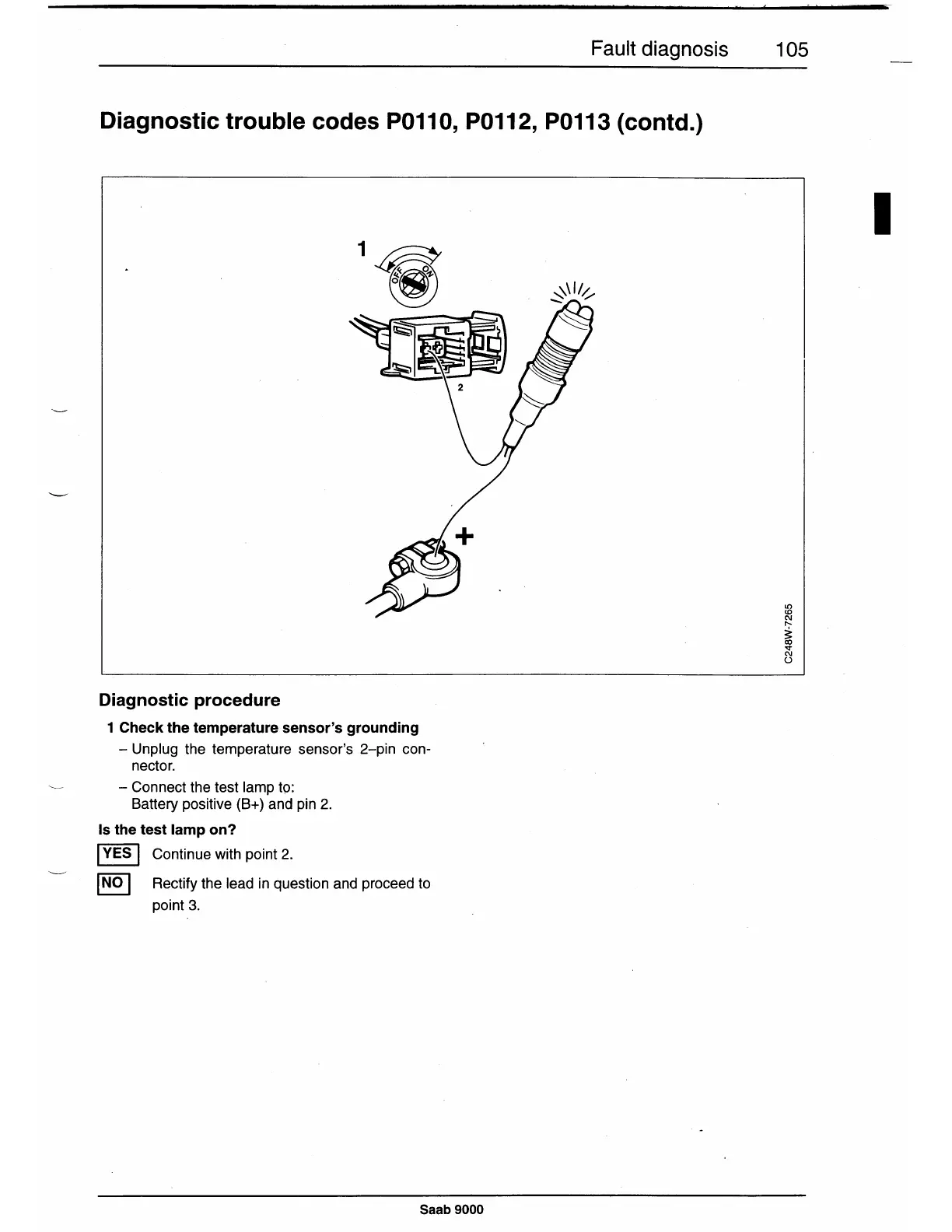

Diagnostic trouble codes P0110, P0112, P0113 (contd.)
Diagnostic procedure
1 Check the temperature sensor's grounding
- Unplug the temperature sensor's 2-pin con-
nector.
- Connect the test lamp to:
Battery positive (B+) and pin 2.
Is the test lamp on?
I YES I Continue with point 2.
I NO I Rectify the lead in question and proceed to
point 3.
Saab 9000
