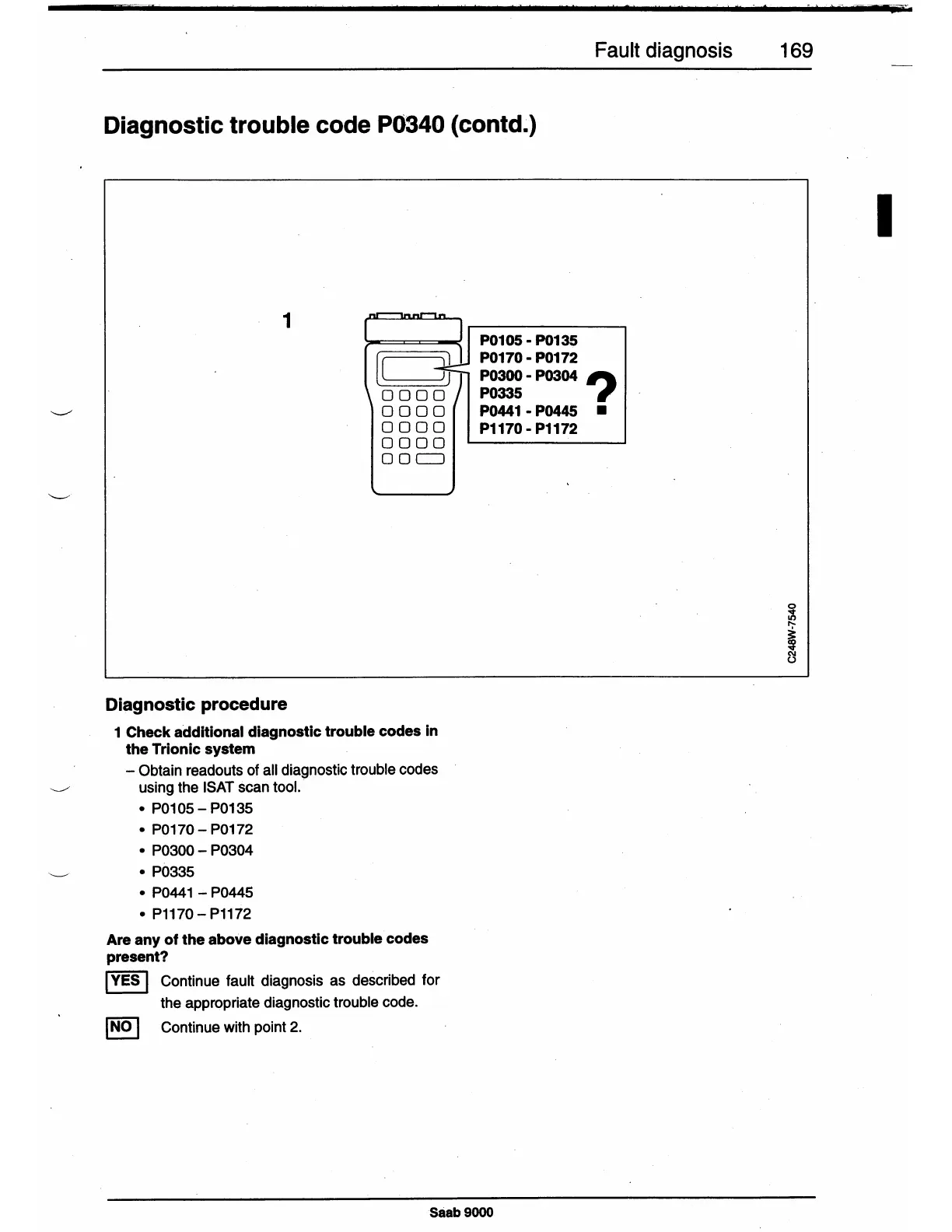

Fault diagnosis 169
Diagnostic trouble code POS40 (contd.)
1
-
I
~
P0105- P0135
[I
If:=::?
DODO
P0335
DODO
0000
0000
□
Dc=J
Diagnostic procedure
1 Check additional diagnostic trouble codes in
the Trionic system
- Obtain readouts of all diagnostic trouble codes
using the ISAT scan tool. ·
• P0105- P0135
• P0170- P0172
• P0300 - P0304
• P0335
• P0441 - P0445
• P1170- P1172
Are any of the above diagnostic trouble codes
present?
I
YES
I
Continue fault diagnosis as described for
the appropriate diagnostic trouble code.
I
NO
I
Continue with point 2.
P0441 - P0445
P1170 - P1172
