18 · Technical Description

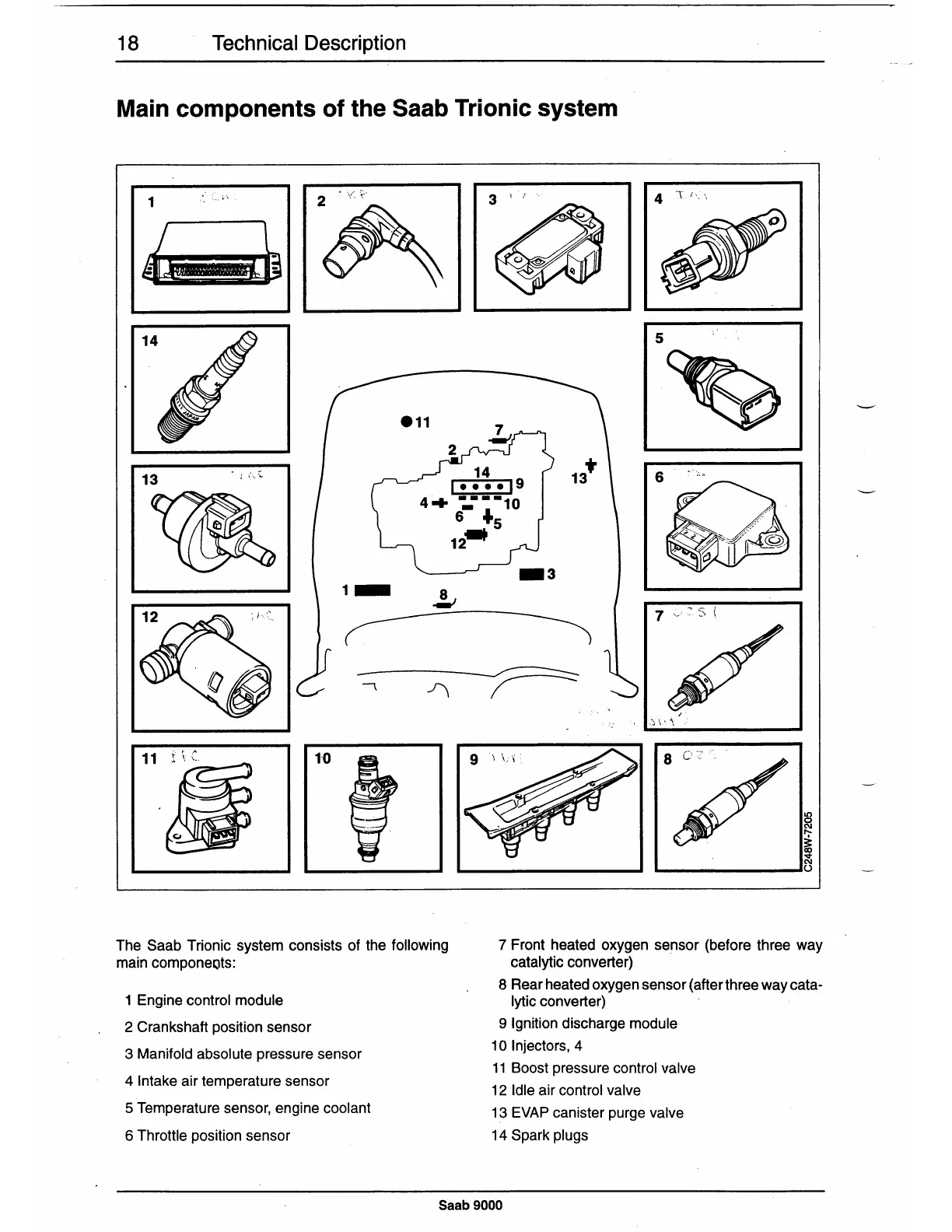

Main components of the Saab Trionic system
1
.~ <., ,., .
..
,,.
.--.
Y~
-r-
13
1-
1-0
The Saab Trionic system consists of the following
main compone0ts:
1 Engine control module
2 Crankshaft position sensor
3 Manifold absolute pressure sensor
4 Intake air temperature sensor
5 Temperature sensor, engine coolant
6 Throttle position sensor
4
~l
t•. '-
5
6
-
~~
\
•.
\
9
\
Vi .
7 Front heated oxygen sensor (before three way
catalytic converter)
·
8 Rear heated oxygen sensor (after three way cata-
lytic converter)
9 Ignition discharge module
1
o
Injectors, 4
11 Boost pressure control valve
12 Idle air control valve
13 EVAP canister purge valve
14 Spark plugs
