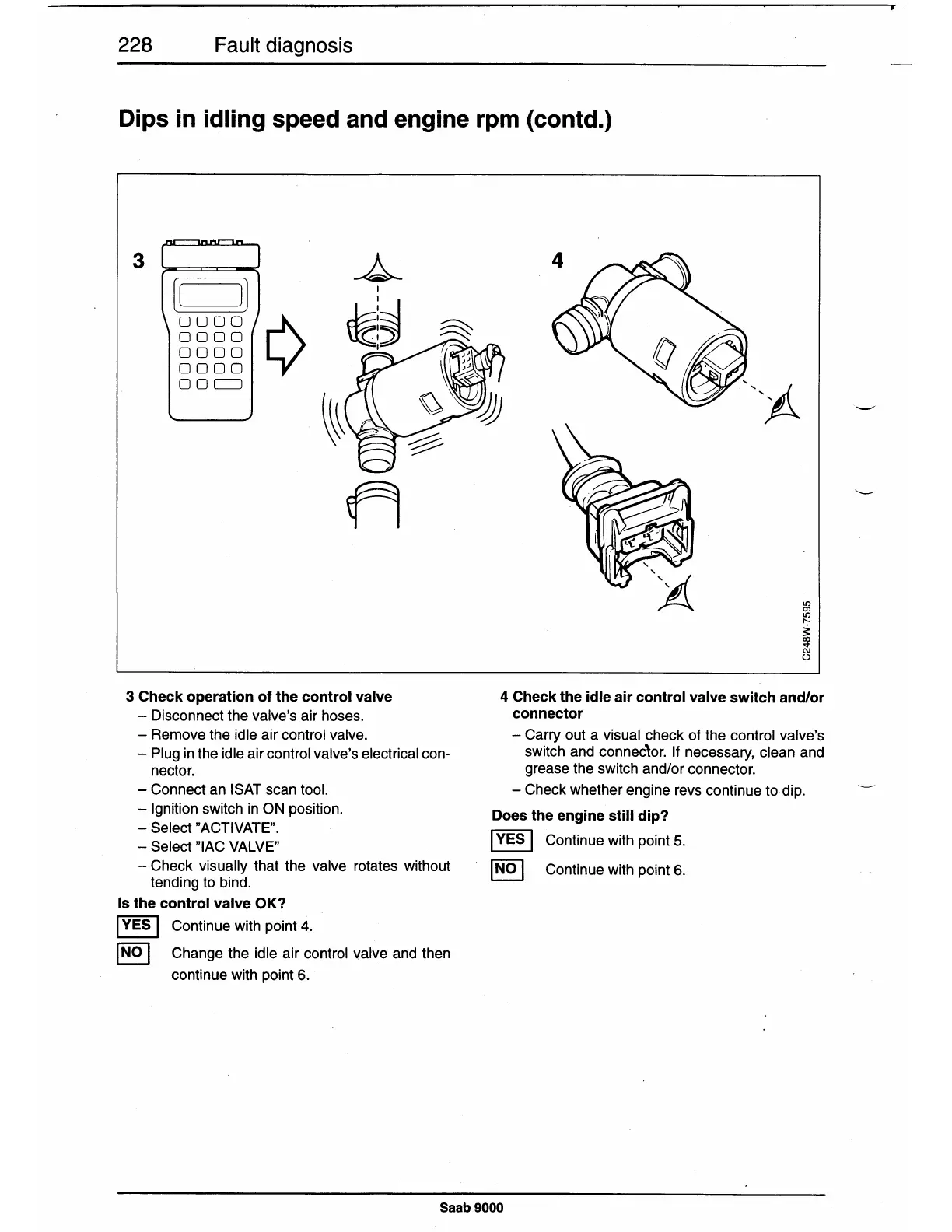

228 Fault diagnosis
Dips in idling speed and engine rpm (contd.)
3
~
[[
l]
I
~!~
0000
◊
0000
0000
0000
OOc:::::J
3 Check operation of the control valve
- Disconnect the valve's air hoses.
- Remove the idle air control valve.
- Plug in the idle air control valve's electrical con-
nector.
- Connect an ISAT scan tool.
- Ignition switch in ON position.
- Select "ACTIVATE".
- Select "IAC VALVE"
- Check visually that the valve rotates without
tending to bind.
Is the control valve OK?
I
YES
I
Continue with point 4.
I
NO
I
Change the idle air control valve and then
continue with point 6.
4
---A
10
O>
10
,.._
~
'<t
C\I
0
4 Check the idle air control valve switch and/or
connector
- Carry out a visual check of the control valve's
switch and connec,or. If necessary, clean and
grease the switch and/or connector.
- Check whether engine revs continue to dip.
Does the engine still dip?
I
YES
I
Continue with point 5.
I
NO
I
Continue with point 6.
