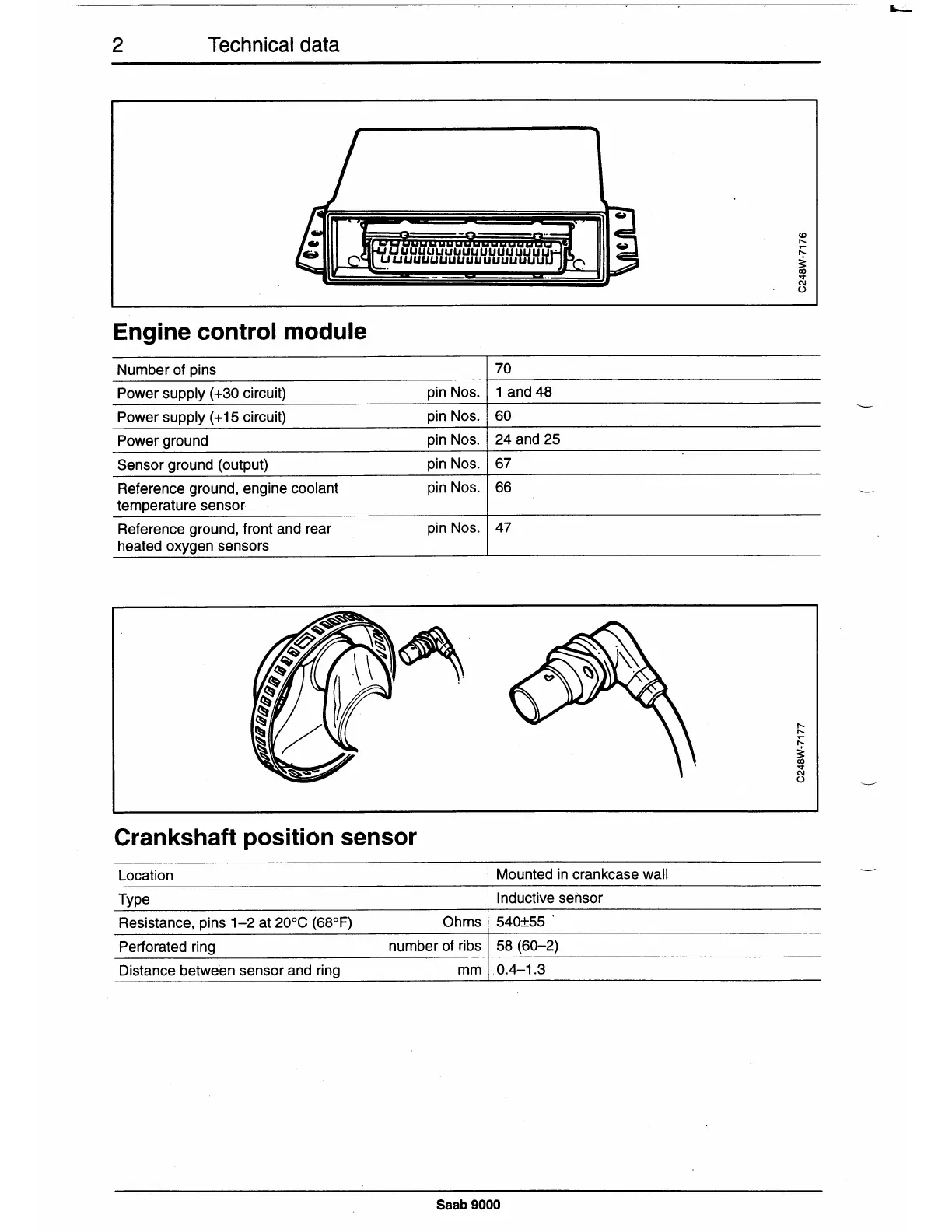

2 Technical data
Engine control module
Number of pins
70
Power supply
(+30
circuit)
pin Nos.
1
and
48
Power supply
(+15
circuit)
pin Nos.
60
Power ground
pin Nos.
24
and
25
Sensor ground ( output)
pin Nos.
67
Reference ground, engine coolant
pin Nos.
66
temperature sensor
Reference ground, front and rear
pin Nos.
47
heated oxygen sensors
Crankshaft position sensor
Location
Mounted in crankcase wall
Type
Inductive sensor
Resistance, pins
1-2
at
20°c (68°F}
Ohms
540±55 ·
Perforated ring
number of ribs
58 (60-2)
Distance between sensor and ring
mm
.0.4-1.3
