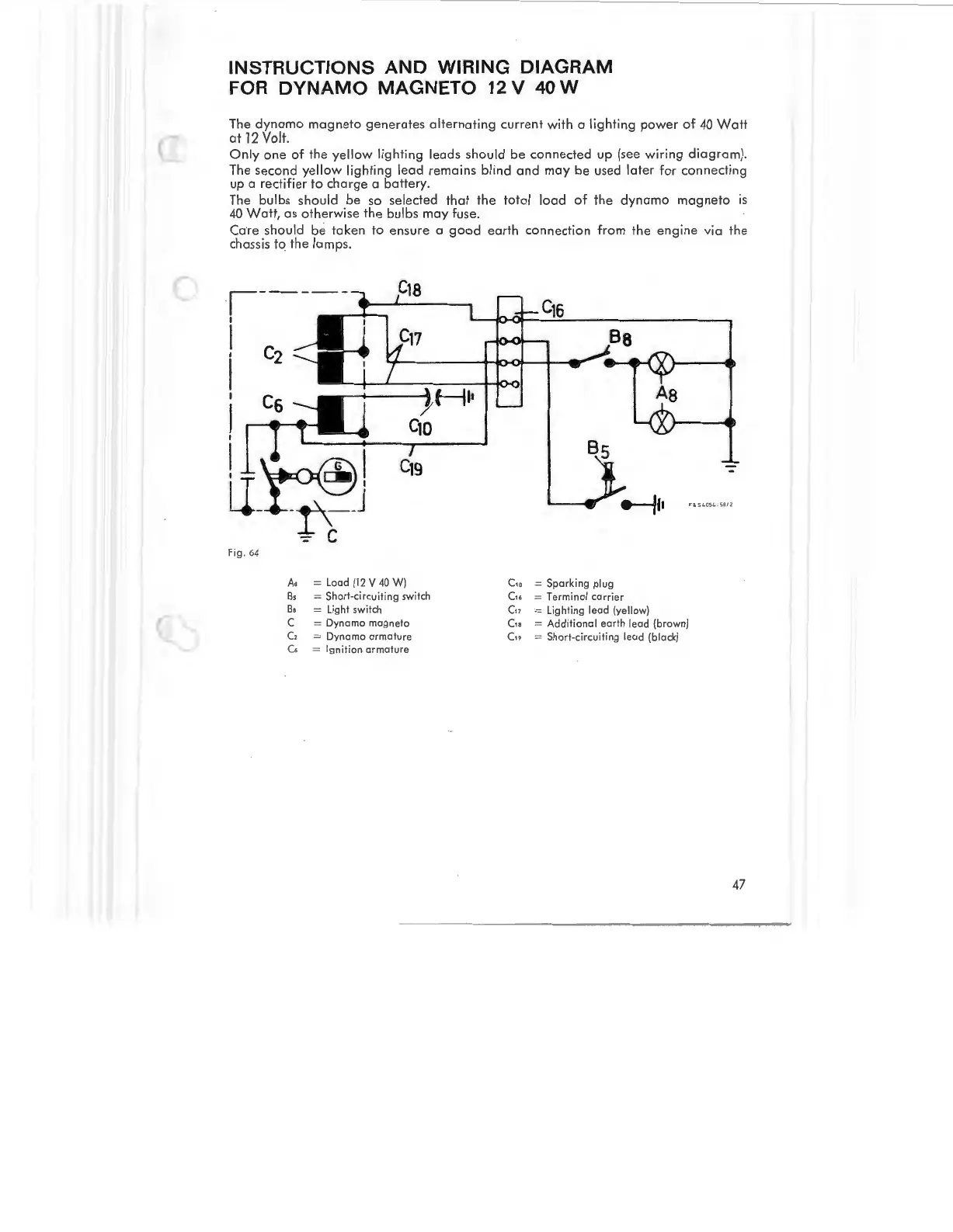

INSTRUCTIONS AND WIRING DIAGRAM
FOR DYNAMO MAGNETO 12 V 40 W
The dynamo magneto generates alternating current with a lighting power of 40 Watt
at 12 Volt .
Only one of the yellow lighting leods s hould be connected up (see wiring diagram).
Th e second yellow lighting le ad remains blind and may be used later for connecting
up a rectifier to charge a battery.
The bulbs should be so selected that the total load of the dynamo magneto is
40 Watt , as otherwise the bulbs may fuse .
Care should be taken to ensure a good earth connection from the engine via the
cha ssis to the lamps .
Fig. 64
As = Lo ad (12 V 40 W)
Bs = Sho rt -circuiting swit ch
Bs = Li g ht sw it ch
C
= Dynamo magneto
C2 = D ynamo arma tu re
C6
= Ignition ar m atur e
(, = Sparking plug
Cu = Terminal c arr ier
Cn = Ligh ting le ad (ye ll ow)
(,. = Ad di t ional earth le ad (brown)
(, = Short-cir cu itin g lead (block)
47
