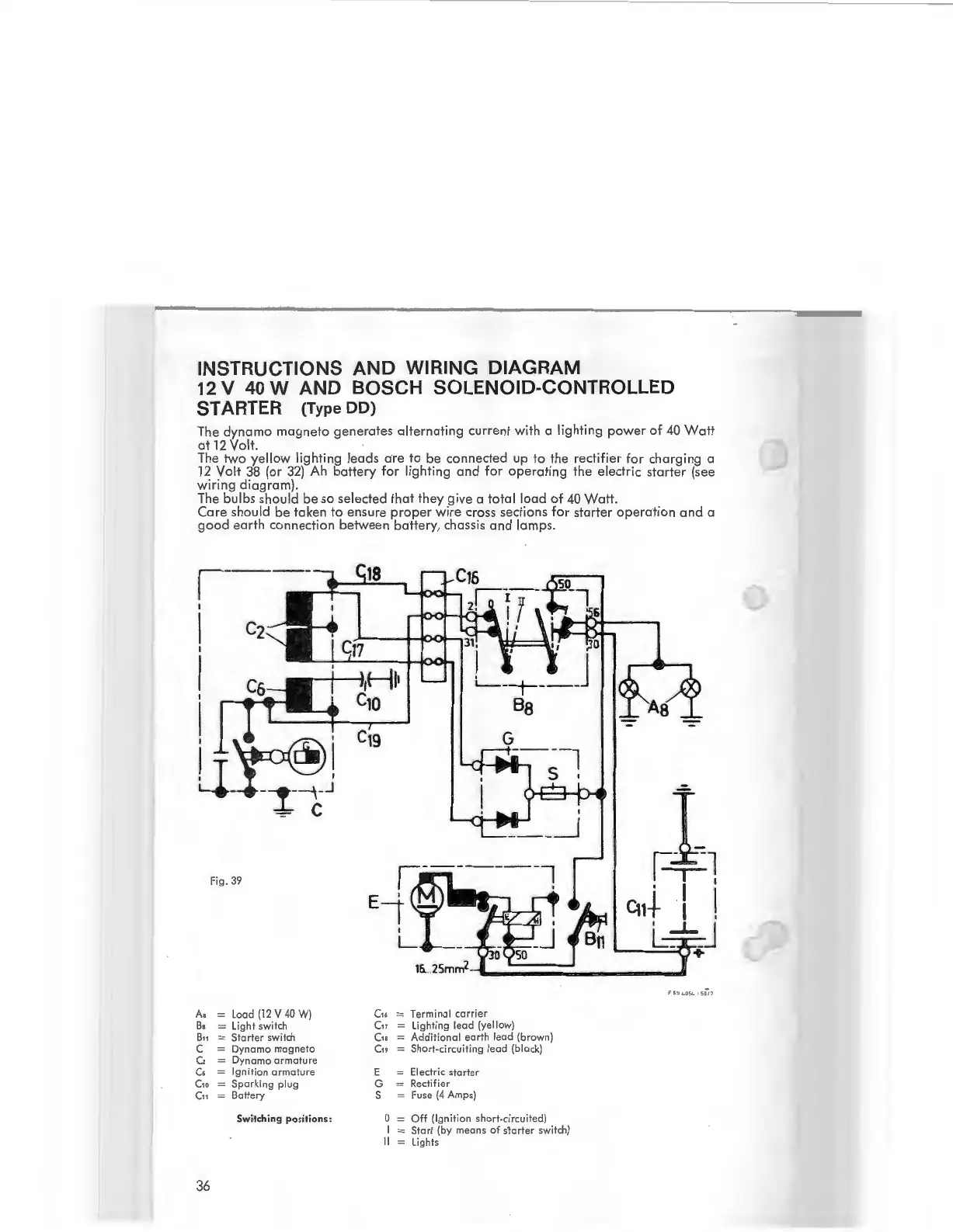

INSTRUCTIONS AND WIRING DIAGRAM
12 V 40 W AND BOSCH SOLENOID-CONTRO LLED
STARTER (Type DD)
Th e dynamo magneto generates alternating curr ent with a lighting power of 40 Watt
at 12 Volt.
The
two yellow lighting leads are to be connected up to the rectifier for charg ing a
12 Volt 38 (or
32) Ah battery for lighting and for operating the electric starter (see
wiring diagram) .
The bulbs
should be so selected that they give a total load of 40 Watt .
Car e should be taken to ensure prope r wire cross sections for starter operation and a
good earth connection between battery, chassis and lamp s.
Fig. 39
Aa = L oad (12 V 40 W)
Ba = Li ght switch
811 = Starter switch
C
= Dynamo m ag neto
C2 = Dynamo armature
c, = I gn i tion armatur e
(,. = Sparking plug
C11 Batt ery
Sw itching positions :
36
L__-t- ___ j
sa
(,. = Terminal ca rri er
Cu = Lighting le ad (ye ll ow)
c,. = Additio nal ear th le ad (brawn)
c, = Short-c ir cuiting le ad (black)
E
= Electric st ar ter
G
= Rectifier
S
= Fuse (4 Amp s)
0 = Off ( Ignition sh or t-circ uit ed)
I
= Start (by means of sta rt er switch)
II
= Li gh ts
