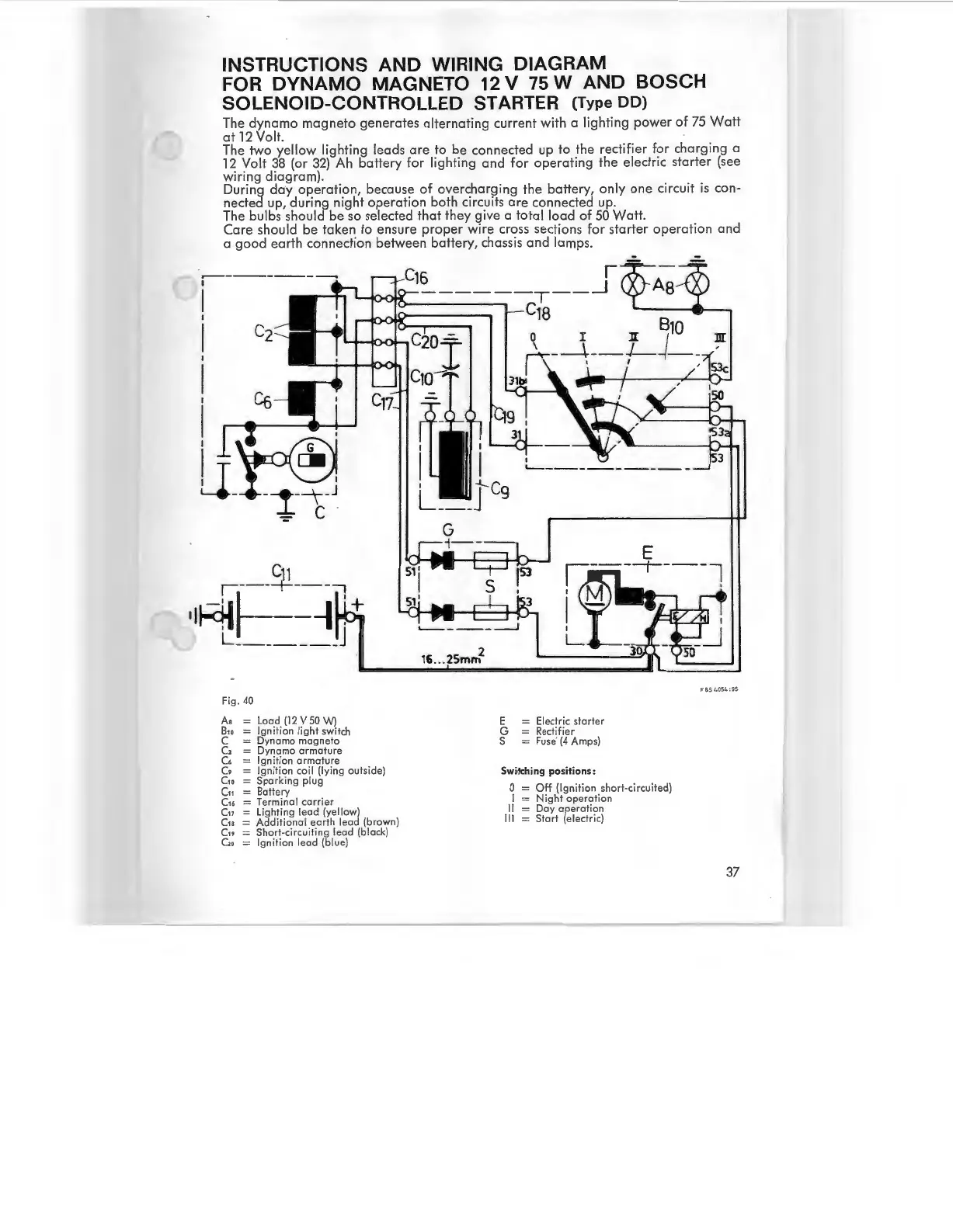

INSTRUCTIONS AND WIRING DIAGRAM
FOR
DYNAMO MAGNETO 12 V 75 W AND BOSCH
SOLENOID-CONTROLLED STARTER (Type DD)
The dynamo magneto generates alternating cu rre nt with a l ight ing power of 75 Watt
at 12 Volt.
The
two yell ow lighting leads are to be connecte d up to the rectifier for cha r ging a
12 Volt 38 (
or 32) Ah battery f or lighting and for operating the electric starter (see
wir ing diagram).
During day operation, because of overcharging the battery, only one circuit is con-
nected up, during night operation both circuits are connected up.
The bulbs should be so selected that they give a total load of 50 Watt .
Care should be taken to ensure proper wire cr oss sections fo r starter opera ti on and
a good earth connection bet we en battery, cha ssis and lam ps .
I ][ BlQ
---+--J_) __
I I
li
en
~, ---+ - --
,1~~----1
L ______ _
Fig. 40
Aa = Load (12 V 50 W)
810 = Igni tion light switch
C
= Dynamo magneto
C2 = D ynamo armature
C6 = Ignition armature
c, = I gnition coil (lying outsid e)
C10 = Sparking plug
(., = Battery
c,6 = Termin al carrier
Cn = Lighting lead (yellow)
c., = Addit i onal earth lead (brown)
c., = Sho rt -circuiting lead (black)
c, = Ignitio n lead (blue)
16 ... 5mm
2
E = Electric starter
G
= Rectifi er
S = F use (4 Amps)
Sw i·tching po si tions :
0 = Off (Ign ition short-circuit ed)
I = Ni ght operat ion
II
= Day operation
III = Start (e lect ri c)
F&S t. 051. :9S
37
