English
168

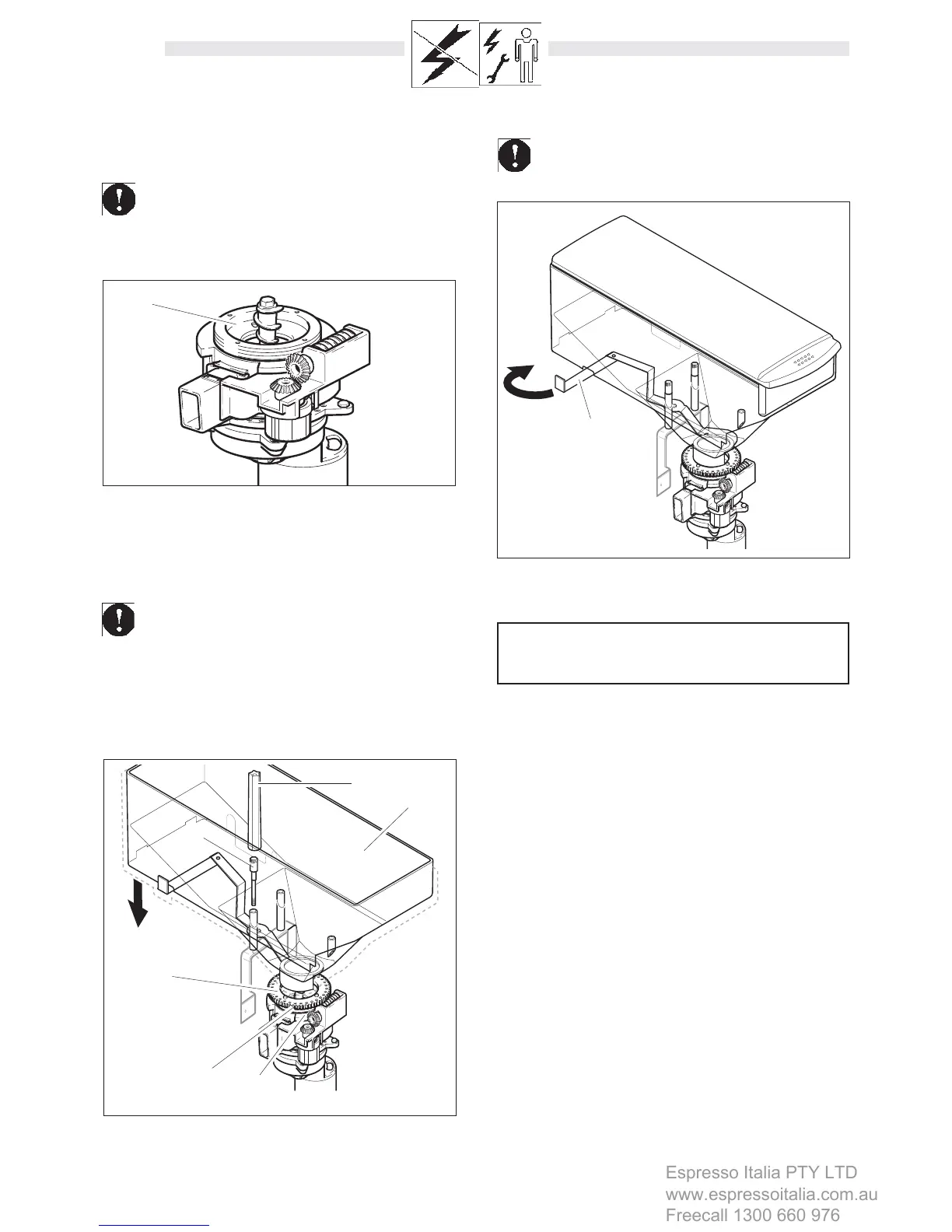

To re-assemble the coffee grinder unit, do as follows:
• Screw fully the adjustment ring nut (F), then unscrew it
by 1/2 turn.
This 1/2 turn untightening of ring nut is necessary to
avoid grinders jamming and damage.
• Replace the gearwheel (E) and fix it tightening the screws (D).
• Replace the coffee bean hopper (H).
Be careful to place the gasket properly (G). It has to
correctly engage with the gearwheel (E) and the ring nut
(F).
• Fix the container (H) tightening the screws (B) with the
appropriate tool (C).
• Open the bulkhead (A).
Before re-operating the machine, a new grind
adjustment is required.
15 - OUT OF SERVICE
In case you will put the machine out of service, disconnect the
power and the water supply, empty the drip trays, boilers and
piping and clean the machine (Pr. “13.1 Machine cleaning”).
If the machine is scrapped, the different materials composing
the machine have to be separated and disposed of according to
their composition and to the current State regulations.
F. 23
F. 22
F
G
E
F
B
H
C
F. 24
A
