English
149

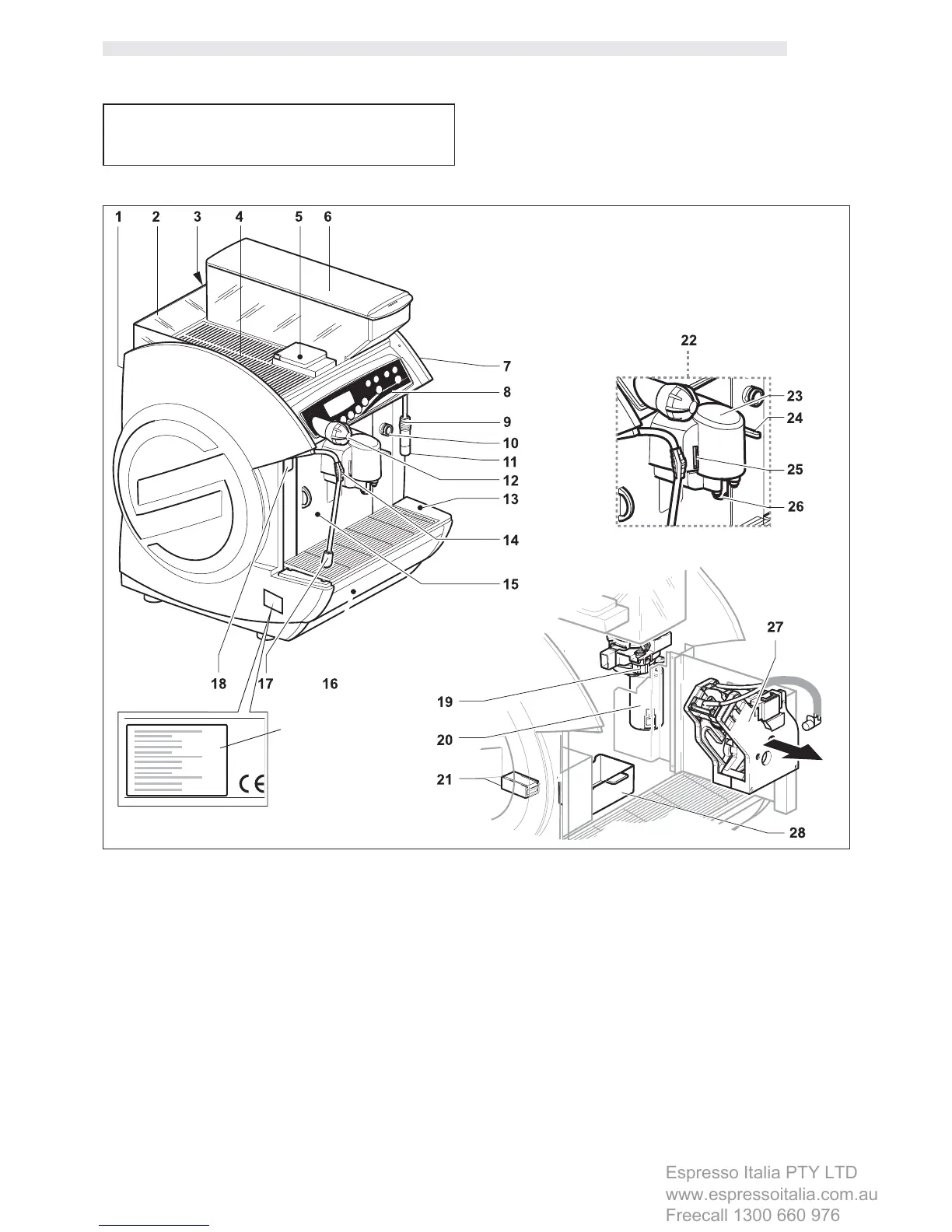

1 - MACHINE COMPOSITION
A CE label
1 Left hand side panel
2 Glass
3 Back panel
4 Cup warming plate
5 Pre-ground coffee door
6 Coffee bean hopper
7 Right hand side panel
8 Control panel
9 Rubber protector
10 Spout clamp (CAPPUCCINO set-up)
11 Hot water spout (except COFFEE set-up)
12 Steam knob (except COFFEE set-up)
Clockwise: steam jet open
Counterclockwise: steam jet closed
13 Drip tray
14 Rubber protector
15 Door
F. 1
A
NOTE - If not differently indicated by the text, the position numbers of the parts of the machine always refer to this figure.
16 Dump box
17 Steam spout (except COFFEE set-up)
18 Main switch
“I” - Electrical functions enabled – Machine on –
Pilot light on.
“O” - Electrical functions disabled – Machine off -
“I” button pilot light off.
19 Grind adjustment knob
20 Grinder unit
21 Mechanical pulse counter
It displays the number of brewings.
22 Brew group
23 Brew group cover
24 Milk cream adjustment (CAPPUCCINO equipment)
25 Temperature setting (CAPPUCCINO equipment)
26 Milk dispenser (CAPPUCCINO equipment)
27 Coffee unit
28 Powder tray
