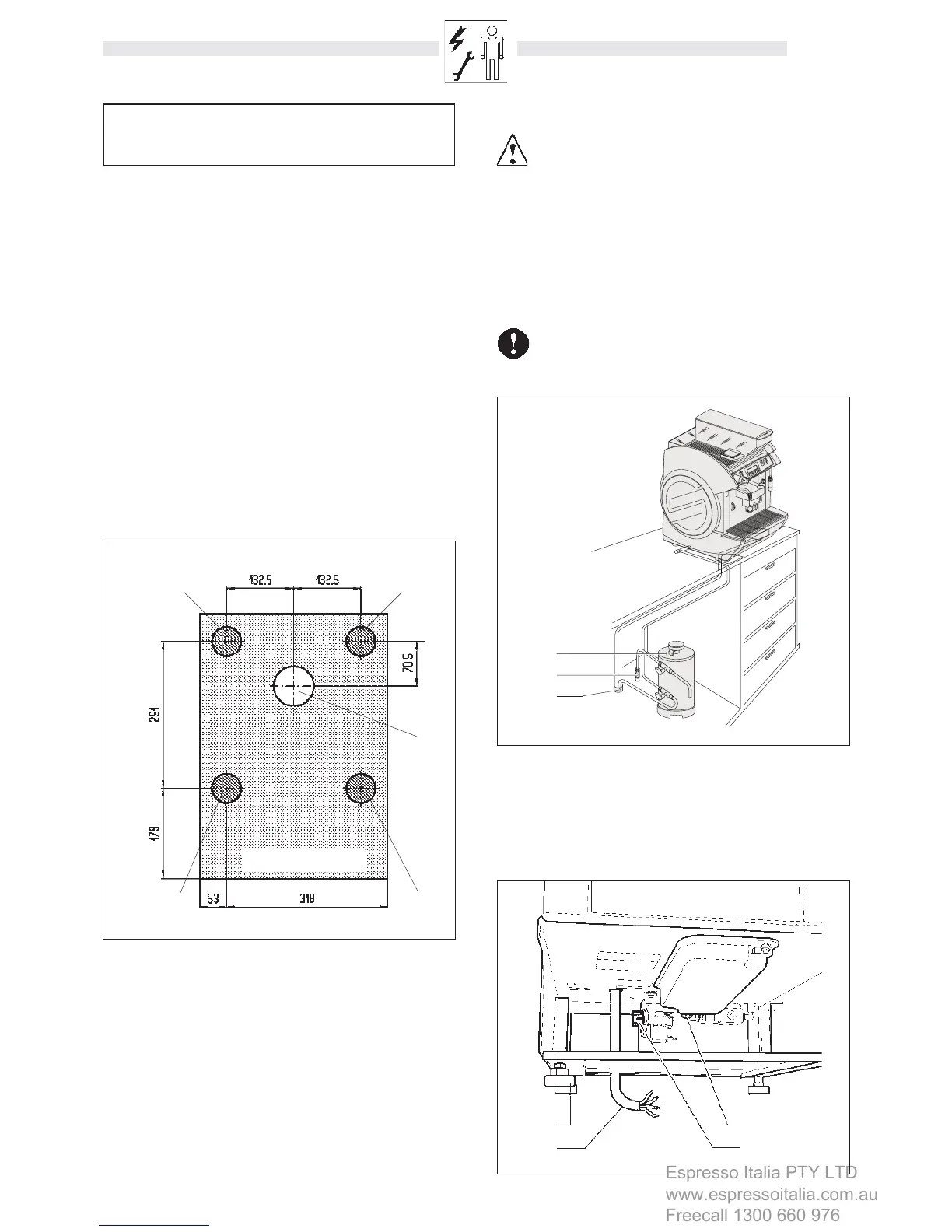

10 - INSTALLATION
10.1 Location notes
• The machine has to be installed in a dry and protected place,
at the following ambient temperature : 10° C - 40° C; maximum
humidity: 90%.
10.2 Machine positioning
NOTE - Check if the surface where the machine is installed has
the adequate dimension and solidity to support the
machine safely.
• Make a Ø 100 mm (A - F. 5) hole on the supporting surface.
• Place definitely the machine on the support (the circles B - F. 5,
indicate the suitable position of the adjustable feet).
• Level off the machine using the adjustable feet (F - F. 7).
C – WATER SOFTENER
D – WATER NETWORK
E - DRAIN CHANNEL
F. 6
C
D
E
F. 5
A
B B
B
B
F. 7
G
F
H
I
10.3 Water connection
Warning! Water hardness should not be less than 8°F.
We recommend that the machine be supplied with water treated
by a descaling device, particularly for water with high content of
calcium and magnesium (hard water). Make sure the water network
provides drinkable water, with pressure ranging between 1 and 8
bars.
- Connect the water softener (C) to the water network (D).
NB before connecting the water softener to the machine,
wash the machine until the water is clear.
• Connect a drain tube to the coupling (H - F. 7) and fix it with a
rack clamp.
• Connect (using tube and coupling made of food materials only)
the machine to the drinking water network, through the coupling
(I - F. 7).
• Insert the draining and filling pipes into hole A.
MACHINE FRONT
