Saeco SG200E - Default Chapter; Main Parts

2
English
5
3 1 6
4
7
8
9
2

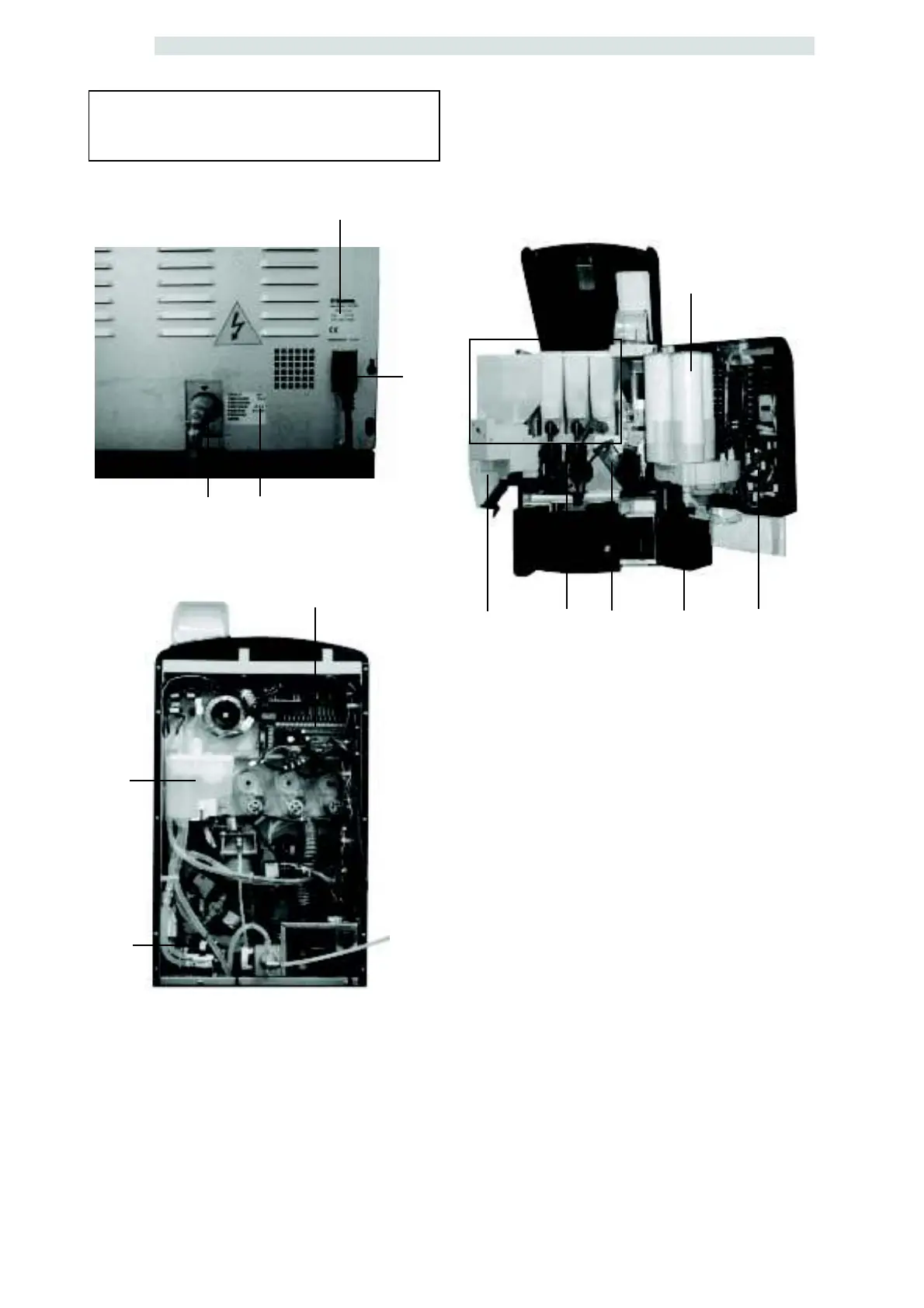

MAIN PARTS
1 Brew group and coffee grinder
2 Brewing hopper group
3 Sugar and stirrer dispensing group
4 CPU card
5 Cup dispenser
6 Payment system area
7 POWER card
8 Water circuit equipped with air-break
device
9 Pump
10 Tray socket
11 Data plate
12 Data plate showing the minimum and
maximum water pressure
13 Water mains connection
