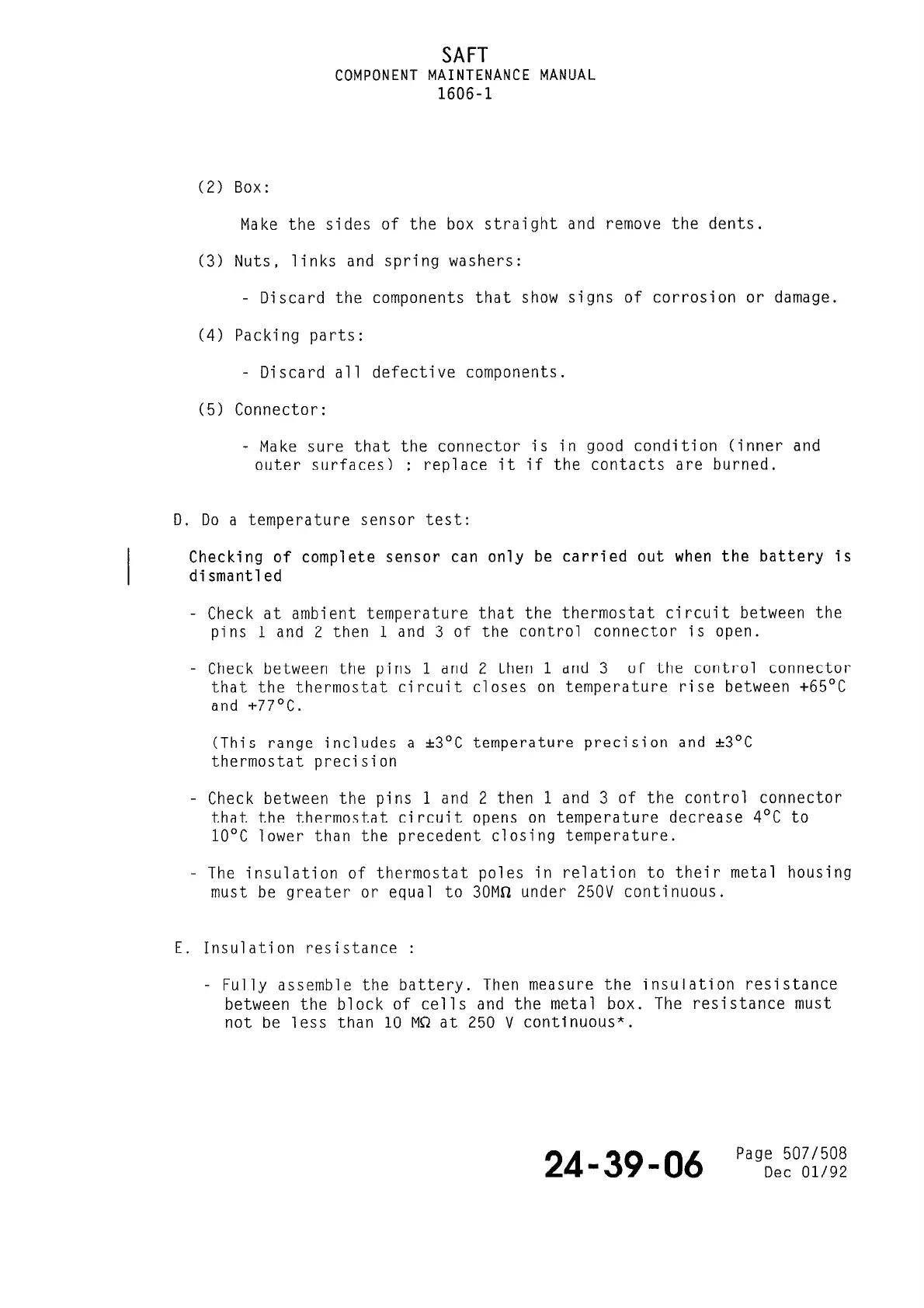

SAFT
COMPONENT MAINTENANCE MANUAL
1606-l
(2) Box:
Make the sides of the box straight and remove the dents.
(3) Nuts, links and spring washers:
- Discard the components that show signs of corrosion or damage.
(4) Packing parts:
- Discard all defective components.
(5) Connector:
- Make sure that the connector is in good condition (inner and
outer surfaces) ;
replace it if the contacts are burned.
D. Do a temperature sensor test:
Checking of complete sensor can only be carried out when the battery is
dismantled
- Check at ambient temperature that the thermostat circuit between the
pins 1 and 2 then 1 and 3 of the control connector is open.
- Check between the pins 1 and 2 then 1 and 3 of the control connector
that the thermostat circuit closes on temperature rise between +65'C
and +77'C.
(This range includes a +3OC temperature precision and +3OC
thermostat precision
- Check between the pins 1 and 2 then 1 and 3 of the control connector
that the thermostat circuit opens on temperature decrease 4'C to
10°C lower than the precedent closing temperature.
- The insulation of thermostat poles in relation to their metal housing
must be greater or equal to 30Mn under 250V continuous.
E. Insulation resistance :
- Fully assemble the battery. Then measure the insulation resistance
between the block of cells and the metal box. The resistance must
not be less than 10 MQ at 250 V continuous*.
24-39-06 PagieZoL:FE
