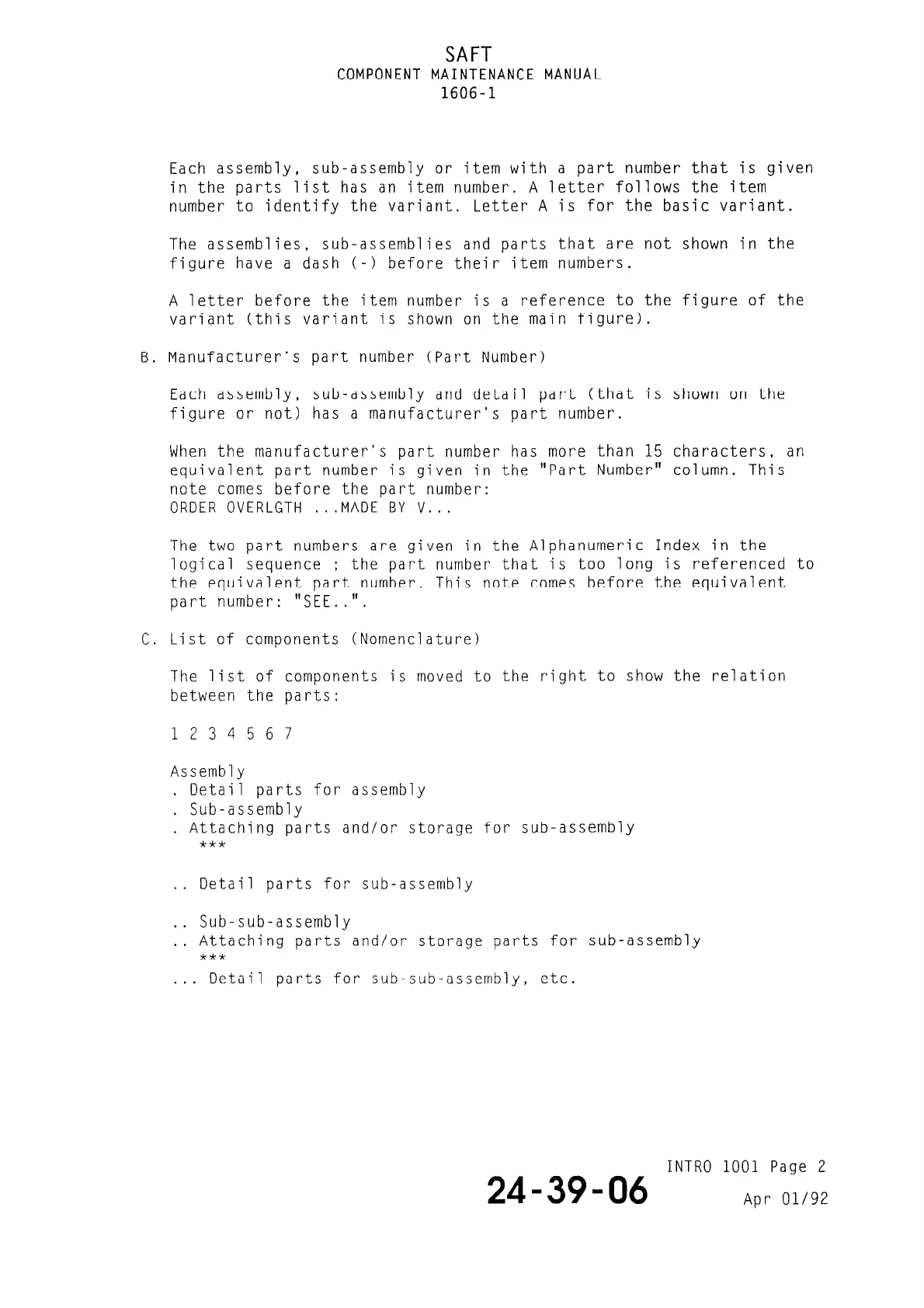

COMPONENT MAINTENANCE MANUAL
1606-l
B. Manufacturer's part number (Part Number)
C.
List of components (Nomenclature)
Each assembly, sub-assembly or item with a part number that is given
in the parts list has an item number. A letter follows the item
number to identify the variant.
Letter A is for the basic variant.
The assemblies, sub-assemblies and parts that are not shown in the
figure have a dash (-1 before their item numbers.
A letter before the item number is a reference to the figure of the
variant (this variant is shown on the main figure).
Each assembly, sub-assembly and detail part (that is shown on the
figure or not) has a manufacturer's part number.
When the manufacturer's part number has more than 15 characters, an
equivalent part number is given in the "Part Number" column. This
note comes before the part number:
ORDER OVERLGTH . ..MADE BY V...
The two part numbers are given in the Alphanumeric Index in the
logical sequence ; the part number that is too long is referenced to
the equivalent part number. This note comes before the equivalent
part number: "SEE..".
The list of components is moved to the right to show the relation
between the parts:
I234567
Assembly
. Detail parts for assembly
. Sub-assembly
, Attaching parts and/or storage for sub-assembly
***
. . Detail parts for sub-assembly
. . Sub-sub-assembly
. .
Attaching parts and/or storage parts for sub-assembly
***
. . .
Detail parts for sub-sub-assembly, etc.
INTRO 1001 Page 2
24-39-06
Apr 01/92
