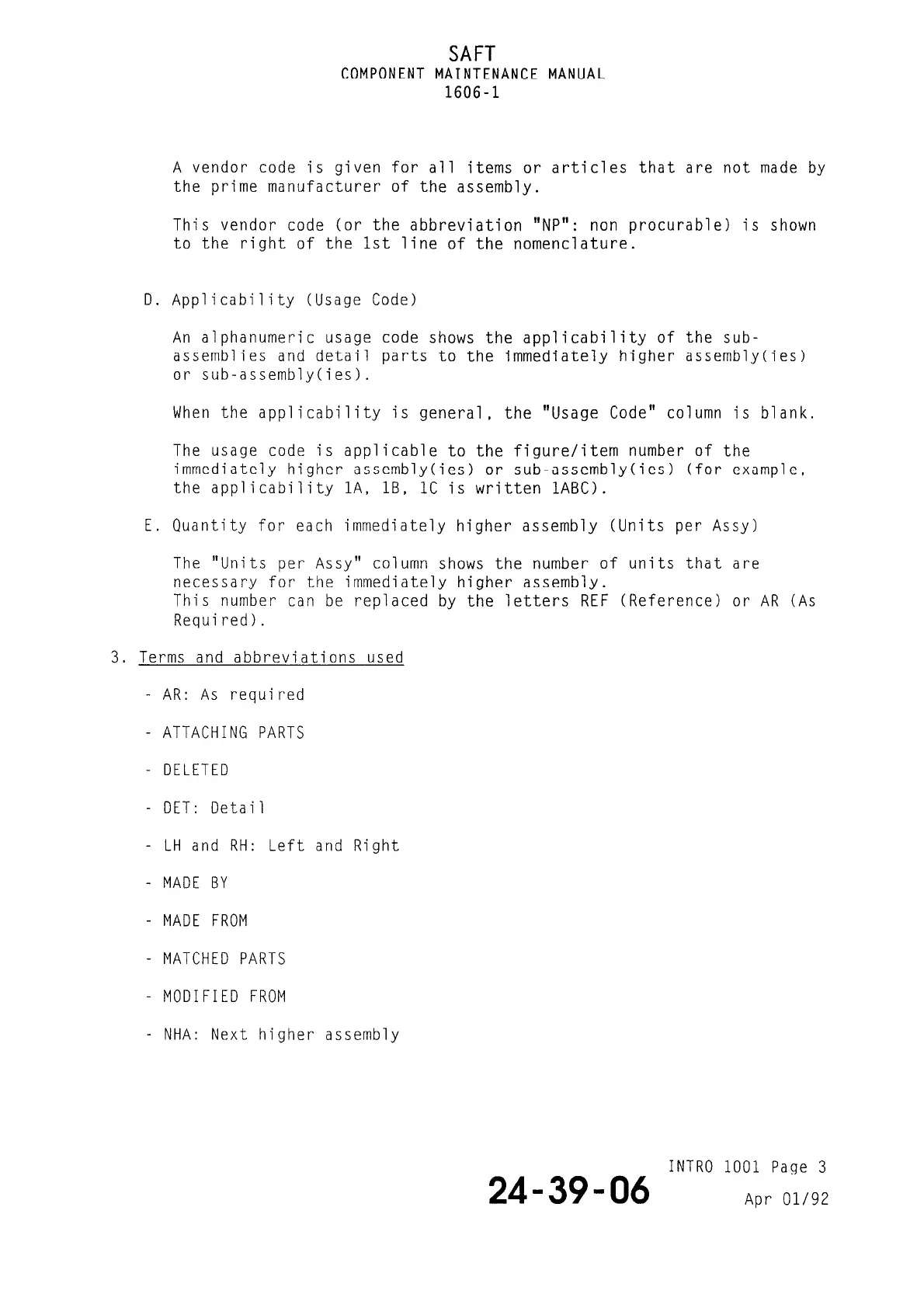

SAFT
COMPONENT MAINTENANCE MANUAL
1606-l
A vendor code is given for all items or articles that are not made by
the prime manufacturer of the assembly.
This vendor code (or the abbreviation "NP": non procurable) is shown
to the right of the 1st line of the nomenclature.
D. Applicability (Usage Code)
An alphanumeric usage code shows the applicability of the sub-
assemblies and detail parts to the immediately higher assembly(ies)
or sub-assembly(ies).
When the applicability is general, the "Usage Code" column is blank.
The usage code is applicable to the figure/item number of the
immediately higher assembly(ies) or sub-assembly(ies) (for example,
the applicability lA,
lB, 1C is written 1ABC).
E. Quantity for each immediately higher assembly (Units per Assy)
The "Units per Assy" column shows the number of units that are
necessary for the immediately higher assembly.
This number can be replaced by the letters REF (Reference) or AR (As
Required).
3. Terms and abbreviations used
- AR: As required
- ATTACHING PARTS
- DELETED
- DET: Detail
- LH and RH: Left and Right
- MADE BY
- MADE FROM
- MATCHED PARTS
- MODIFIED FROM
- NHA: Next higher assembly
INTRO 1001 Page 3
24-39-06
Apr 01/92
