Saftronics GP10 - DC Link Reactor

24

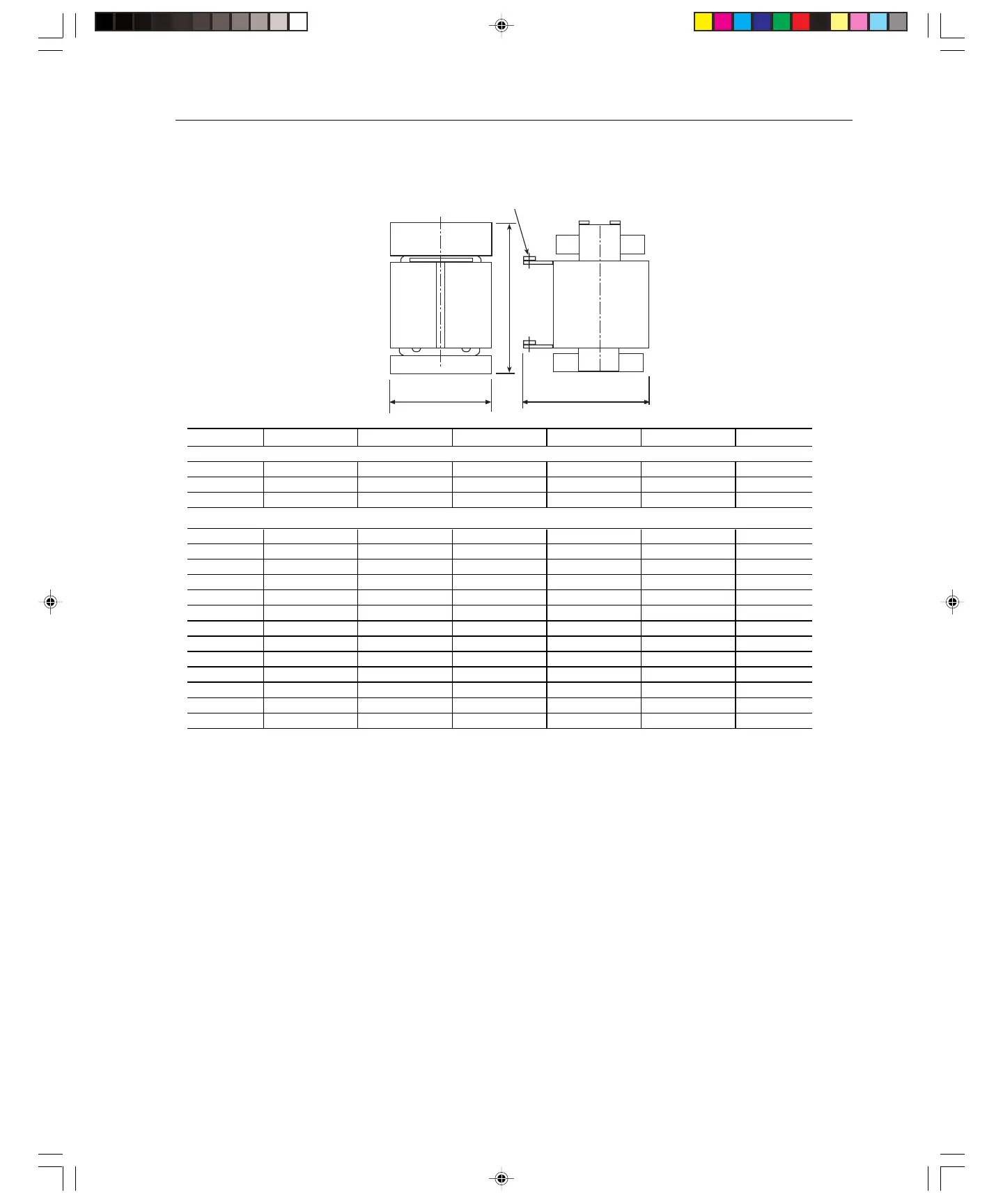

DC Link Reactor
Dimensions in inches
Terminal
Width
Depth
Height
Note:
• GP10 Drives rated 100 Hp and above are furnished with a DC link reactor. This reactor must be installed
between terminal P1 and P+ prior to commissioning of the Drive.
• The weight of the DC Link Reactor is not included with that of the Drive.
• DC Link Reactor is provided as open type and is separately mounted. Enclosure to be provided by others.
Hp
Model No. Width Depth Height Weight Loss [W]
230V GP10-Variable Torque/Constant Torque
100/75 DCR2-75B 7.87 10.63 7.09 37 55
125/100 DCR2-90B 7.09 11.02 8.46 37 57
150/125 DCR2-110B 7.48 12.99 9.05 46 67
460V GP10-Variable Torque/Constant Torque
100/75 DCR4-75B 7.48 10.63 6.89 35 58
125/100 DCR4-90B 7.48 11.02 7.87 44 64
150/125 DCR4-110B 7.48 11.02 7.87 46 73
200/150 DCR4-132B 7.87 11.02 8.07 55 84
250/200 DCR4-160B 8.27 12.6 8.07 68 90
300/250 DCR4-200B 8.27 12.99 9.06 75 126
350/300 DCR4-220B 8.66 13.78 9.06 81 131
400/350 DCR4-280B 8.66 14.57 9.65 95 133
450/350 DCR4-280B 8.66 14.57 9.65 95 150
500/400 DCR4-355B 9.84 12.99 8.78 99 205
600/450 DCR4-400B 9.84 13.78 9.17 106 215
700/500 DCR4-450B 10.63 13.78 10.35 121 272
800/600 DCR4-500B 11.1 14.17 10.35 143 292
