S
S
t
t
a
a
g
g
e
e
2
2
:
:
M
M
o
o
u
u
n
n
t
t
i
i
n
n
g
g
t
t
h
h
e
e
m
m
e
e
t
t
a
a
l
l
c
c
h
h
a
a
s
s
s
s
i
i
s
s
a
a
s
s
s
s
e
e
m
m
b
b
l
l
y
y

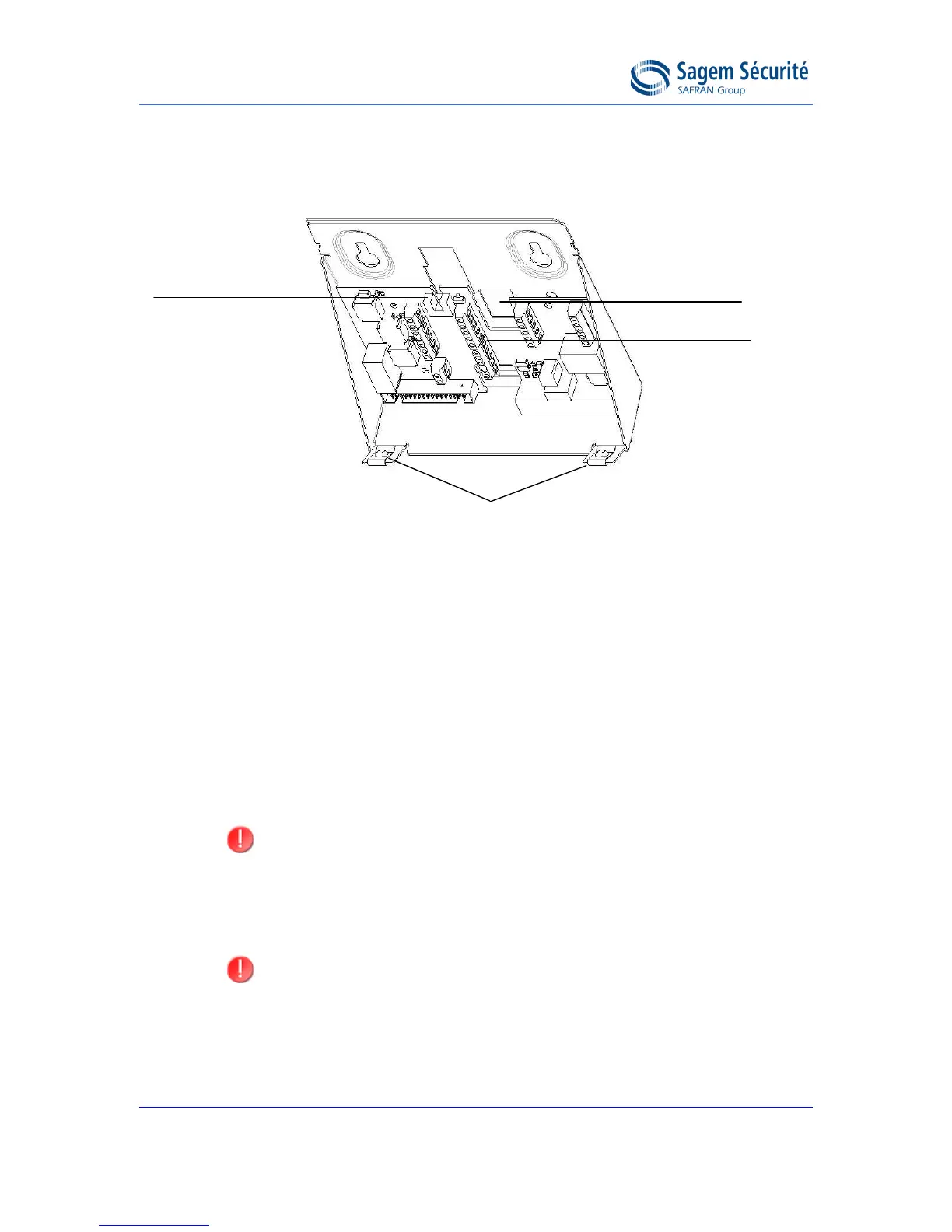

a) Disconnect the ribbon cable between the motherboard and the terminal
block board so that the assembly shown above can be detached from
the rest of MorphoAccess™.
b) Pass the connecting cables through the cable entry.
c) Position the chassis assembly against the wall using the two screws in
the mounting keyholes.
d) Hold the chassis in place with a screw through the mounting slot.
e) Adjust the position, and fix in place by tightening all three screws.
f) Adjust the anti theft block into the hole designed for it, and fix in place
the last and fourth screw.
Check that nothing is interfering with the anti theft switch (opto
component) and the anti theft block.
g) Connect cables to terminal blocks with adequate torque conformed to
screw dimensions (see the detailed instructions in the following
sections)
Be sure during manipulation that the power supply from the electrical
source is off.
To Next Page
