Sagem MA 500+ Series User Manual

SSE-0000053018-04 Sagem Sécurité document. Reproduction and disclosure forbidden.
13
S
S
t
t
a
a
g
g
e
e
4
4
:
:
C
C
l
l
o
o
s
s
i
i
n
n
g
g
M
M
o
o
r
r
p
p
h
h
o
o
A
A
c
c
c
c
e
e
s
s
s
s
™
™

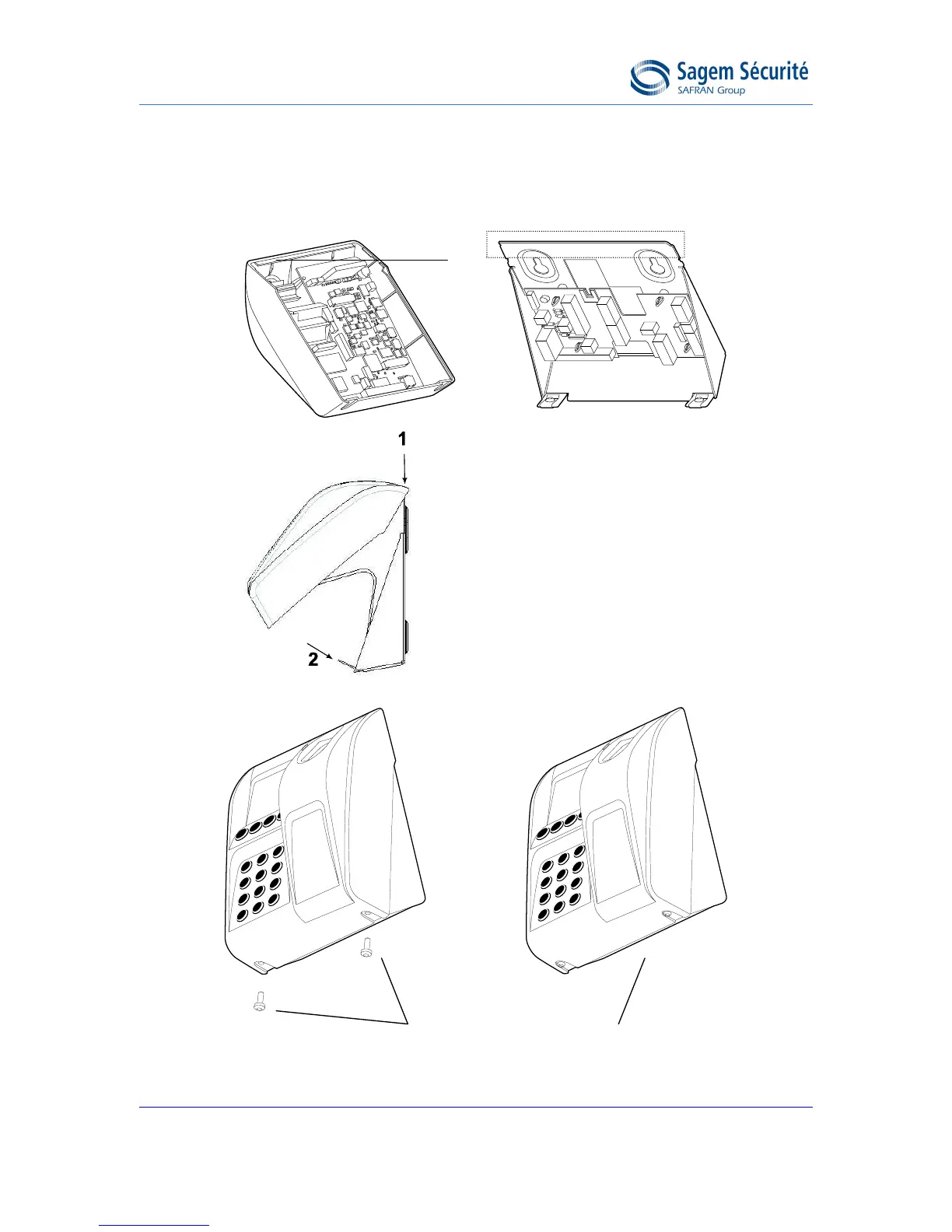

When the ribbon cable has been
connected between the two
assemblies (see stage 3), the cover
assembly is fitted to the chassis
assembly.
1. The lip on the cover slides behind
the chassis, to fit over the catch shown
on the diagram above.
2. The cover is fitted onto the chassis
by rotating it.
Fit the two M4x16 assembly screws.
Use screwdriver TORX 20
Assembled
MorphoAcces
Lip
Catch for the cover assembly lip
