SSE-0000053018-04 Sagem Sécurité document. Reproduction and disclosure forbidden.
25
D
D
a
a
t
t
a
a
C
C
l
l
o
o
c
c
k
k
i
i
n
n
p
p
u
u
t
t
w
w
i
i
r
r
i
i
n
n
g
g
MA 500 / MA 500+ Series OMA 500 Series
Wiegand
1 Block 1
D0 In
Data (5V TTL)
Blue
2 Block 2
D1 In Clock (5V TTL) Yellow
3 Block 3
LED NC NC
4 Block 4
+12V Out 12 Volts Power output (150mA max) Red
5 Block 5
GND Ground for Dataclock Black

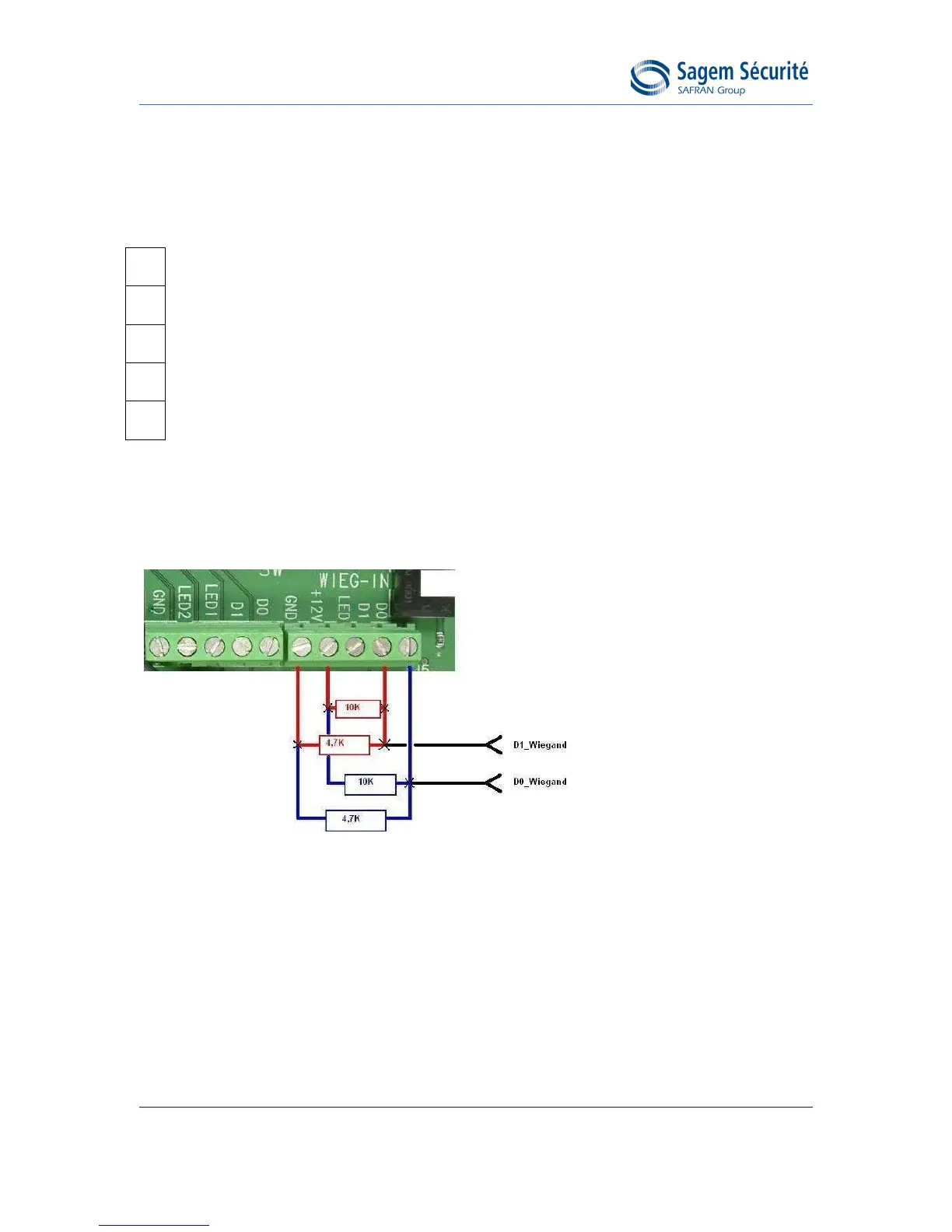

Note A: In case of old I/O board (split power connector) and if your
Wiegand/Dataclock peripheral has open drain outputs, a signal adaptation is
required, as follows:
D0 Wiegand IN signal:
Pull up 10K Ohms to +12Volts
Pull down 4.7K Ohms to GND
D1 Wiegand IN signal:
Pull up 10K Ohms to +12Volts
Pull down 4.7K Ohms to GND
