Sailor COMPACT HF SSB T2130 User Manual

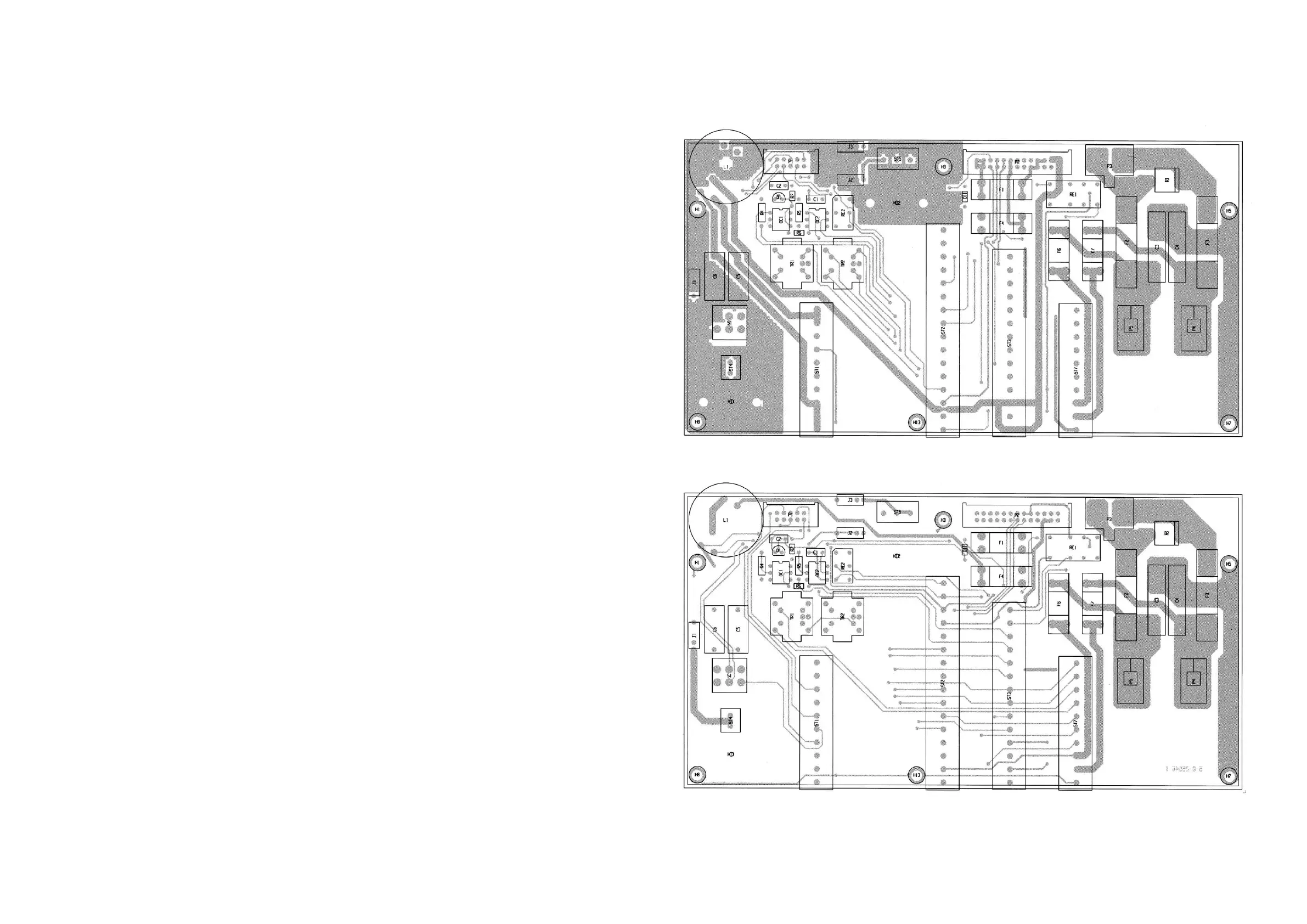

5.6 COMPONENT LOCATION CONNECTION BOARD MODULE 6
Seen from component side with upper side tracks.
Seen from component side with lower side tracks.
PCB rev. 25646I
PAGE 5-28
9724
5 CIRCUIT DESCRIPTION AND SCHEMATIC DIAGRAMS T2130

Sailor COMPACT HF SSB T2130 Specifications

General

Frequency Range	1.6 - 30 MHz
Power Output	150 W PEP
Frequency Stability	±10 Hz
Operating Temperature	-15°C to +55°C
Modulation	J3E (SSB), H3E (AM)
Number of Channels	100
Power Supply	24 V DC
