Sailor COMPACT HF SSB T2130 User Manual

2 INSTALLATION MECHANICAL HF SSB TRANSMITTER T2130

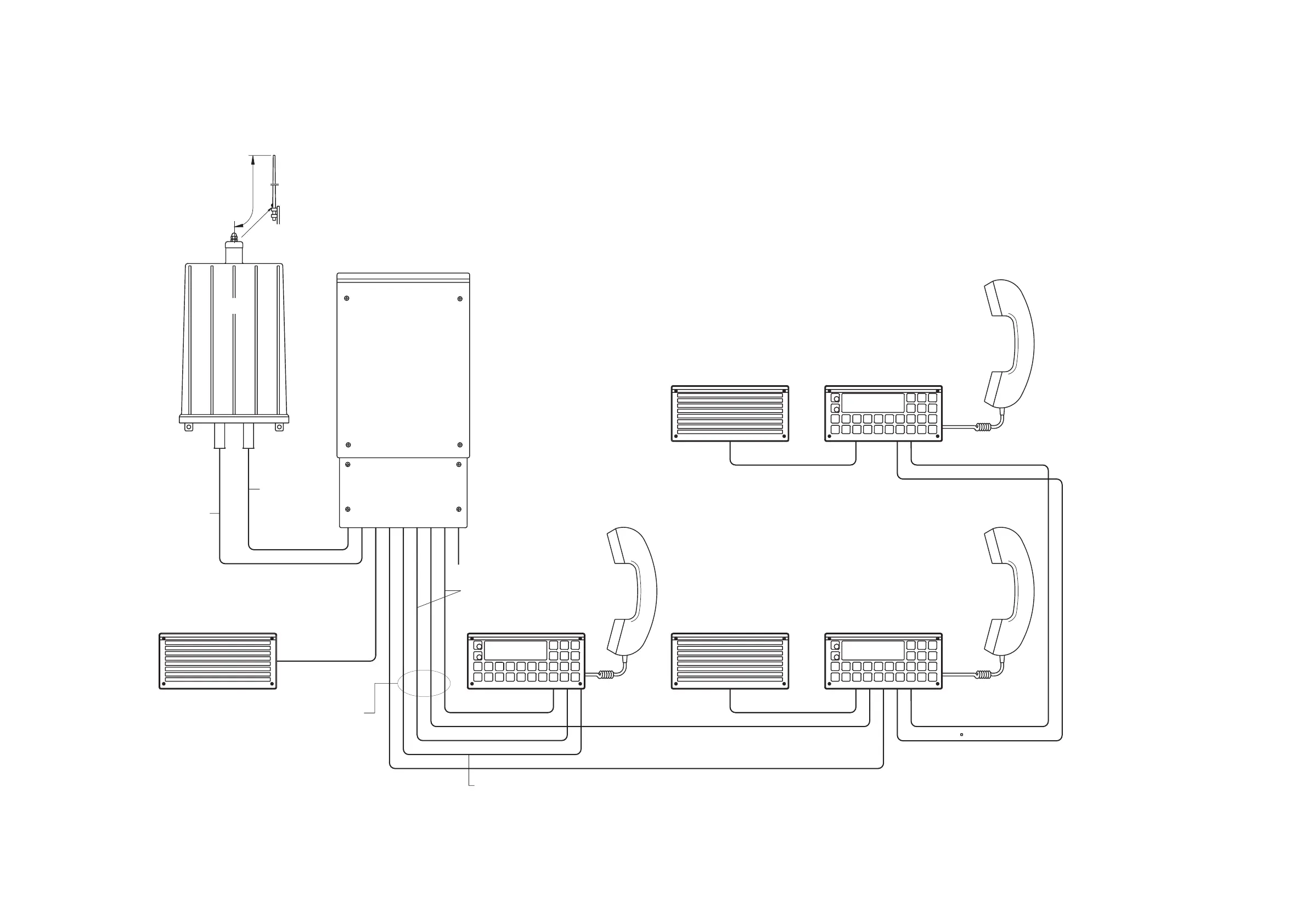

2.2.7 INSTALLATION WITH REMOTE CONTROL C2140
Factory supplied cables,
lenght 10 meters
Max allowed lenght 30 meters
H2054/74
2 pc. RG 58/u coax
(SP.number 77.509)
Note 1
DC supply wires
NOTE 5
50 ohm’s
H1213 trioxial cable
(SP number E77.108)
RE2100 C2140
C2140
RF GroundRF Ground
H2054/74
H2054/74
NOTE 7 multicable shielded
RG 58/u coax RG 58/u coax
10 x 0.5 multicable shielded
NOTE 4
SP-BUS
RF IN/OUT
SP-BUS SP-BUS
(SP.number E62.405)
T 2130
AT 2110
27145C
<
=
7 L 15m
<
=
9610
PAGE 2-14
