Sailor COMPACT HF SSB T2130 User Manual

2 INSTALLATION MECHANICAL HF SSB TRANSMITTER T2130
9610

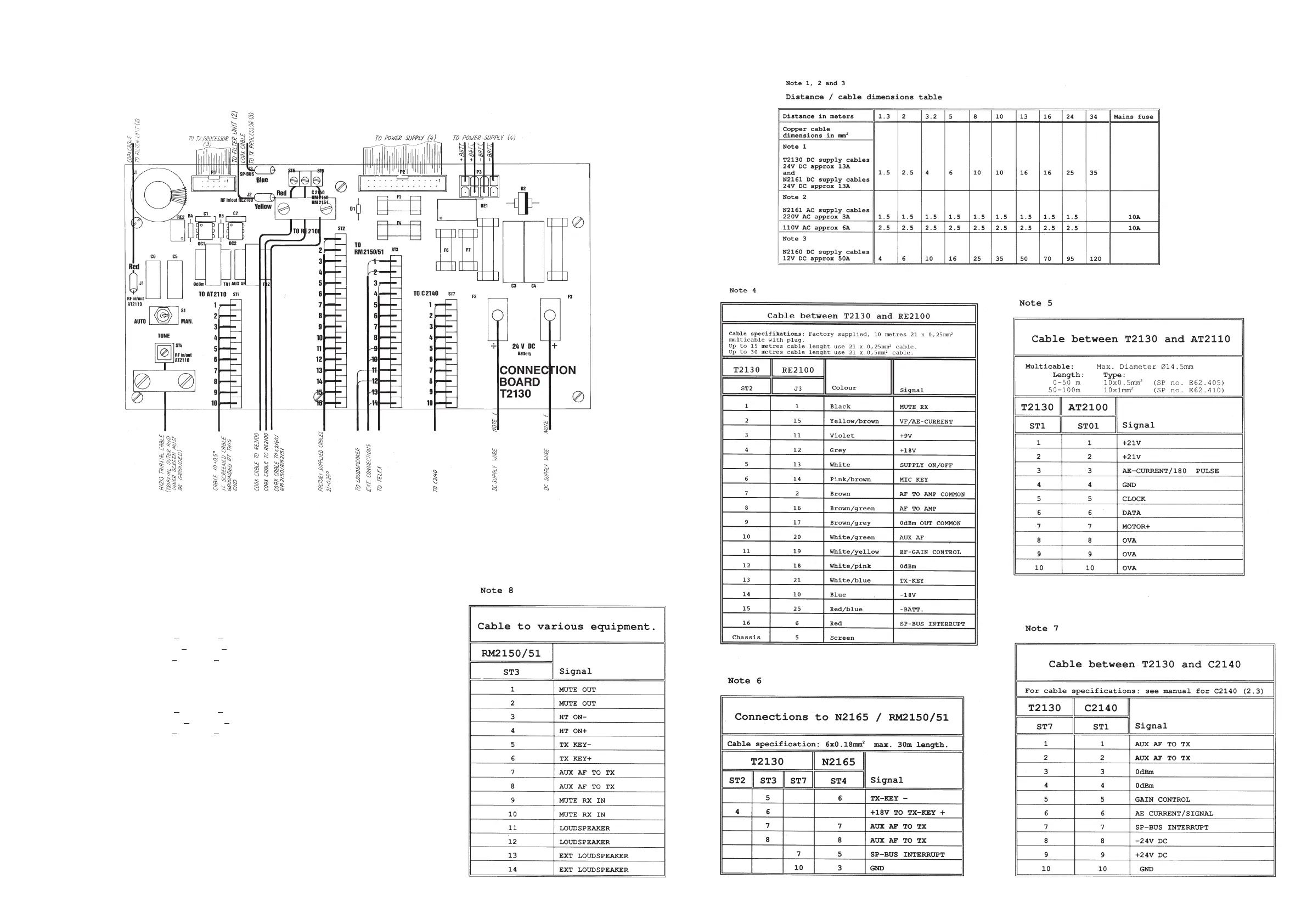

2.2.10 CONNECTIONS TO T2130
1-2 Mute Out 9-10 Aux AF in Tx
Relay contact closed when Transformer:
transmitting. 600 ohm, level 0 to 10 dBm
Max. ratings: 30V/2A
3-4 TX-key 11-12 Mute RX In
Optocoupler: Relay Coil:
12V
< Vin High < 22V Max. voltage: 35V, 20°C
10mA
< Iin High < 20 mA Min. voltage: 9V, 20°C
-1V
< Vin Low < 2V Coil resistance: 2250 ohm ±300 ohm
5-6 RF On/Off 13-14 Loudspeaker
Optocoupler: 8 ohm, max. power 10W
12V
< Vin High < 15V
25 mA
< Iin High < 35 mA
-1V
< Vin Low < 2V 14-16 Ext. Loudspeaker
8 ohm, max. power 10W
7-8 0 dBm out
Transformer:
600 ohm, 0 dBm
PAGE 2-17
