Sailor COMPACT HF SSB T2130 User Manual

2 INSTALLATION MECHANICAL HF SSB TRANSMITTER T2130

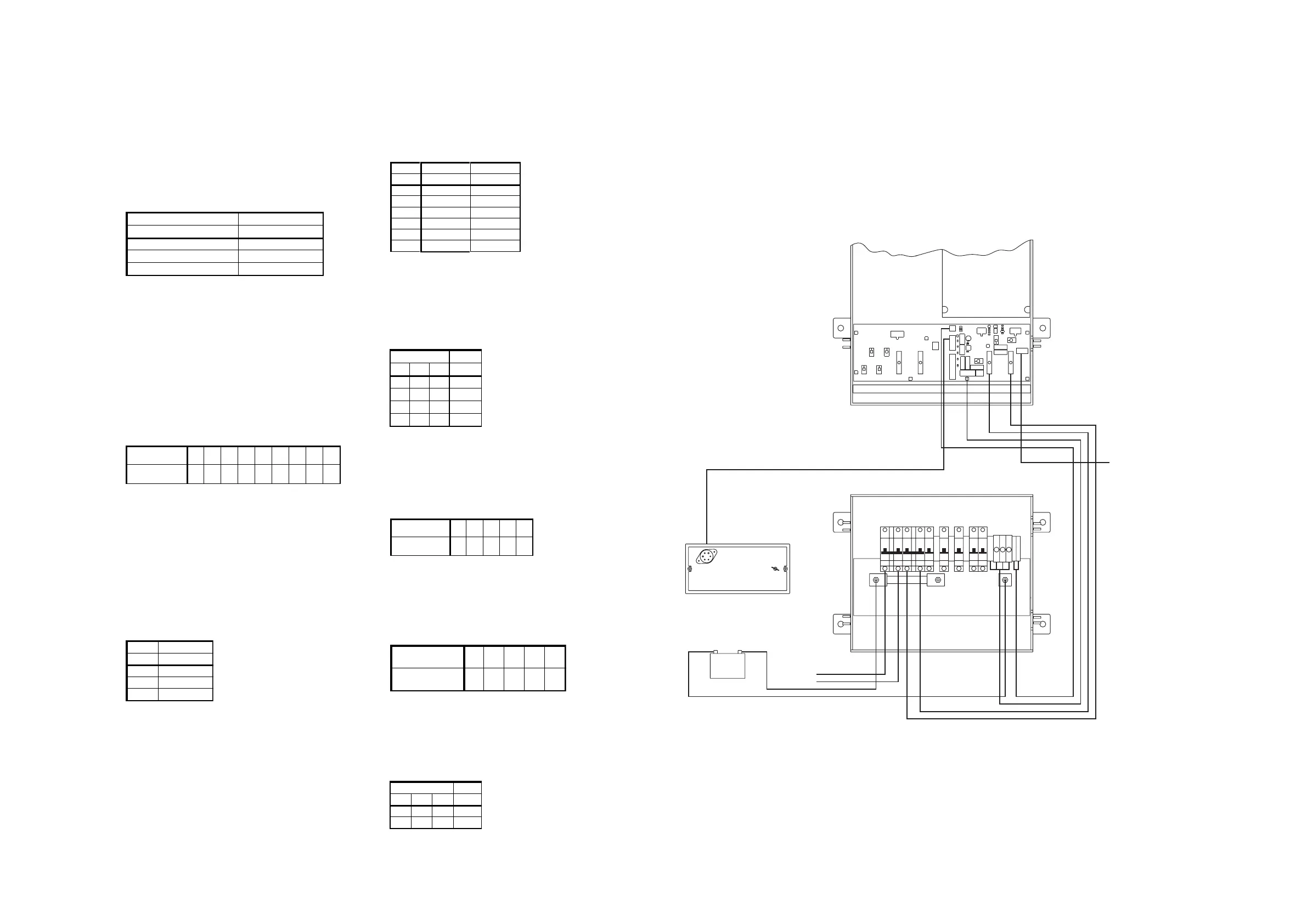

2.2.14 CONNECTIONS TO BATTERY CHARGER N2174
CABLE 9
MAINS TO N2171:
220V MAINS:Current: approx 6 Amp.
Mains fuse min. 10 Amp.
3 x 1.5 mm
2
max. length 12 metres
110V MAINS:Current: approx 12 Amp.
Mains fuse min. 16 Amp.
3 x 2.5 mm
2
max. length 10 metres
CONNECTION BOARD (5) SIGNAL
ST1 and ST2
1 GND
2 LIVE
3 NEUTRAL
CABLE 12
BATTERY TO T2131:
When N2170 is in a separate cabinet.
Use following cable: 2.5 mm² max. length
10 metres.
When N2170 is in the same cabinet as T2131.
Use cable as shown in the table bellow:
Current consumption: 50 Amp.
LENGTH IN
METRES
2 3.2 5 8 10 13 16 24 34
CABLE
DIMENSION
6 10 16 25 35 50 70 95 120
CABLE 18
MAINS TO N2174:
220V MAINS:Current: approx 8 Amp.
Mains fuses 16 Amp.
3 x 1.5 mm
2
max. length 12 metres
110V MAINS:Current: approx 16 Amp.
Mains fuses 25 Amp.
3 x 2.5 mm
2
max. length 10 metres
N2174 SIGNAL
ST2
1 GND
2 LINE
3 NEUTRAL
CABLE 19
N2174 TO H2180:
Multicable: 6 x 0.75 mm
2
max. length 15 metres
Multicable: 6 x 1.5 mm
2
max. length 30 metres
N2174 H2180 SIGNAL
ST7
1 1 - SHUNT
2 2 + SHUNT
3 3 -VS
4 4 MAN
5 5 26V
6 6 AUTO
CABLE 20
N2174 TO H2182/H2183 (SHUNT):
4 x 1.0 mm
2
max. length 10 metres
4 x 2.5 mm
2
max. length 25 metres
N2174 SIGNAL
ST6 ST4 ST10
1 1 1 - VS
2 2 2 + VS
3 3 3 - SHUNT
4 4 4 + SHUNT
CABLE 21
N2174 TO H2182/ (BATTERY):
+ BATT. and - BATT. cable dimensions in mm
2
Current 30A
LENGTH IN
METRES 8 13 22 30 40
CABLE
DIMENSION
10 16 25 35 50
CABLE 22
H2182 to battery:
+ BATT. and - BATT. Cable dimensions in mm
2
Current approx. 70A
LENGTH IN
METRES
2.5 4 6 8 12
CABLE
DIMENSION
16 25 35 50 70
CABLE 26
N2174 TO H2182/H2183
(Temperature sensor):
Multicable: 2 x 0.5 mm
2
max. length 50 metres
N2174 SIGNAL
ST4 ST2 ST8
1 1 1 -TS
2 2 2 +TS
-
+ +
-
N2174
BATTERY
(MASTER)
-
+
+
----
+ ++++++
-
VS SHUNTVSTX TX N2174 N2174 VHF LYS AUXAUXHF
H2180
BATTERY
CHARGER
21
21
18
220V AC
MAINS INPUT.
19
20
26
22
22
12
12
H2182
5-0-26446
28543
ST6
ST2
ST3
ST7
ST4
ST1
P5 P6
P8P7
OUTPUT
PAGE 2-21
9610
