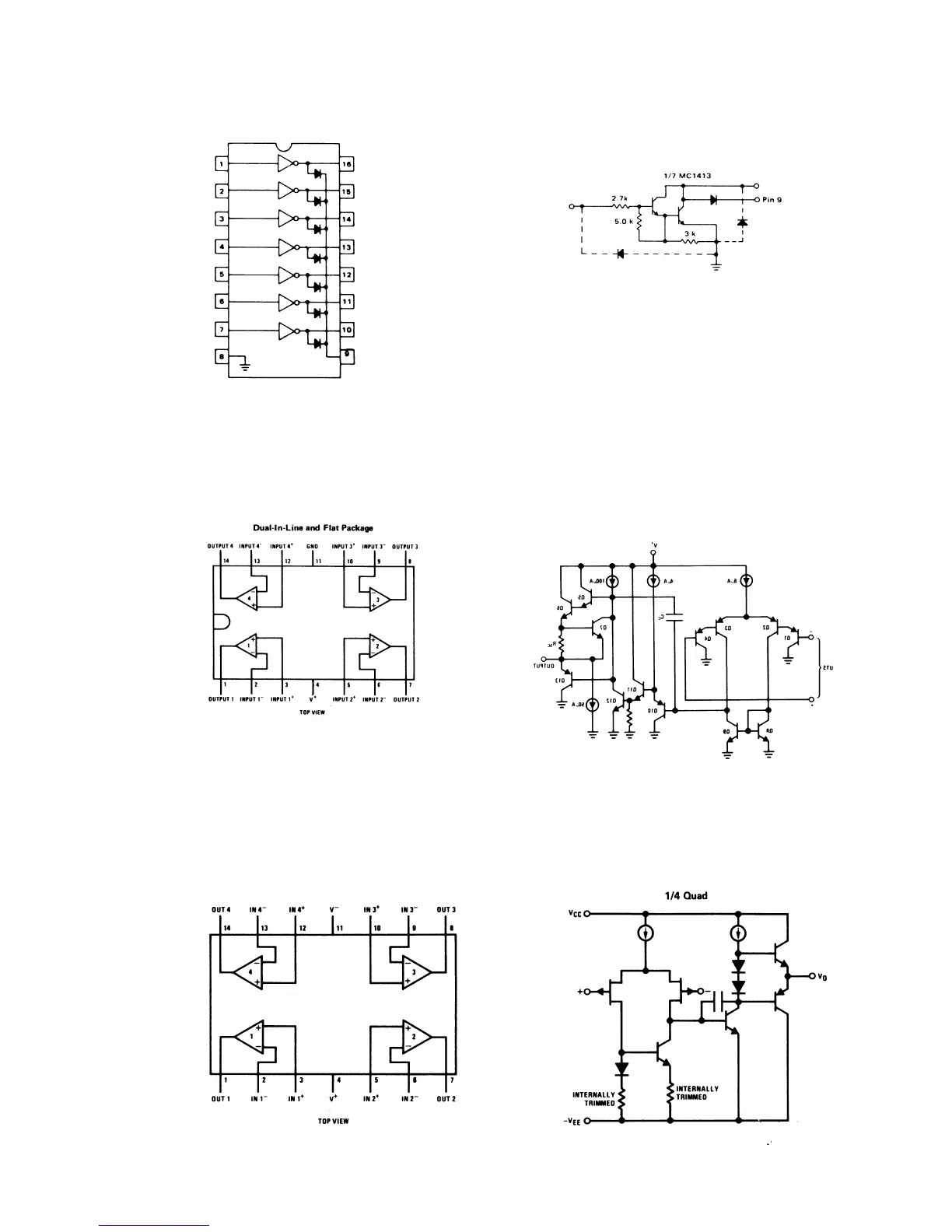

4 SERVICE RT2047 DSC - PART II
MC1413 HIGH-VOLTAGE, HIGH-CURRENT TRANSISTOR ARRAYS
PIN CONNECTIONS SCHEMATIC DIAGRAM
LM324 LOW POWER QUAD OPERATIONAL AMPLIFIERS
CONNECTION DIAGRAM SCHEMATIC DIAGRAM (EACH AMPLIFIER)
LF347 4 x JFET INPUT OP. AMP.
CONNECTION DIAGRAM SIMPLIFIED SCHEMATIC
PAGE 4-13
