2 INSTALLATION RT2047 DSC - PART I
PAGE 2-8

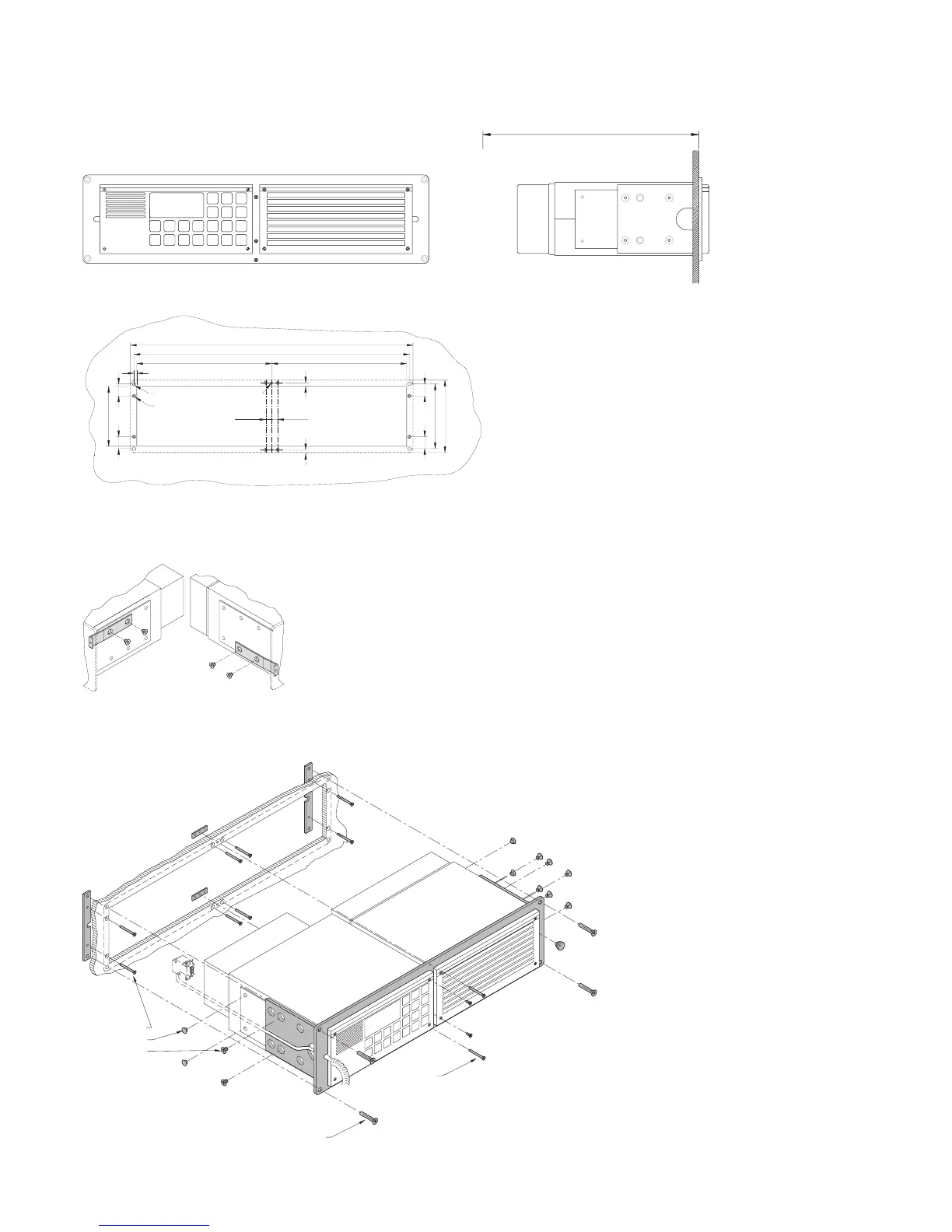

Mounting kit H2062
min 295
28369
4.5mm
20mm20mm
4 stk ø6mm
8 stk ø3.5mm uns for M3 DIN 963
Cutting out 451x100mm
473mm
460mm
6mm6mm
10mm10mm
2 stk ø3mm
20mm 20mm
225.5mm 225.5mm
108mm
121mm
100mm
27450
Free distance must be kept to
allow free air circulation ambient
temperature max. 40°C.
WEIGHT
Mounting kit H2062 : 1.5 kg
H2054 : 5.5 kg
H2074 : 4.0 kg
CRY2001 : 3.2 kg
RT2047 : 5.2 kg
27451
8 pcs M3x30
8 pcs M3x8
12 pcs M5x8
4 pcs M5x30
*
*
2 pcs M3x30
