Sailor RT2048 VHF - Page 21

2 INSTALLATION RT2048
9346
Page 2-9

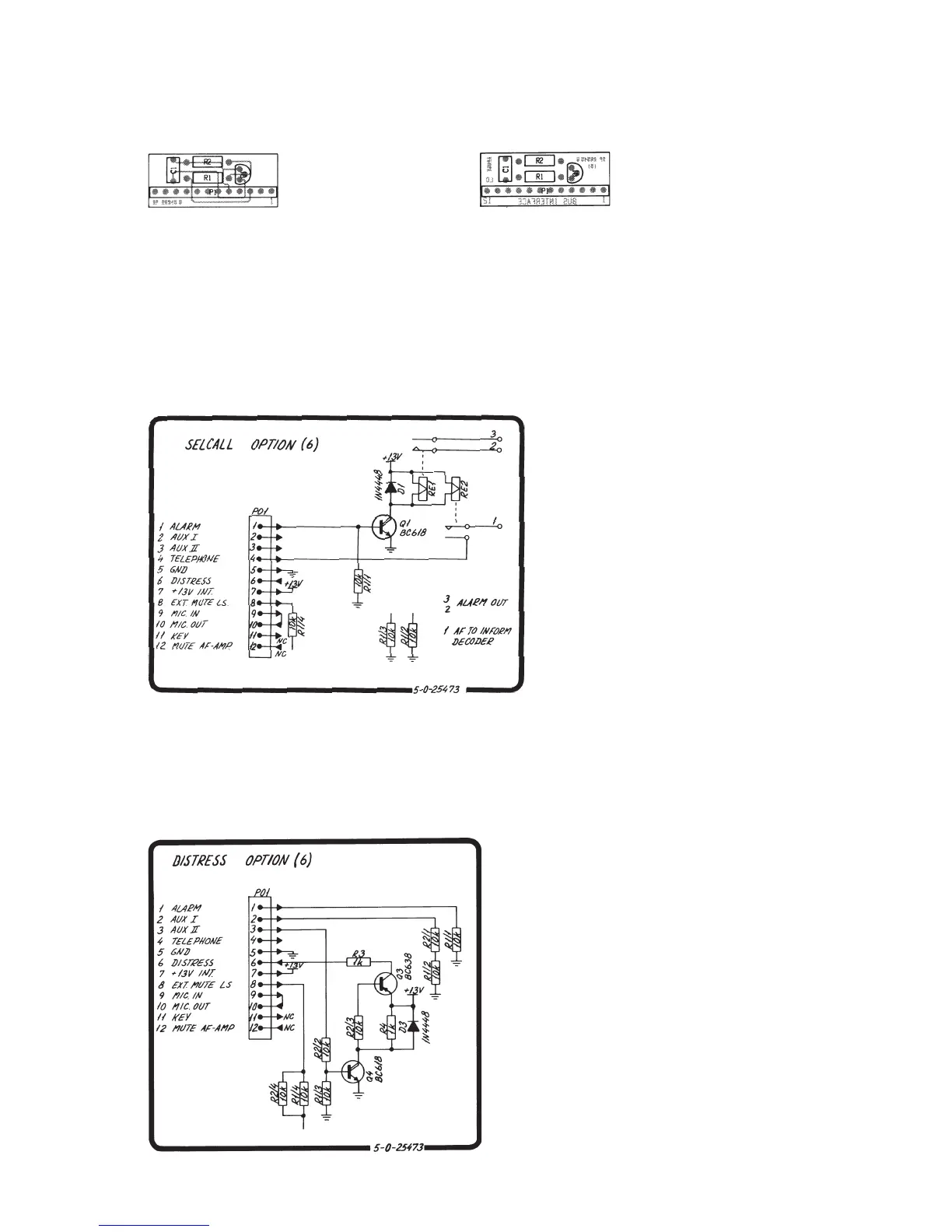

COMPONENT LOCATION FOR 626945
Seen from soldering side Seen from soldering side
with soldering side tracks. with component side tracks.
PCB rev. 26945
DIAGRAMMES FOR SPECIAL OPTIONS
625660
625661
