5. CIRCUIT DESCRIPTION AND SCHEMATIC DIACRAMS

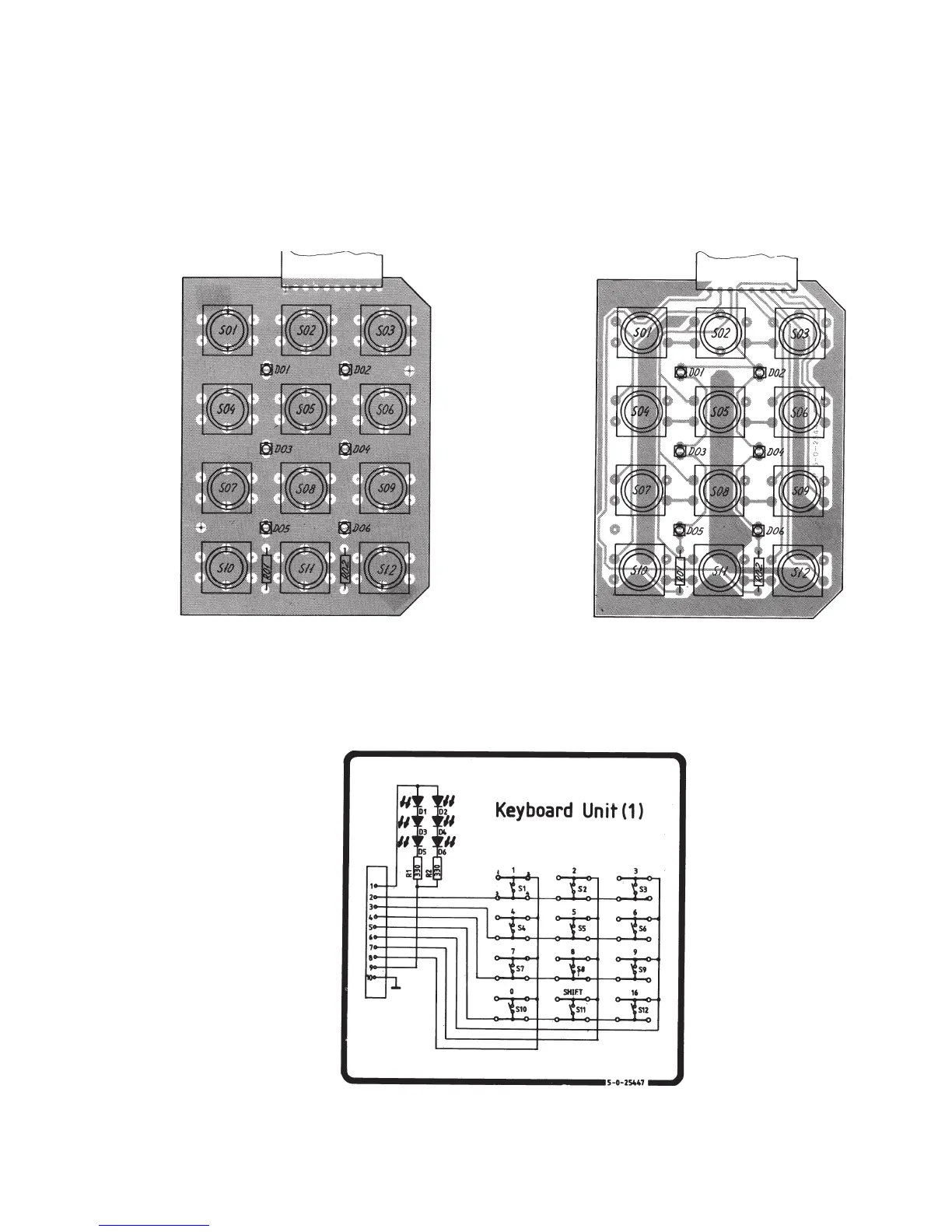

5.1. KEYBOARD UNIT (MODULE 1)

The keyboard unit comprises the 3 point 4 push button matrix, which is used for all the entries from the front panel

e.g. channel selection, 1W etc. Besides the LED-diodes for keyboard illumination is placed on this board.

View from component side

with upper side tracks.

View from component side

with lower side tracks.

Page 5-1

RT2048

RT2048A

4-6-25447D 4-0-25447
