Installation
RT4722
2.3.1 Placing the Aerials

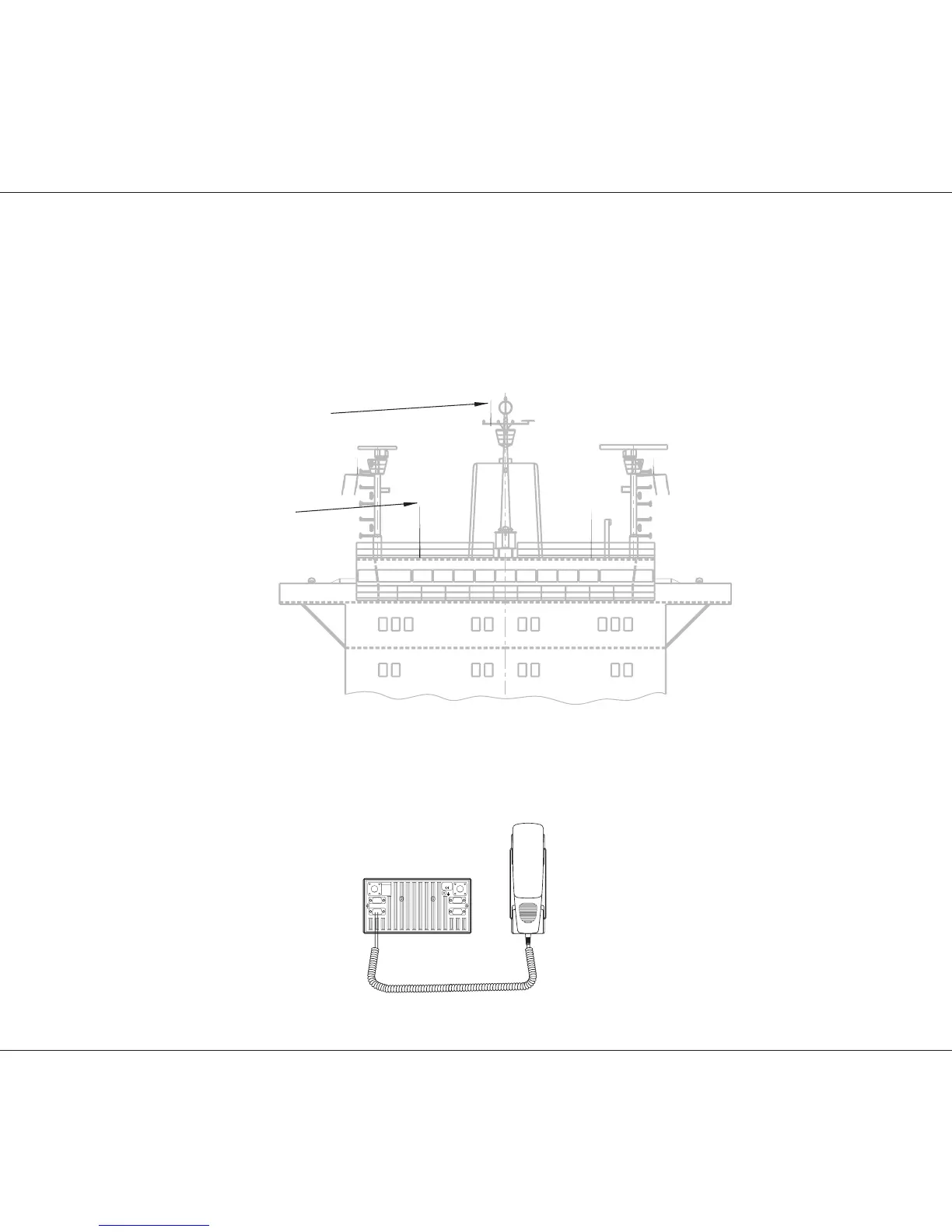

In a GMDSS CLASS A installation, there are always two aerials. These should be mounted in a place that is as high
and clear as possible - as illustrated below. Note that the primary transceiver aerial must be placed at a higher level
than the channel 70 receiver aerial.
Channel 70
receiver aerial
transceiver aerial
37035
Primary
2.4 Handset Connection
The handset is connected directly to the HANDSET plug at the back of the VHF set.
35405
Rx
/
Tx
12V DC
SPARC-BUS
OPTION
PRINTERHANDSET
9945
