Sailor RT4722 User Manual

13
Installation
RT4722
3
6282
Printer
56.127
VHF-DSC
Standard
printer cable
SPARC-BUS
HANDSET PRINTER
OPTION
/
Tx
Rx
12V DC

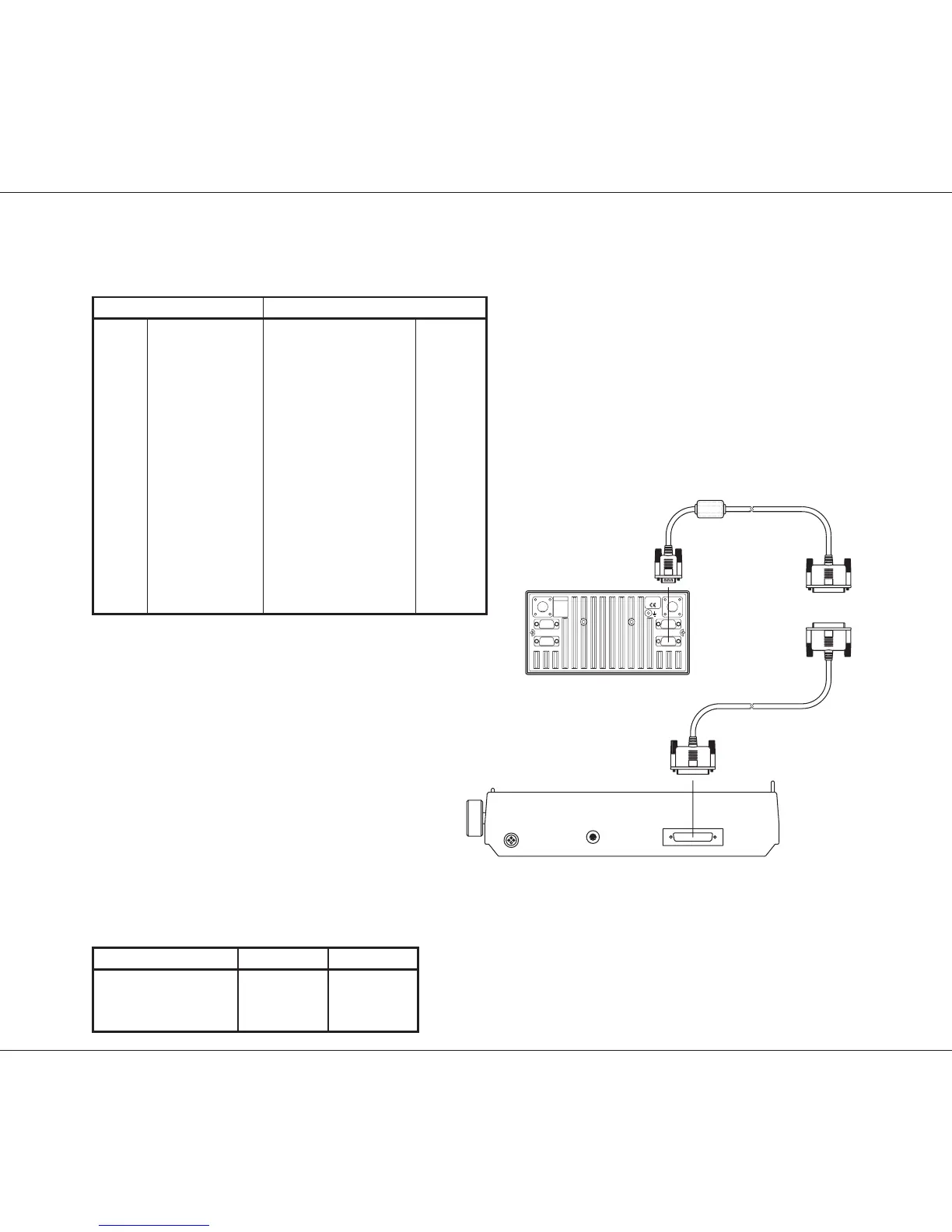

2.8.2 Interconnection Cable Specification For VHF Printer Connection
Printer Cable 56.127
15-pole SUB-D male 25-pole SUB-D female
pin 1 LPT_Error pin 15 -Error
pin 2 LPT_Init pin 16 -Init
pin 3 LPT_D1 pin 3 D1
pin 4 LPT_D4 pin 6 D4
pin 5 LPT_D7 pin 9 D7
pin 6 -BAT_0VDC pin 14 -Slct in
pin 6 -BAT_0VDC pins 18,19,..(to)..24,25 -Gnd
pin 7 LPT_Str pin 1 -Strobe
pin 8 LPT_D0 pin 2 D0
pin 9 LPT_D3 pin 5 D3
pin 10 LPT_D6 pin 8 D6
pin 11 LPT_Busy pin 11 Busy
pin 12 LPT_Select pin 13 Slct
pin 13 LPT_D2 pin 4 D2
pin 14 LPT_D5 pin 7 D5
pin 15 LPT_Auto_Feed pin 14 -Auto fd
For the connection to the printer you have to connect
the 15-pole SUB-D male to the VHF units printer
connection and the 25-pole SUB-D to a
standard printer cable (25-pole SUB-D - Centronic)
2.9 Compass Safety Distance
Unit Standard Steering
VHF-DSC DUPLEX 1.3 m 0.8 m
N420 0.6 m 0.3 m
N163S 1.2 m 0.7 m
