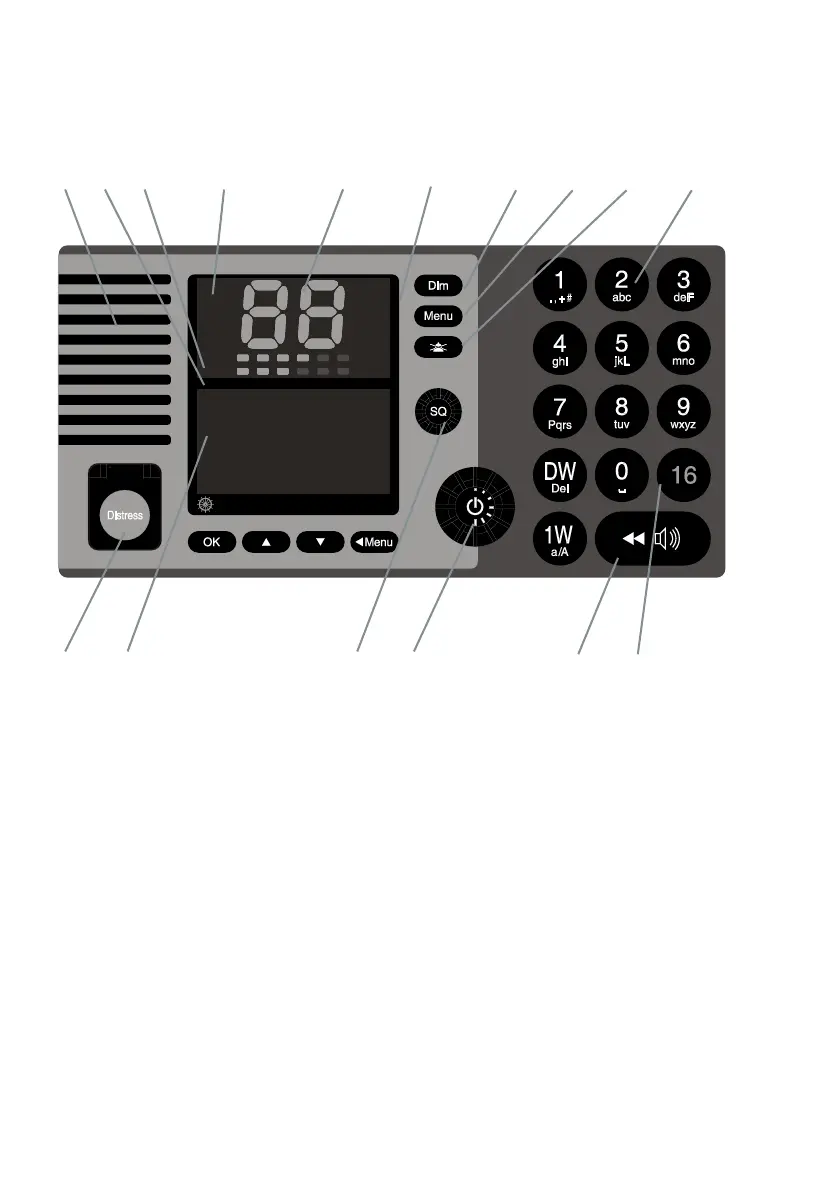

Your VHF at a glance
(RT5020/RT5022)
1. Loudspeaker
2. Volume level indicator
3. Squelch level indicator
4. Indicator lamps. Condition when lit:
1W: 1 watt transmission mode.
Alarm: Alarm call received.
Call: DSC call for you received.
DW: Dual watch mode
5. Telephone display
6. Indicators. Condition when lit:
Tx: Transmitting
Int: International channel system
activated
(Is used when sailing on any sea in the
world except in US waters)
US: US channel system activated
(Is used when sailing in US Waters)
BI: BI channel system activated
(Is used when sailing on the rivers of
Europe)
1 2 3 4 5 6 7 8 9 10
11 12 13 14 15 16
7. Dimming button
8. Menu button
9. Mute alerts
10. Keyboard.
11. DISTRESS button (Lid with spring.
Normal push button underneath)
12. Information/Message display
13. Squelch control. Adjust to silent when no
station is received
14. ON/OFF / VOLUME control
15. Replay button
16. Quick-selection key for channel 16.
iv
0611

Sailor RT5022 VHF DSC Specifications

General

Channel Spacing	25 kHz
Output Power	25 W / 1 W
Display	LCD
Weight	1.5 kg
GPS Interface	NMEA 0183
Operating Temperature	-15°C to +55°C
DSC Class	Class D
Channels	All international maritime VHF channels
