Workhorse
®
Servo Motor Safety Precautions
TheWorkhorseServoMotorisdesignedspecicallyforsewingmachinesand
is not warranted for other uses� Please follow the guidelines below to prevent
injury or damage to the motor/sewing machine�
• Conrmtheshaftofthemotorrotates
counterclockwise before operating the
sewing machine (See p� 4 “Changing Motor
Rotation” if the shaft rotates clockwise)�
• Do not operate the machine without the belt
covers installed�
• Do not touch any moving parts when
operating the Workhorse Servo Motor�
• Remove foot from the treadle when turning
the power ON�
• Turn the motor power switch OFF before
replacing or threading the sewing machine
needle�
• Turn the motor power switch OFF when
leaving the machine�
• When performing maintenance on the
sewing machine, turn the motor power
switch to the OFF position and remove the
power cord from the wall�
• To avoid injury or damage to the motor,
do not alter or tamper with the internal
components of the motor�
• Donotcoverthemotor’sventilation;itcan
cause the motor to overheat�
Changing Motor Rotation

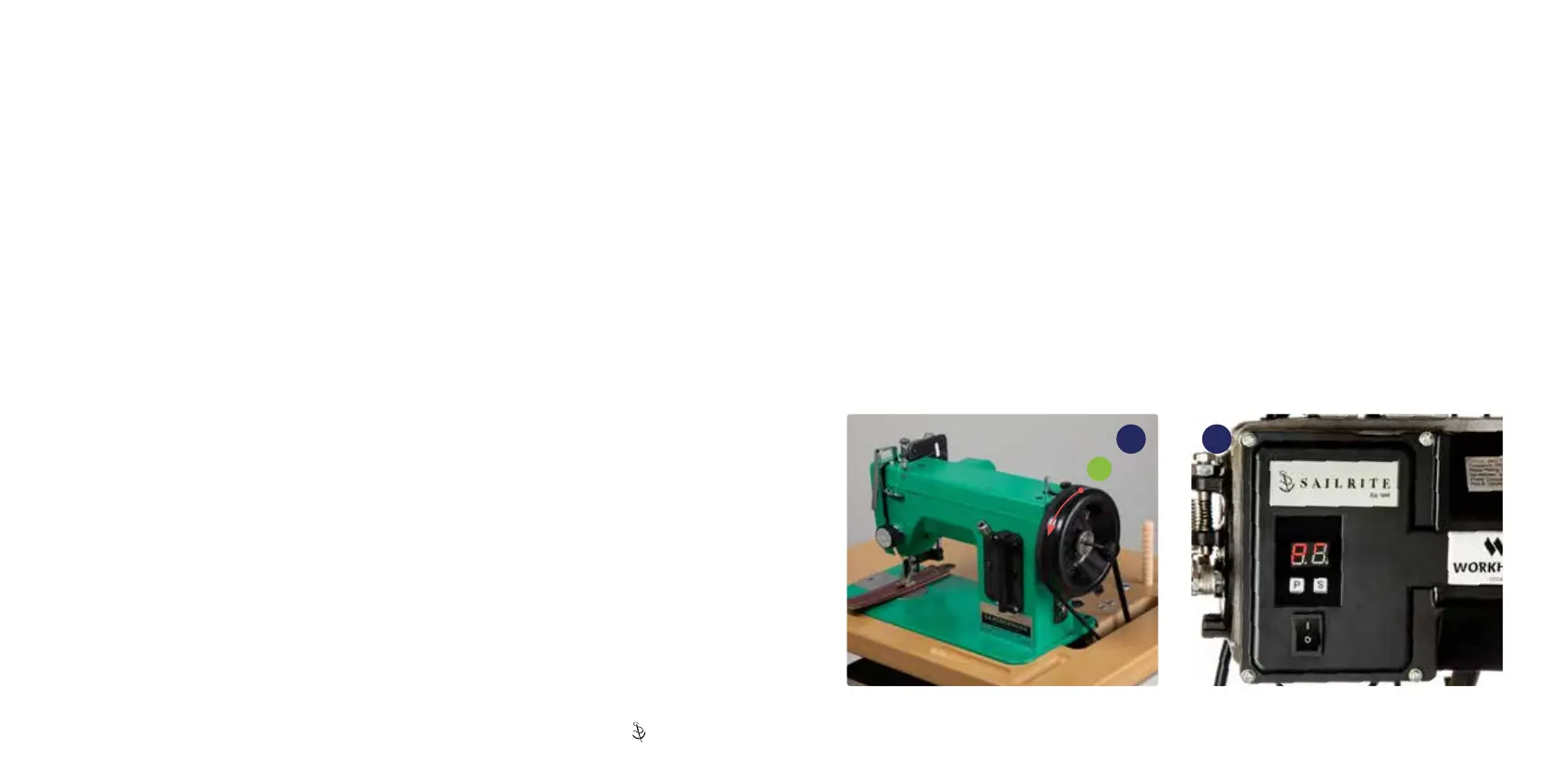

Make sure the motor is always running in a counterclockwise direction (A)�
If the balance wheel is spinning the opposite direction from (
5), follow the instructions below to
reverse the direction�
1� Turn motor on� The standby screen will show a “P” with a rotating dash�
2� Press the “P” button four times until the LED display reads “n3�”
3� Press the “S” button multiple times to select between “0” and “1�”
4� Select “1” and the motor will run clockwise�
5� Select “0” and the motor will run counterclockwise (this is the setting the motor should be on)�
6� Press the “P” button to save the selection of “0�”
7� Turn motor off then on�
