PDS33 Series
- 17 -

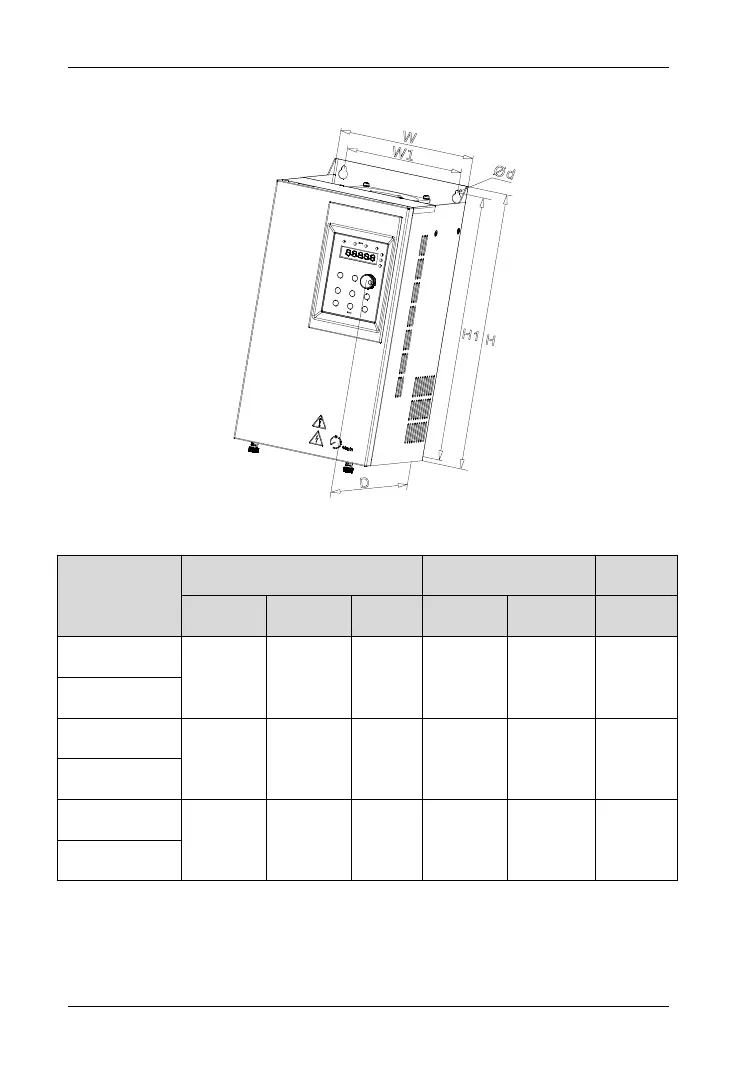

Figure 3 11kW-37kW Outline Dimension
Type
Outline Dimension
Installation Dimension
Hole Size
H
W
D
H1
W1
d
PDS33-4T011
360
182
197
331
156
7
PDS33-4T015
PDS33-4T18R5
385
219
197
356
156
7
PDS33-4T022
PDS33-4T030
442
256
228
414
199
7
PDS33-4T037
