PDS33 Series
- 18 -

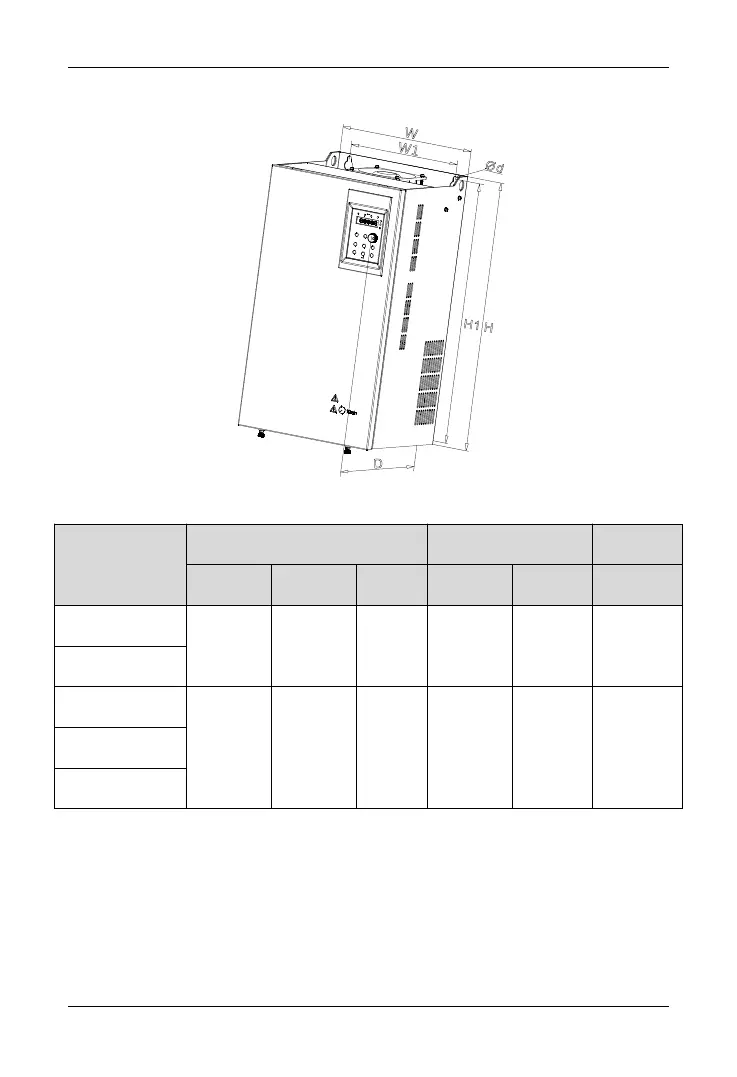

Figure 4 45kW-110kW Outline Dimension
Type
Outline Dimension
Installation Dimension
Hole Size
H
W
D
H1
W1
d
PDS33-4T045
557
300
282
524
245
10
PDS33-4T055
PDS33-4T075
597
338
322
560
270
10
PDS33-4T093
PDS33-4T110
