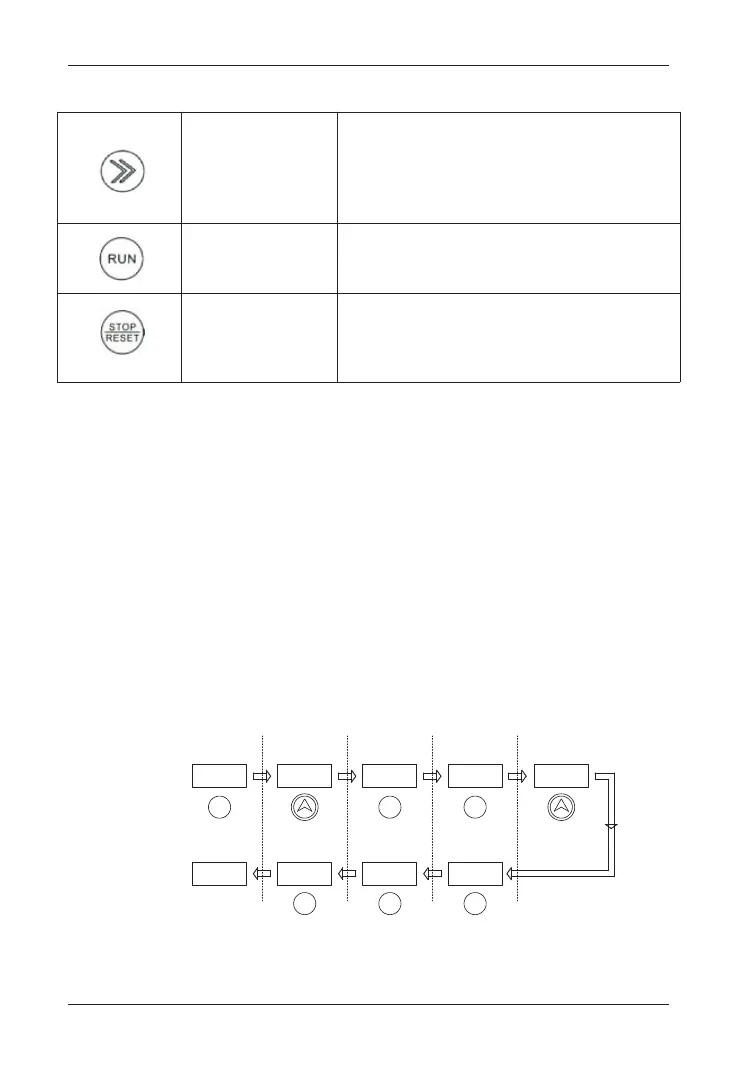

shift key
Use it to select displayed parameters cyclically
during running or stop status. In parameter setting
mode, press this key to select the bit to be
modified.
run key
Start to run the controller in keypad control
mode.
stop/reset key
In running status, use it to stop the controller.
In malfunction alarm status, use it to reset the
controller.
4.2 Keypad Operation Process
4.2.1 Parameter Setting
Three levels of menu are as following：
• Function code group (first-class)
• Function code (second-class)
• Setting parameter of function code (third-class)
In order to set up the electric automatic start function F7.09=1 as an example, the
modified parameter flow chart is as follows:
Figure 16 Schematic Diagram of Function Parameters
Display
Reading:
Button:
Stand By Status
0.00
f0
First Class
f 7
f7 .09
PRG
ENTERENTER
First Class Second Class
0.00
f
d
f7 .1 0
1
0
Third Class
Run Status First Class Second Class Third Class
Value Now
New Value
ENTER
PRGPRG
(Frequency/HZ)
(Frequency/HZ)
Display
Reading:
Button:
