6.3. CONNECTION OF MCB MAIN BOARD
RC - Remote controller

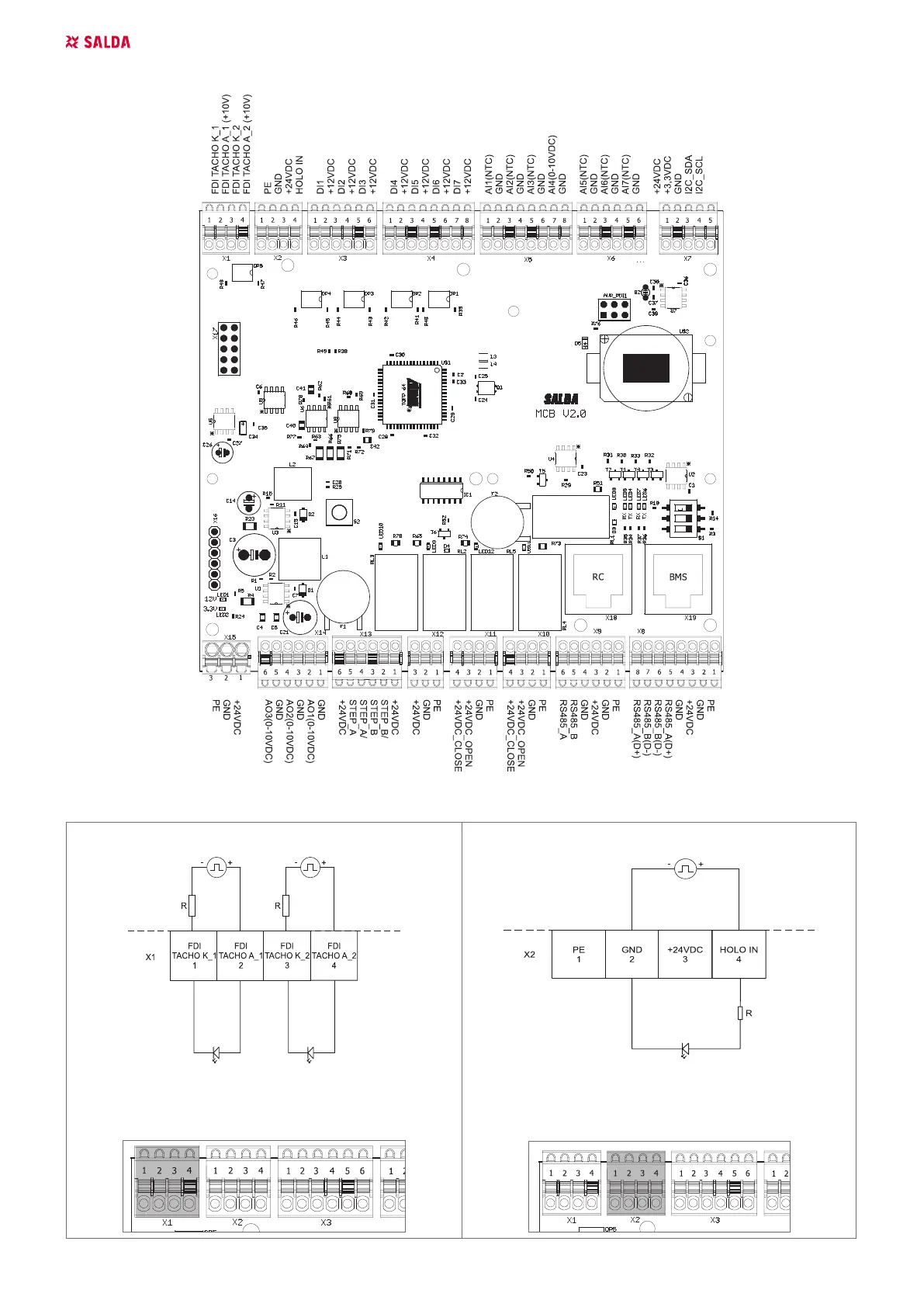

6.3.1. CONNECTION OF FDI_TACHO INPUTS (MCB)
U
f
= 1,5 V; I
f
min. = 1 mA; I
f
max. = 50 mA
NOTE: the indicated U
f
and I
f
parameters shall not be exceeded.
6.3.2. CONNECTION OF HOLO_IN (MCB)
R = 1 kΩ; U
f
= 1,5 V; I
f
min. = 1 mA; I
f
max. = 50 mA
NOTE: the indicated parameters shall not be exceeded.
