Salda MCB - Connection of Minimcb Ex1 Board; Connection of Air Quality Sensor (Air Quality Sensor) (Mini Mcb Ex1); Connection of Analogue Outputs (Ao (0-10 V)) (Mini Mcb Ex1)

EN | 37MCB_miniMCB v2019.1

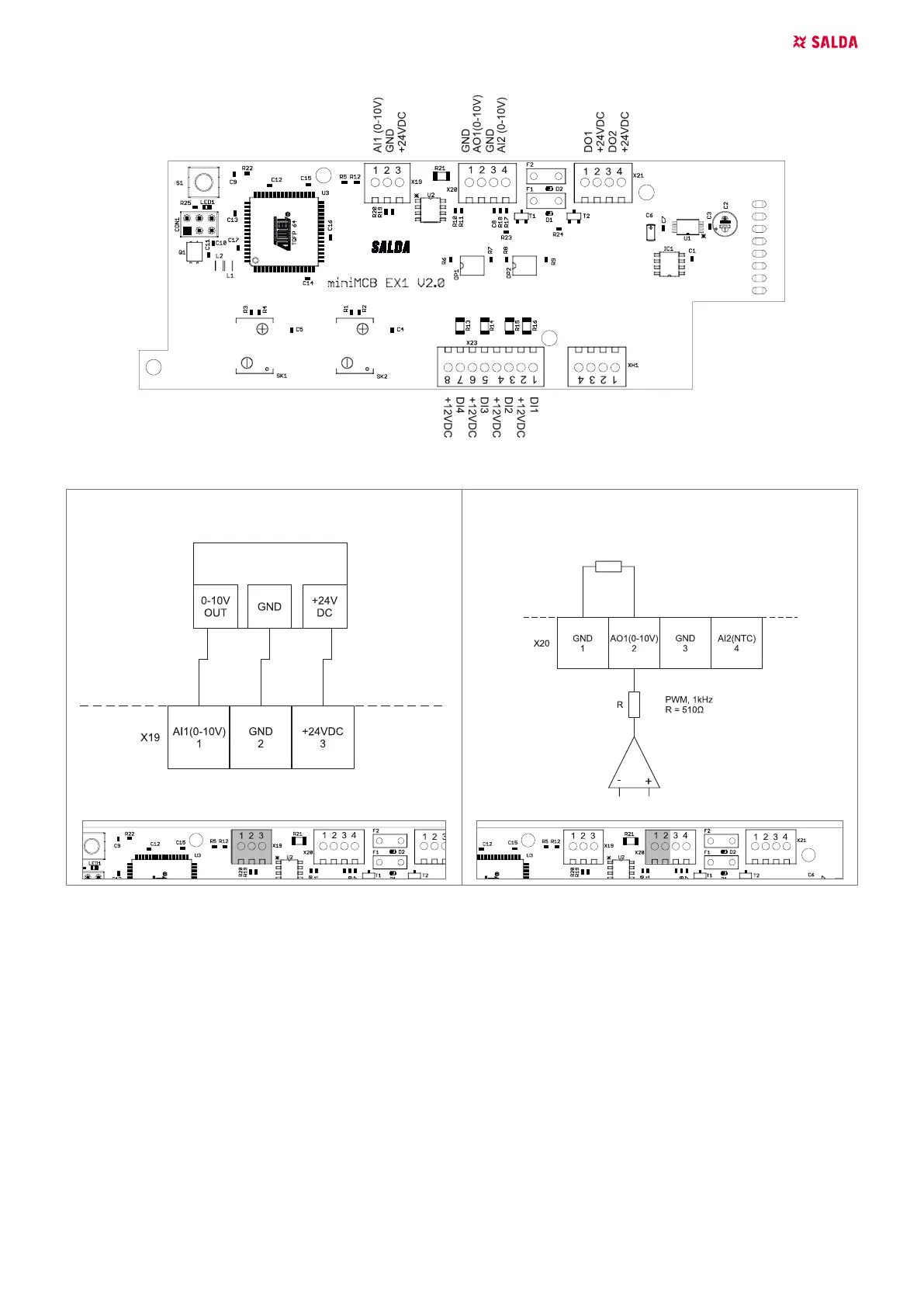

6.7. CONNECTION OF MINIMCB EX1 BOARD
GND
5VDC
GND
5VDC
CEAFP PCSAF
CEAFP - Current exhaust air-ow pressure; CSAFP - Current supply air-ow pressure.
6.7.1. CONNECTION OF AIR QUALITY SENSOR (AIR
QUALITY SENSOR) (MINI MCB EX1)
AQS
AQS - air quality sensor
GND
5VDC
GND
5VDC
CEAFP PCSAF
6.7.2. CONNECTION OF ANALOGUE OUTPUTS (AO
(0-10V)) (MINI MCB EX1)
LOAD
GND
5VDC
GND
5VDC
CEAFP PCSAF
