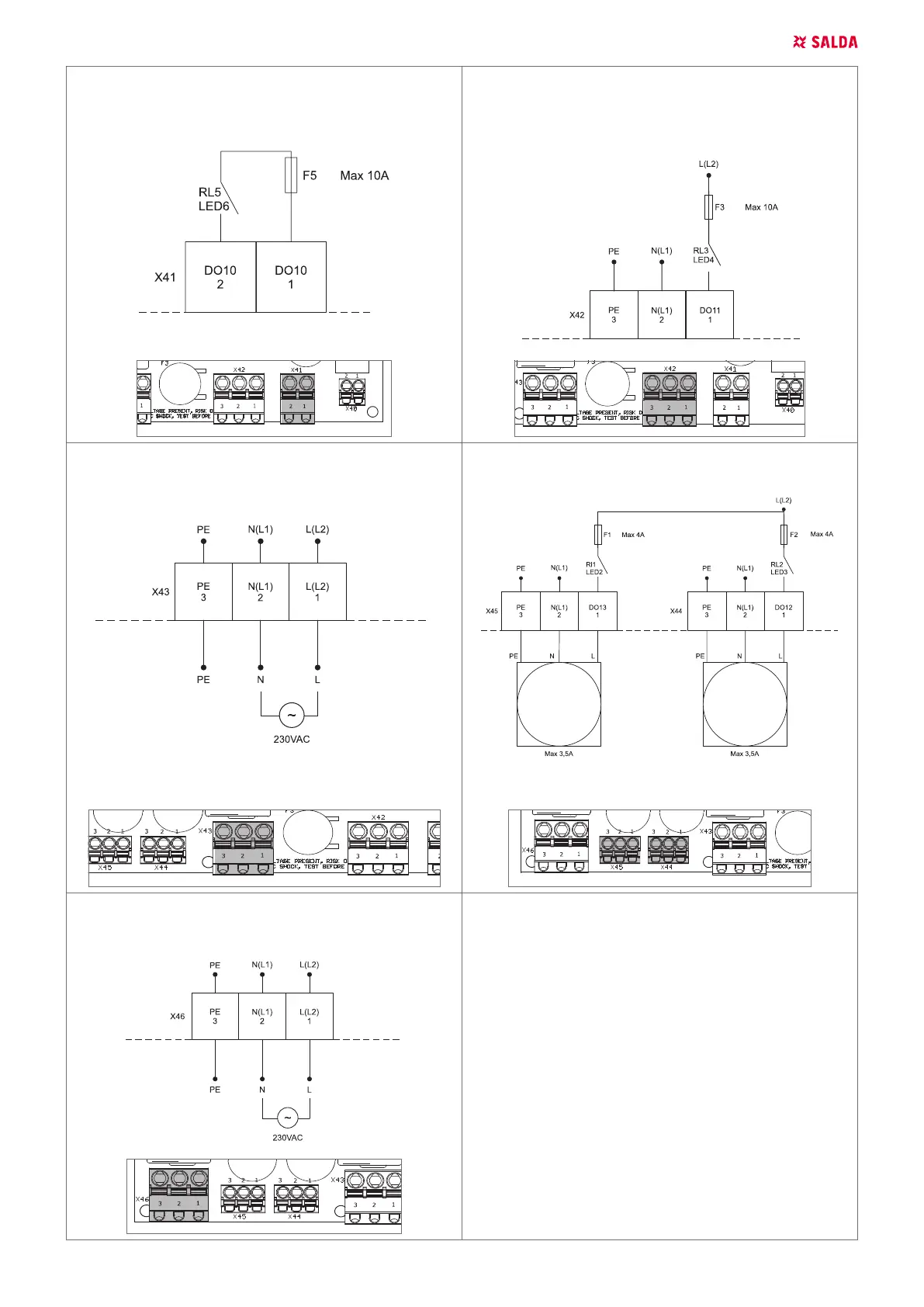

6.5.9. CONNECTION OF REVERSE CONTROL TO
FREON COOLER (EX2)
RL5 open - cooling; RL5 colose - heating
6.5.10. POWER SUPPLY CONNECTION TO
PRE-HEATER/CONNECTION OF CIRCULATION
PUMP (EX2)
6.5.11. POWER SUPPLY CONNECTION TO TERMI-
NAL X42 (EX2)
6.5.12. POWER SUPPLY CONNECTION TO SUP-
PLIED/EXHAUSTED AIR FANS (EX2)
SuF ExF
SuF - supply fan; ExF - extract fan
6.5.13. POWER SUPPLY CONNECTION TO TERMI-
NALS X44 AND X45 (EX2)
