6 | EN STOUCH v2019.1
5. RS485 A (Modbus)
6. GND
7. 0-10 VDC input (used for pressure or CO
2
sensor). The sensor is powered from a separate power
source.
8. 0-10 VDC output (used for control of 0..10 VDC fans).
1. NOTICE: when the remote controllers are used with air-quality converter (the power
supply and analog output GND of witch are not electrically separate), then constant volt-
age (DC) has to be used for their power supply.
2. NOTICE: The power source must be selected according to the used currents of the
remote controller and air quality converter. Power source is not supplied with the remote
controller.
5. RECOMMENDATIONS FOR CONNECTION OF THE REMOTE CON-
TROLLER TO OTHER DEVICES

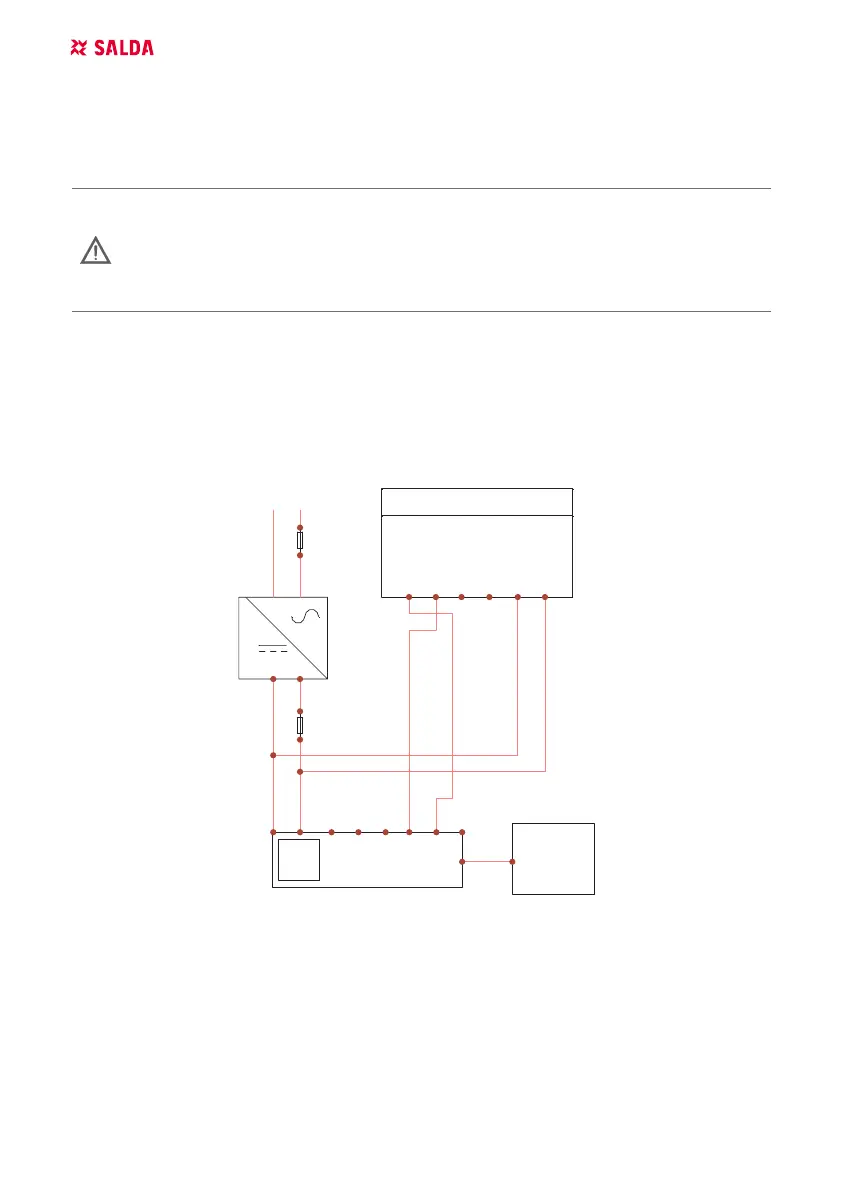

5.1. WHEN CONTROL PANEL IS USED WITH AIR HANDLING UNIT WITH
INTEGRATED AUTOMATICS
Vin
GND
A
B
GND
AO1
IP54
Duct CO2transsmiter S-KCO2 (DSC-G)
-A 2
-S Touch
CON1
-F
-F
AHU
RS485_
2
LN
-G
230VAC_24VDC
1 - 24VDC/AC
2 - 24VAC/DC
3 - GND
4 - RS465-B
5 - RS485-A
6 - GND
7 - 0 - 10VDC IN
8 - 0 - 10VDC OUT
F - Fuse
G - constant voltage
(DC) power supply
M1 - EKO fans
