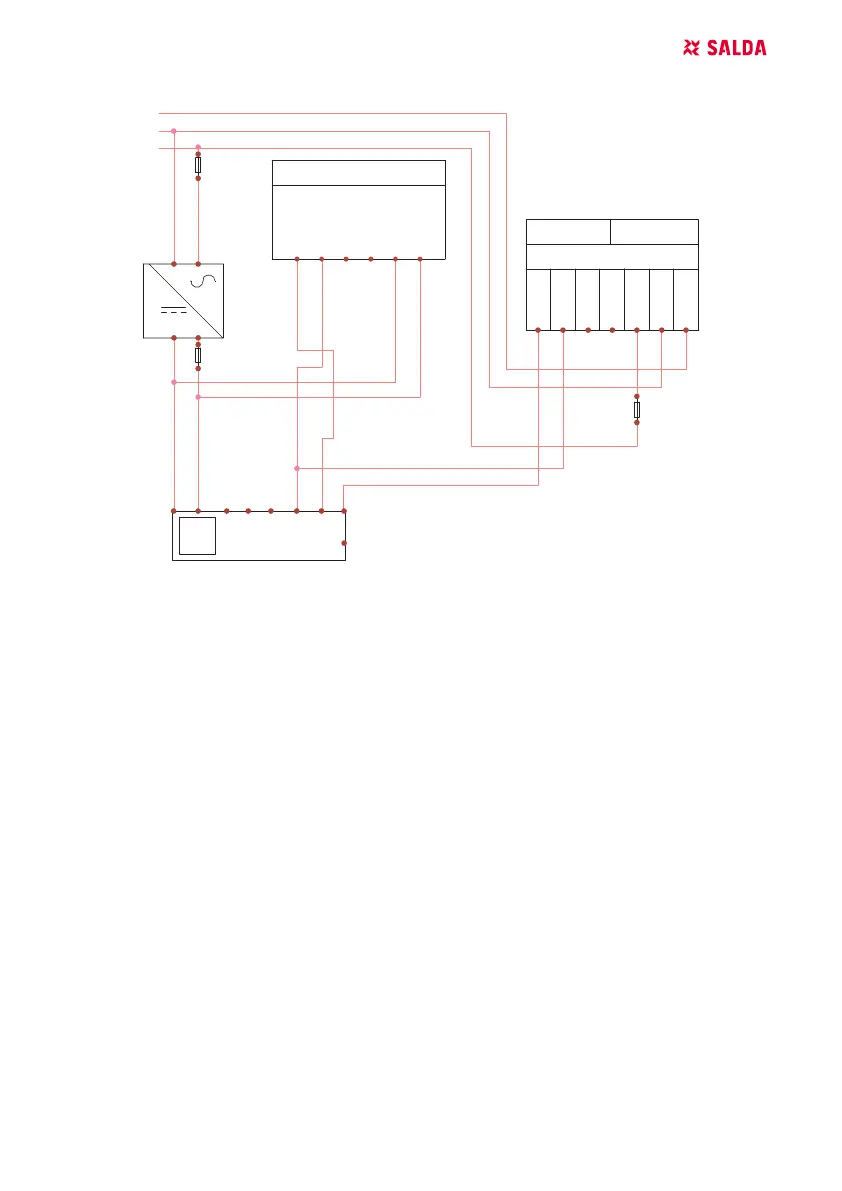

5.2. WHEN THE REMOTE CONTROLLER IS USED WITH EKO FANS
-M1
2,5kW/4A
2970min-1
PE
N
L
+10V
T acho
GND
0-10V/PWM
-F
-F
-F
-STouc h
CON1
1 - 24VDC/AC
2 - 24VAC/DC
3 - GND
4 - RS465-B
5 - RS485-A
6 - GND
7-0-10VDC IN
8 - 0 - 10VDC OUT
Vin
GND
A
B
GND
AO1
IP54
Duct CO2transsmiter S-KCO2 (DSC-G)
-A 4
N
L
PE
-G
230VAC_24VDC
NOTICE: The power source, security elements, and other components necessary for installation
are not supplied.
6. INFORMATION FOR USER
• Controller allows easy setting of sound, temperature, sleep mode and CO
2
level parameters from
the user menu.
• Fast button for setting maximum speed.
• Numerical display of set and supply air temperature.
• Selected speed LED indication.
• Symbolical display of active alarms: A.01, A.02, etc., and LED indication.
• Controller sleep mode to reduce power consumption.
• Selectable ventilation system switch o󰀨 locking feature.
• “Child safety feature” - locks the controller.
