2 Product Specifications

2-6 SAM4S SAP-630 SERIES

2-5 Interface Specifications

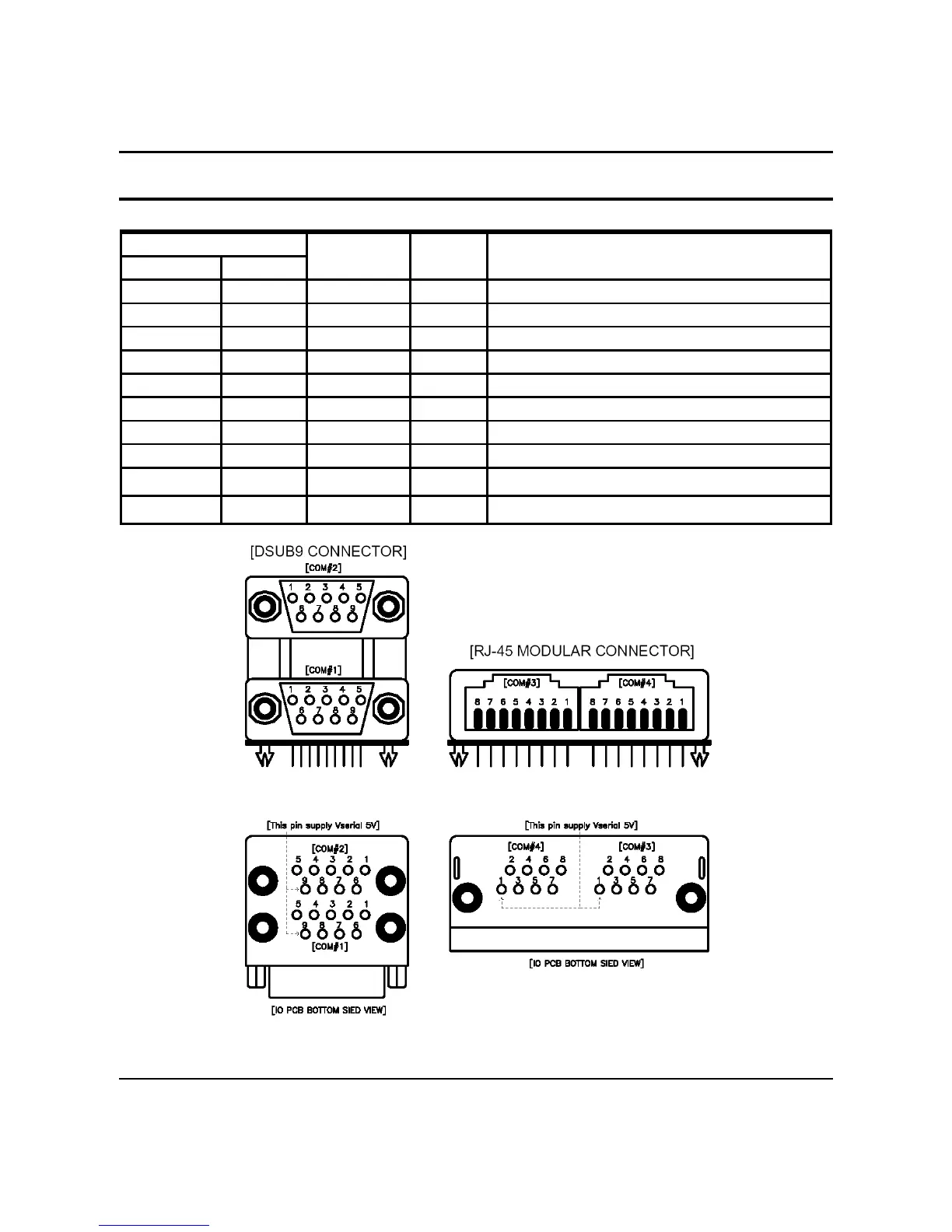

2-5-2 RS-232C Signal Description

PIN NO

Signal Name Direction Function

DSUB9 RJ45

1 - DCD IN Carrier Detect

2 4 RXD IN Receive Data

3 3 TXD OUT Transmit Data

4 DTR OUT Data Set Ready

5 7 GND - -

6 DSR IN Data Terminal Ready

7 8 RTS OUT Request To Send

8 2 CTS IN Clear To Send

RI IN

Ring Indicator

9 1 +5V/500mA -

Total Power : 1A (COM#1,#2 : Pin9, COM#3,#4 : Pin1 )
