2 Product Specifications
SAM4S SAP-630 SERIES 2-7
2-5 Interface Specifications

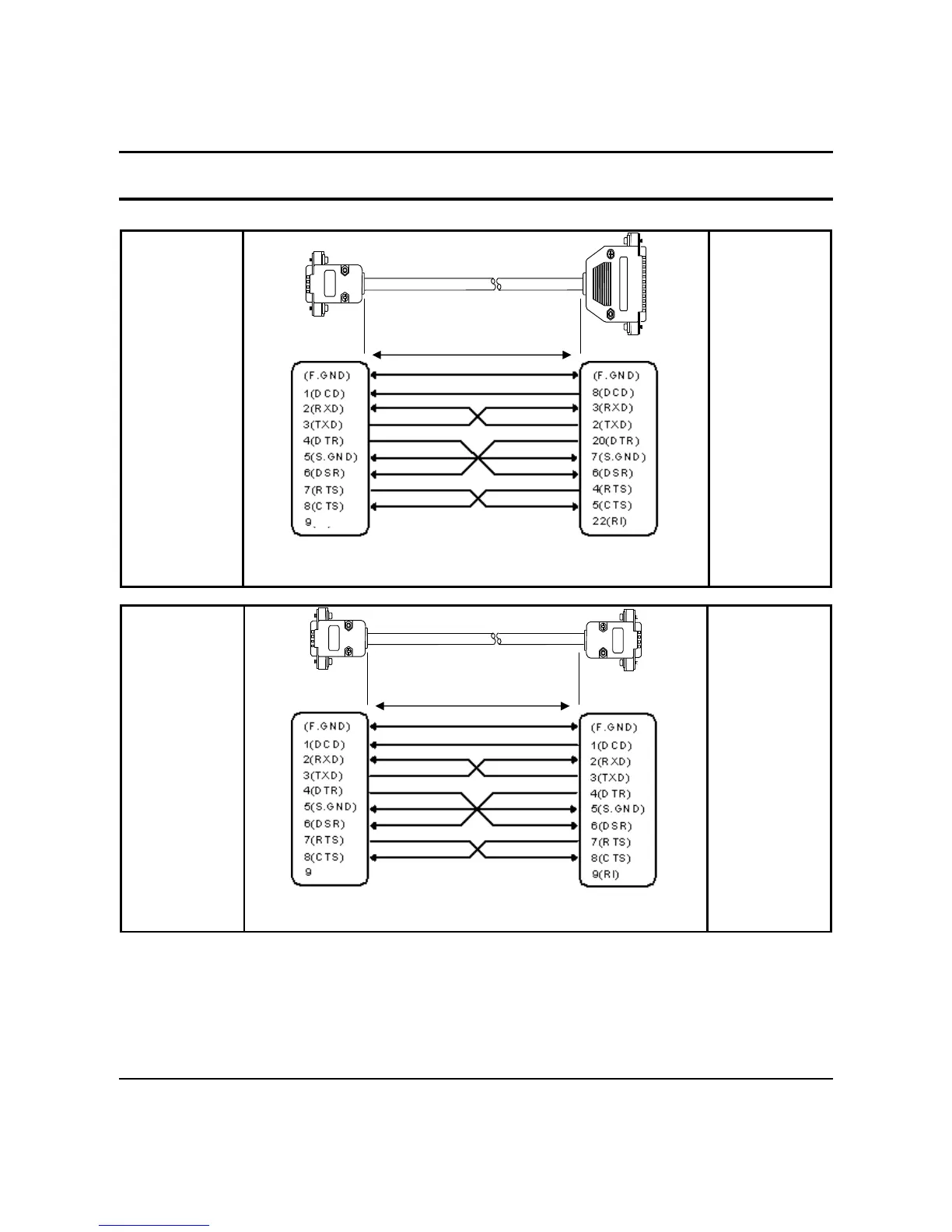

2-5-3 RS-232C Interface Cable (COM1, COM2)
SAP-630 SIDE
(DSUB9 FEMALE)
(+5V)
( PIN CONNECTION )
USER SIDE
(DSUB25 MALE)
SAP-630 SIDE
(DSUB9 FEMALE)
(+5V)
( PIN CONNECTION )
USER SIDE
(DSUB9 MALE)
CAUTION :
COM#1~COM#2 supplies “+5V” to DSUB9 “Pin Num 9”.
15m
15m
