Sam4s SAP-630 Series User Manual

3 Installation and Operation
3-32 SAM4S SAP-630 SERIES
3-7 Installation
3-7-3 Installation of MSR Assembly
1. Connect Ground Wire & MSR Harness of MSR Assembly to the main set as shown in Figure 3-4-○
1
-○
a
.
2. Tidy up the connectors of Ground Wire & MSR Harness by inserting them into the MSR Assembly
(Connectors should be hidden inside the MSR Assembly), Figure 3-4-○
1
-○
b
.
3. Insert MSR Assembly into the main set bracket holes as in Figure 3-4-○
2
, Figure 3-4-○
3
.
4. Tighten MSR Assembly by moving it to the direction shown in Figure 3-4-○
4
.

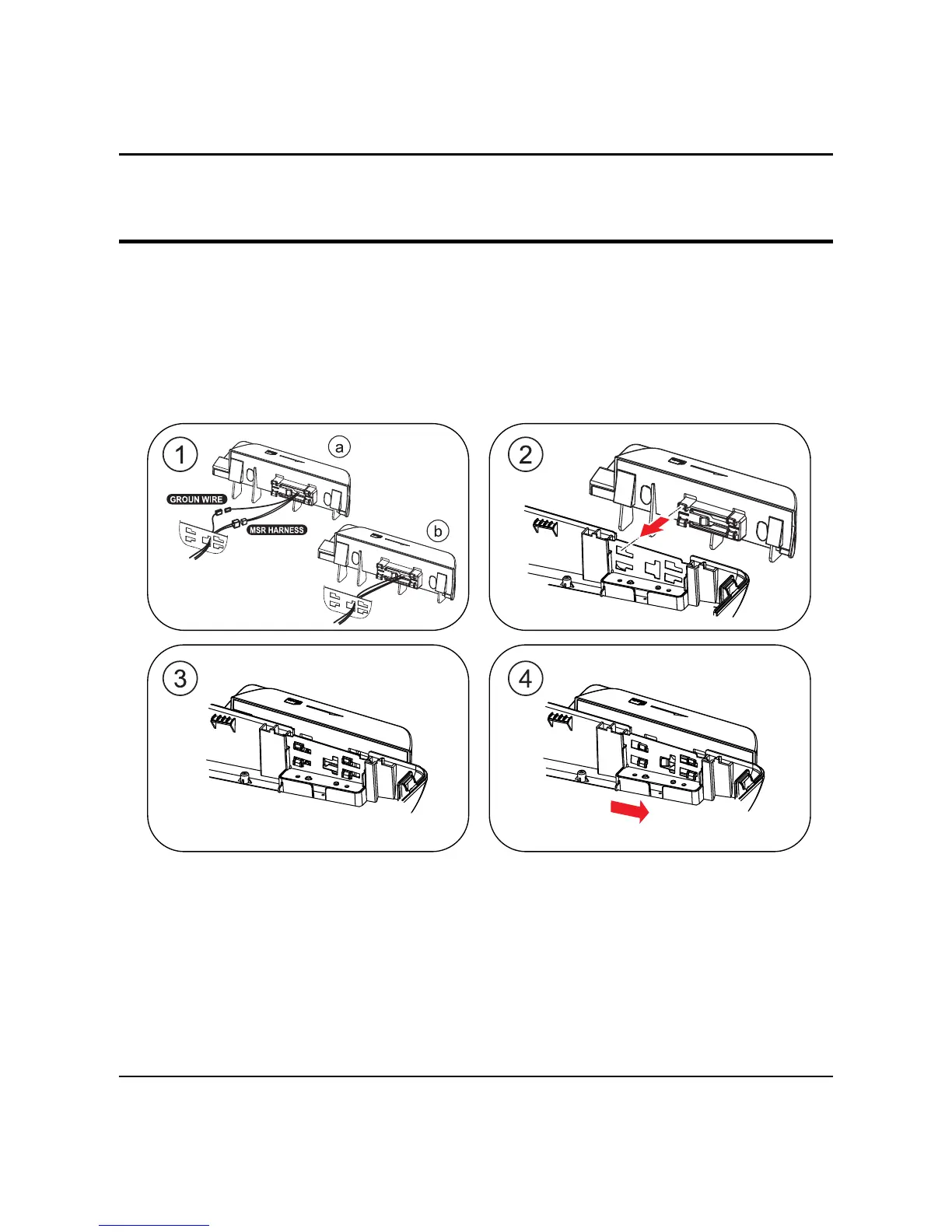

Figure 3-4 MSR Installation (2)
