Samlexpower SAM-250-12 - Inverter Layout and Components; Model-Specific Component Identification

6 | SAMLEX AMERICA INC.
78 9
1
2
3
4
5
6
1
2
3
4
5 6
7
8
9
1
2
45
6
3
78 9

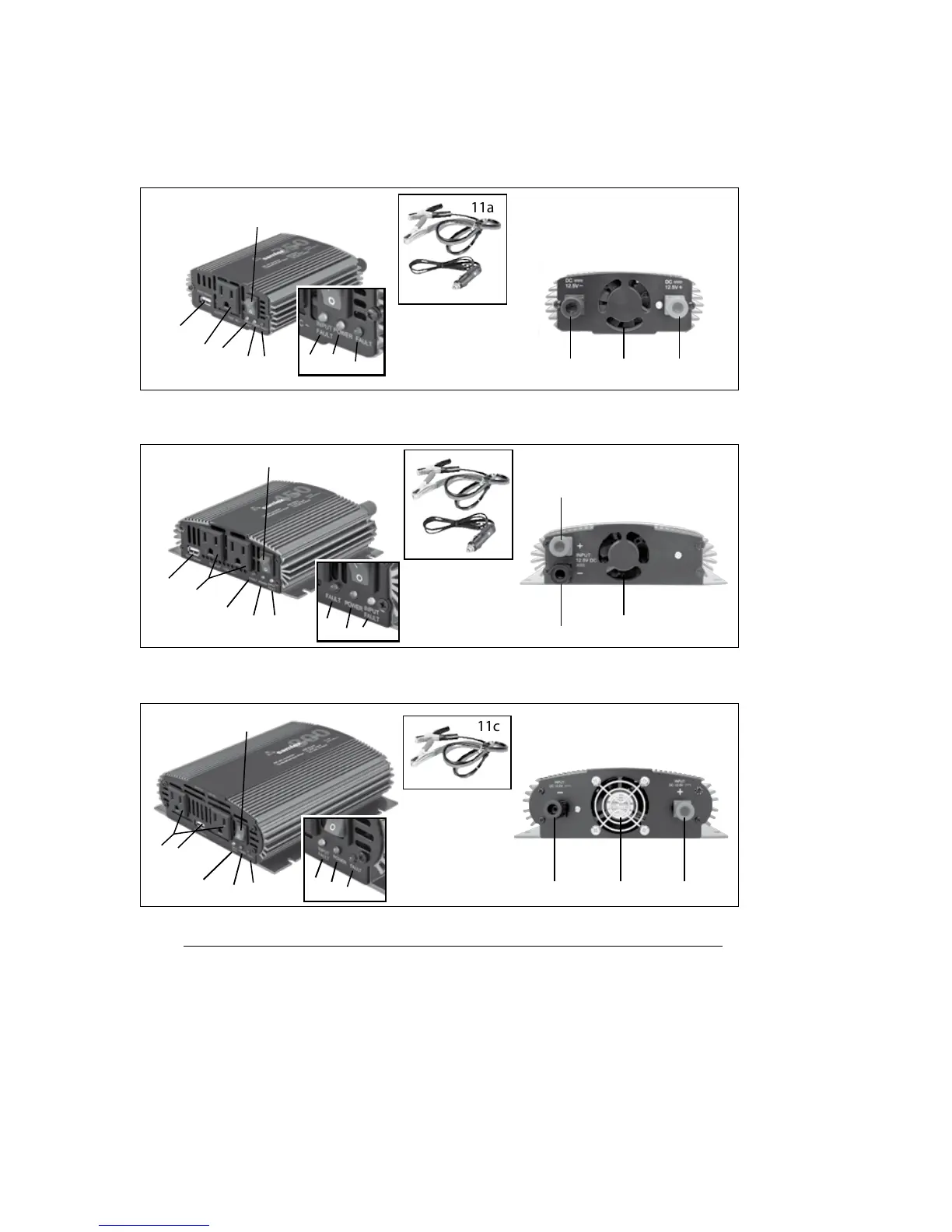

Fig. 3.1 – SAM-250-12 Inverter
Fig 3.3 – SAM-800-12 Inverter
Fig. 3.2 – SAM-450-12 Inverter
4
5
6
4
5 6
4
5
6
11a
11b
11c
10
10
SECTION 3 | Layout
1. ON/OFF Switch
2.
N
EMA5-15R Outlet
3. USB Port 3.0, Type "A", 2.1A
4. RED LED "Fault"
5. GREEN LED "Power"
6.
Y
ELLOW LED "Input Fault"
7. (+) Positive DC Input Terminal
(M4 Thumb Screw)
8.
(-) Negative DC Input T
erminal
(M4 Thumb Screw)
9. Opening for fan ventilation
10. Battery Cable with 12V Power Plug
11. Battery Cable with Battery Clamps
- 11(a) For SAM-250-12 (AWG#14)
- 11(b) For SAM-450-12 (AWG#12)
- 11(C) For SAM-800-12 (AWG#8)
LEGEND
