Sammy Atomiswave - Other Component Descriptions; Speaker Volume and Modem Terminal; DIP Switch (SW) Functions

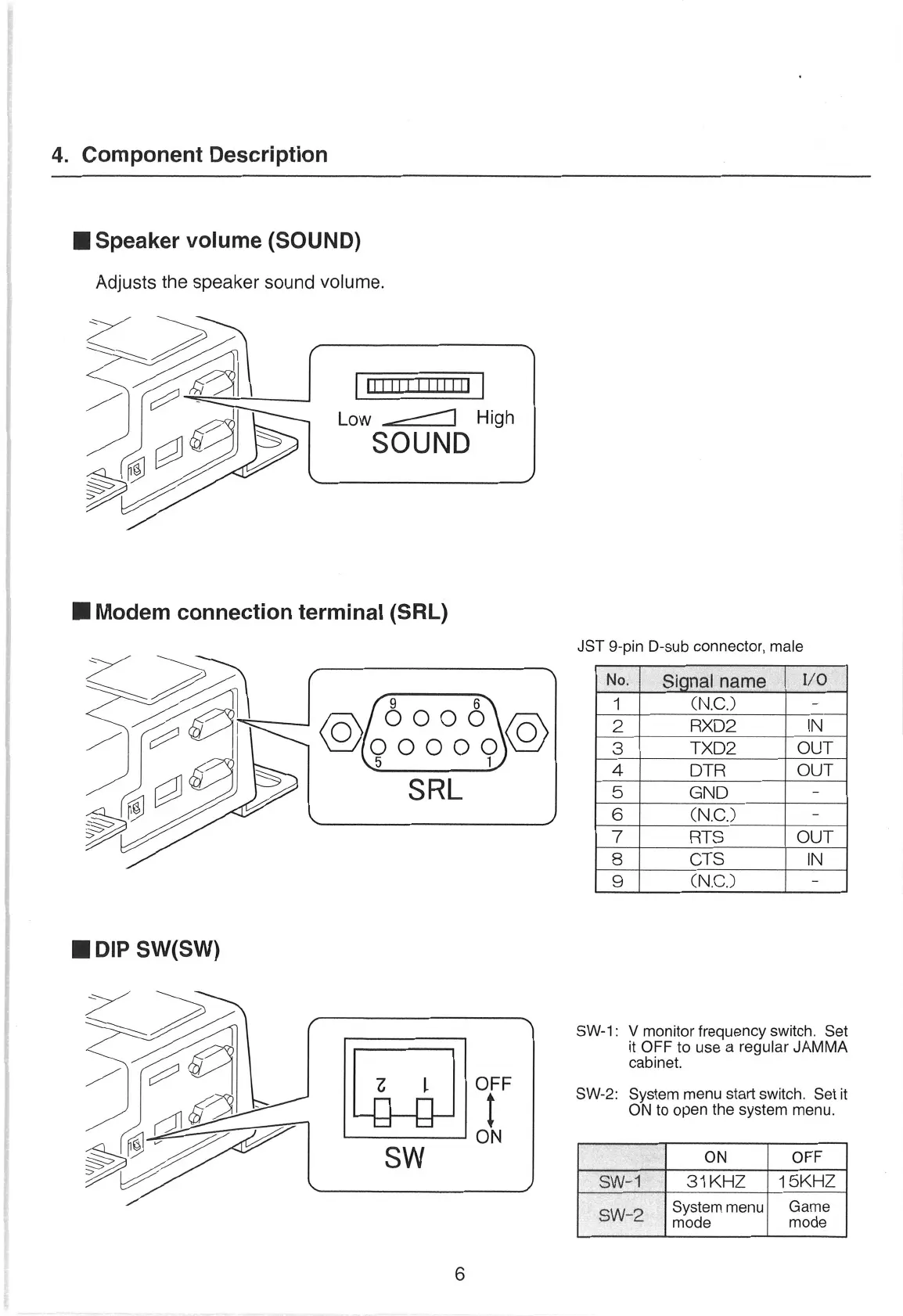

4. Component Description
i
Speaker volume
(SOUND)
Adjusts
the speaker sound volume.
[ [ ooo |
Low
==]
High
SOUND
JST 9-pin D-sub connector, male
No. | Signalname | 1/0
1
(N.C.)
a
2 RXD2 IN
3 TXD2 OUT
4 DTR OUT
5 GND 7
6
(N.C.)
=
T RTS OUT
8
CTS IN
9
(N.C.)
=
SW-1: V monitor frequency switch. Set
it OFF
to
use
a
regular
JAMMA
cabinet.
SW-2: System menu start switch. Set it
ON to open the system
menu.
ON OFF
SW-1 31 KHZ 1 5KHZ
System
menu}
Game
SW-2 oda mode
