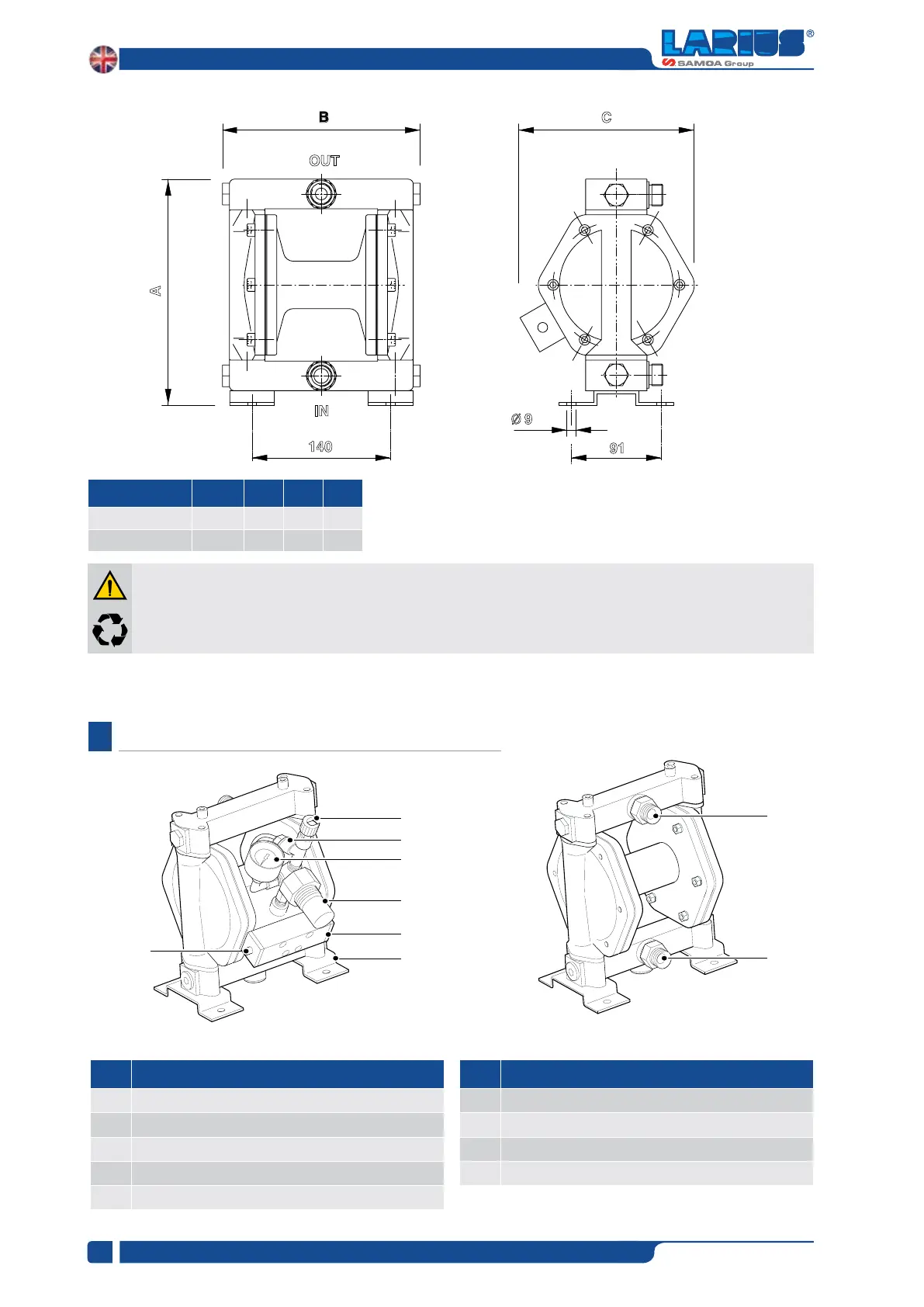

Samoa Larius 2 Transfer - D DESCRIPTION OF THE EQUIPMENT

IN
OUT
A
B C
140
91
Ø 9
D
Type of pump Cod. A B C
Aluminium 8000 230 200 175
Stainless steel 8132 280 190 175
Pos. Description
1 Pump feed air inlet
2 Exchange valve air supply pipe
3 Pump feed air manometer
4 Pump feed air pressure regulator
5 Pilot valve
Pos. Description
6 Pilot valve reset push button
7 Pump fastening and supporting bracket
8 Material inlet fitting
9 Material outlet filling
Always observe these instructions carefully when evaluanting the product compatibility and i case of disposal
of some parts of the pump no more usable in order to meet the environmental regulations on recycling process.
DESCRIPTION OF THE EQUIPMENT
Fig. 1C
Fig. 1D Fig. 2D
