Installation
3
4
2
6
10
11
7
5
12
8
1
p
1
p
2
9
1 Body
2 Seat
3 Plug
4 Balancing diaphragm
5 Rod-type yoke
6 Plug stem
7 Stem connector
8 Actuator
9 Hex nut
10 Stem connector
11 Adapter
12 Hex nut

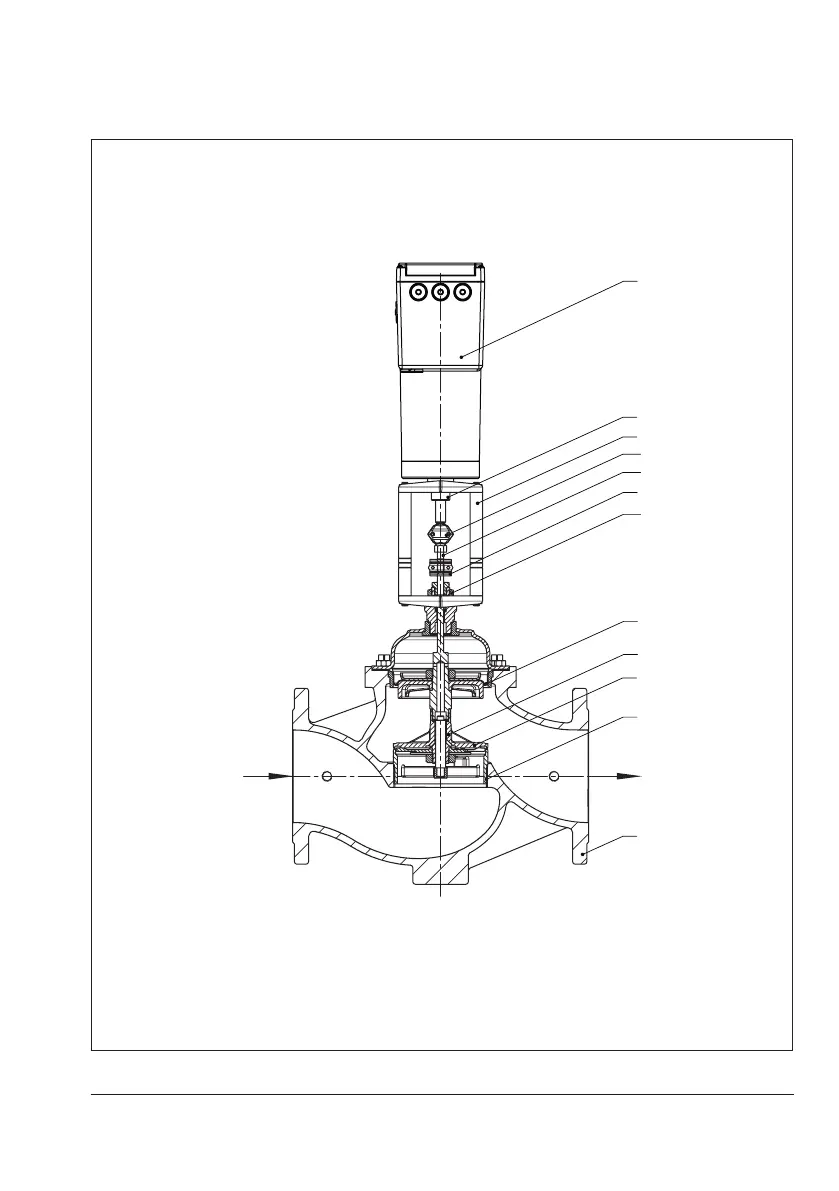

Fig.5-2: Type3214 with Type3374 Electric Actuator
