XPDm Digital Wireless
8
1. Status Indicator - This LED displays the operation
mode. Amber: Normal Operation
Flashing Amber: Pairing / Low Battery
2. Power/Pair Switch - Press <5 seconds to turn the
unit on or off. Press >5 seconds to enter pairing
mode.
3. Battery Cover - Unscrew the battery cover and
slide down to open the HXD1 Handheld battery
compartment.
4. Battery Holder - Open the battery holder by
pressing the tab and lifting the cover. Insert two
standard AA (LR6) batteries here, being sure to
observe the plus and minus polarity markings
shown.
WARNING: Do not insert the batteries backwards;
doing so can cause severe damage to the
transmitter and will void your warranty.
5. Input GAIN Control - This control adjusts the
transmitter input sensitivity. This input sensitivity
control has been factory preset to provide
optimum level for the particular microphone
capsule provided with the XPDm system and
so we recommend that this not be adjusted
manually. If necessary, however, you can use the supplied screwdriver to raise or
lower the input level.
6. Screwdriver - Used to adjust the input GAIN control.

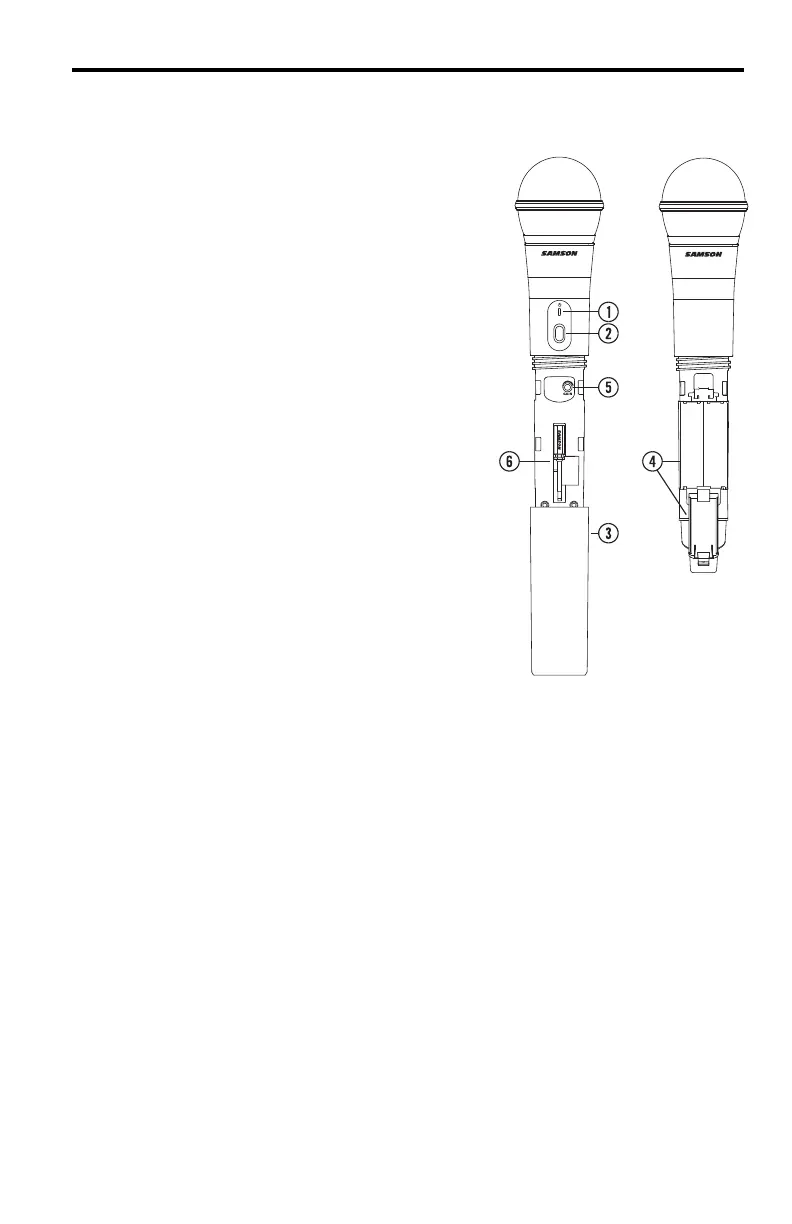

HXD1 Handheld Transmitter Callouts
