Samson Q5 User Manual

Linking Multiple Q5s

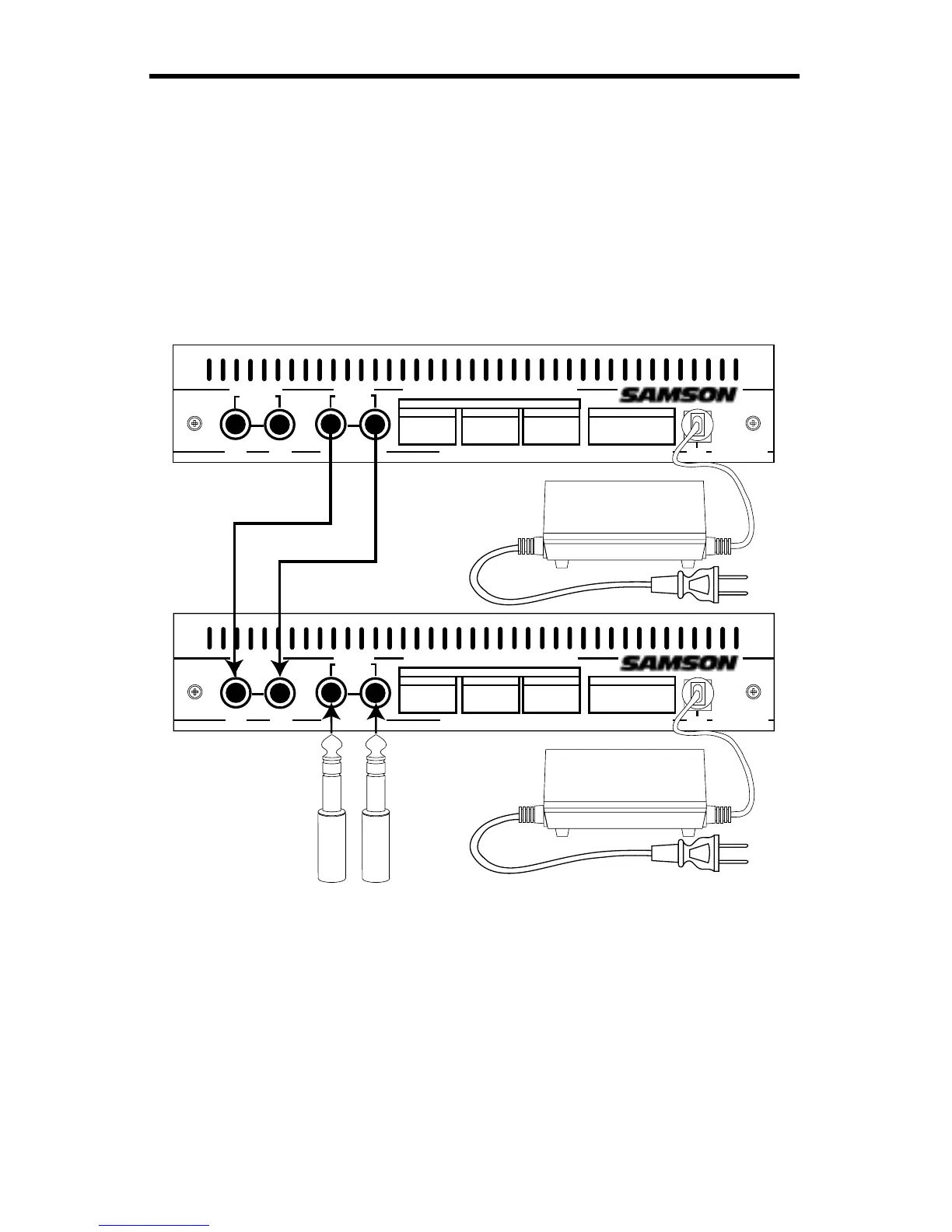

Any number of Q5s can be linked together (“daisy-chained”), allowing
you to monitor an input signal over more than five sets of headphones.
To do this, simply make a connection between one Q5’s Left/Right
Stereo Link outputs and the next one’s Left/Right Amp inputs, and insert
open-ended “dummy” 1/4" TRS plugs into the Left/Right Stereo Link
Outputs of the last Q5 in the chain, as shown in the illustration below*:
Because the Q5 Stereo Link output jacks are electronically balanced,
we recommend the use of 3-conductor cable and 1/4" TRS (Tip/Ring/
Sleeve) connectors. Even when several Q5s are linked together this
way, there is no loss of power or audio fidelity—every Channel on every
Q5 will sound just as loud and clear as if it were the only unit connected.
The status of the front-panel Stereo/Mono button affects only that unit
and has no effect on any subsequent linked units.
* Note: The AC power adapter in this illustration is not shown to scale.
10
Q5 HEADPHONE AMPLIFIER
DISTRIBUTION AMPLIFIER 500mW 600 Ω
TRS WIRING
LINK WIRING
PHONES WIRING
TIP +
RING -
SLEEVE GROUND
TIP +
RING -
SLEEVE GROUND
TIP LEFT
RING RIGHT
SLEEVE GROUND
SERIAL NUMBER
STEREO LINK
BALANCED
+14dB MAX. INPUT
BALANCED
LEFT
RIGHT
LINK
RIGHT AMP
INPUT
LEFT AMP
INPUT
SAMSON TECHNOLOGIES CORP., HICKSVILLE, NEW YORK
16VAC
ASSEMBLED IN R.O.K.
Q5 HEADPHONE AMPLIFIER
DISTRIBUTION AMPLIFIER 500mW 600 Ω
TRS WIRING
LINK WIRING
PHONES WIRING
TIP +
RING -
SLEEVE GROUND
TIP +
RING -
SLEEVE GROUND
TIP LEFT
RING RIGHT
SLEEVE GROUND
SERIAL NUMBER
STEREO LINK
BALANCED
+14dB MAX. INPUT
BALANCED
LEFT
RIGHT
LINK
RIGHT AMP
INPUT
LEFT AMP
INPUT
SAMSON TECHNOLOGIES CORP., HICKSVILLE, NEW YORK
16VAC
ASSEMBLED IN R.O.K.
“DUMMY”
OPEN-ENDED
1/4" TRS PLUGS

Samson Q5 Specifications

General

Brand	Samson
Model	Q5
Category	Amplifier
Language	English
